VULCAN+TREF85-93mm/ SINGLE139-159mm

Product Description

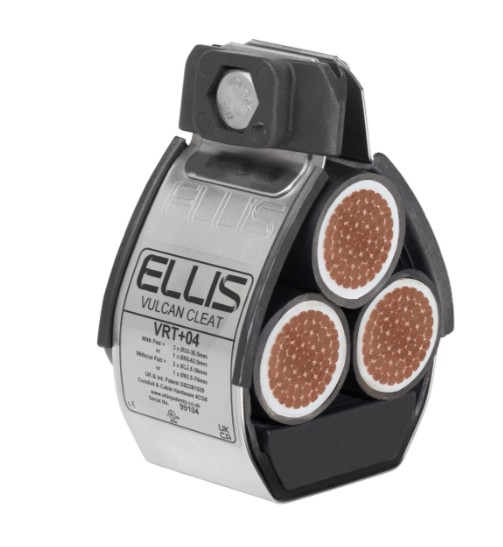

The Ellis Vulcan+™ cable cleat has been designed, developed, tested and manufactured in accordance with IEC 61914 (cable cleats for electrical installations). The cleat is available in a range of sizes with range taking ability to suit single and trefoil cable formations. The frame of the cleat is manufactured from corrosion-resistant 316L grade stainless steel, the cable is supported by a liner manufactured from a low smoke zero halogen (LSOH) material.

The closure fixings are manufactured from A4-70 grade stainless steel. Vulcan+ can be fixed to the supporting structure by either one or two M10 fixings. Non-standard cleat designs can be supplied upon request.

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Technical Specifications

Short Circuit Test @ 600mm (kA)	116/149
Short Circuit Test @ 300mm (kA)	135
Cable Range Min Dia. mm)	85
Cable Range Max Dia. mm)	93
Cable Range Min Dia. mm) SINGLE	139
Dimensions W (mm)	196
Dimensions W2 (mm)	172
Dimensions H (mm)	217
Dimensions D (mm)	54
Dimensions P (mm)	75
Fixing Holes	1 x M10
Weight	628
