VULCAN+ QUAD CABLE CLEAT 58-63mm

Product Description

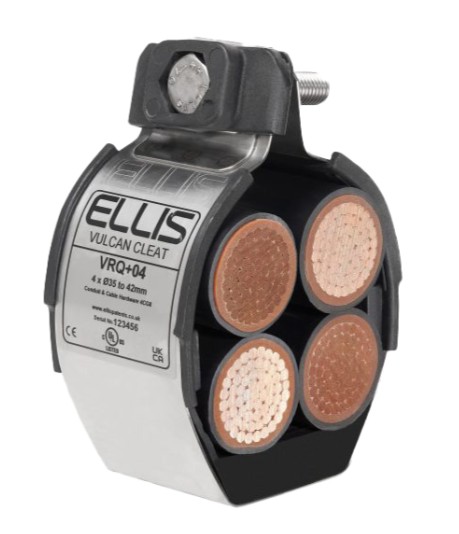

The Ellis Vulcan+™ cable cleat has been designed, developed, tested and manufactured in accordance with IEC 61914 (cable cleats for electrical installations). The cleat is suitable for quad formation. The frame of the cleat is manufactured from corrosion-resistant 316L grade stainless steel, the cable is supported by a liner manufactured from a low smoke zero halogen (LSOH) material.

The closure fixings are manufactured from A4-70 grade stainless steel. Vulcan+™ can be fixed to the supporting structure by either one or two M10 fixings. Non-standard cleat designs can be supplied upon request.

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Technical Specifications

Short Circuit Test @ 600mm (kA)	119
Short Circuit Test @ 300mm (kA)	134
Cable Range Min Dia. mm)	58
Cable Range Max Dia. mm)	63
Dimensions W (mm)	150
Dimensions H (mm)	200
Dimensions D (mm)	54
Dimensions P (mm)	50
Fixing Holes	1 x M10
Weight	499
