TWO HOLE SINGLE CLAMP 83-90

Product Description

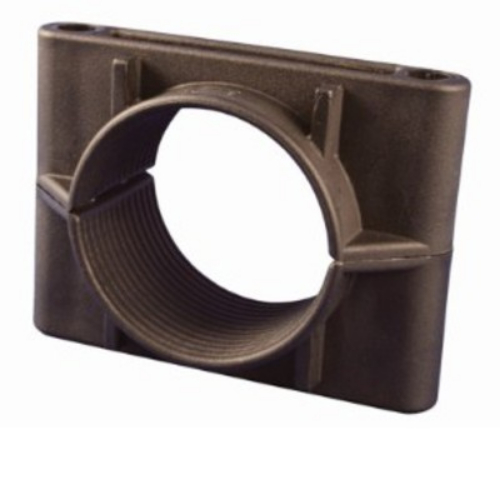

The Ellis 2F two hole cable clamps have been designed, developed, tested and manufactured in accordance with IEC 61914. The clamp is available in a range of sizes with range taking ability to suit single cables. The clamp is available in a range of sizes with range taking ability to suit single cables. The clamp is manufactured as standard in Black Polypropylene (B) or Black Flame Retardant VO Zero Halogen Phosphorus-Free UV Stabilised Nylon (LSF) or to special order in a London Underground Approved Material (LUL).
  • Add suffix for material type
  • options are as follows: B = Black Polypropelene
  • LSF = Flame Retardant
  • Zero Halogen E.G. EP2F-07 in Black Polypropelene becomes EP1F-07B. Two hole cable clamps can be supplied with a neoprene liner on request (ā€˜L’ should be added as a suffix to the part number). All liners have sidewall up-stands for secure fitting within the clamp. Add suffix BL or LSFL to include a liner

Need help choosing the right product?

Our team is here to help.

Technical Specifications

Material SuffixB/LSF/LUL
Cable Range Min Dia. mm) SINGLE83
Dimensions W (mm)143
Dimensions H (mm)115
Dimensions D (mm)75
Dimensions P (mm)119
Fixing Holes2 X M10
Pack Qty10
Weight188.3
