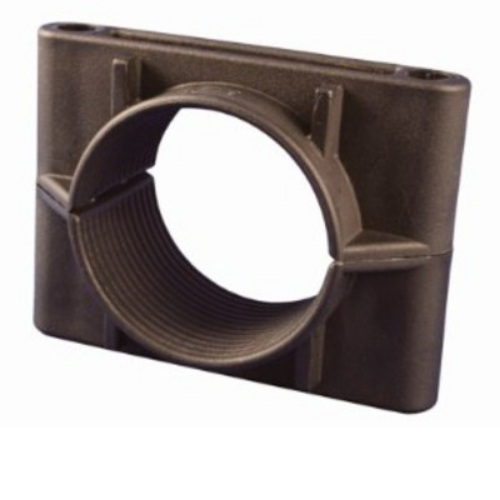

TWO HOLE SINGLE CLAMP 64-70

Product Description

The Ellis 2F two hole cable clamps have been designed, developed, tested and manufactured in accordance with IEC 61914. The clamp is available in a range of sizes with range taking ability to suit single cables. The clamp is available in a range of sizes with range taking ability to suit single cables. The clamp is manufactured as standard in Black Polypropylene (B) or Black Flame Retardant VO Zero Halogen Phosphorus-Free UV Stabilised Nylon (LSF) or to special order in a London Underground Approved Material (LUL).

Add suffix for material type
options are as follows: B = Black Polypropelene
LSF = Flame Retardant
Zero Halogen E.G. EP2F-07 in Black Polypropelene becomes EP1F-07B. Two hole cable clamps can be supplied with a neoprene liner on request (‘L’ should be added as a suffix to the part number). All liners have sidewall up-stands for secure fitting within the clamp. Add suffix BL or LSFL to include a liner

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Technical Specifications

Material Suffix	B/LSF/LUL
Cable Range Min Dia. mm) SINGLE	64
Dimensions W (mm)	130
Dimensions H (mm)	95
Dimensions D (mm)	54
Dimensions P (mm)	106
Fixing Holes	2 X M10
Pack Qty	10
Weight	116
