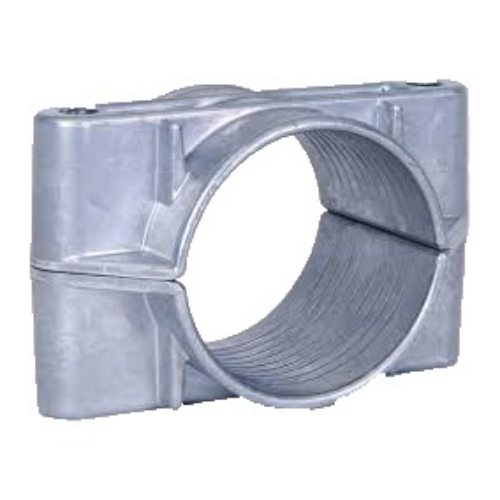

TWO HOLE CLAMP 128-135

Product Description

16 hole clamp manufactured in LM6 aluminium Accomodates 32mm-168mm dia. cables across 18 sizes Fixings are not supplied as standard but can be made avaialble in request. Short circuit and mechanically tested to IEC61914.

Add suffix for liner
as follows: L = Liner E.G. EP2A-07N with Liner becomes EP2A-07NL

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Technical Specifications

Short Circuit Test @ 600mm (kA)	113
Short Circuit Test @ 300mm (kA)	183
Cable Range Min Dia. mm) SINGLE	128
Dimensions W (mm)	203
Dimensions H (mm)	158-166
Dimensions D (mm)	125
Dimensions P (mm)	176
Fixing Holes	2 X M12
Weight	1840
