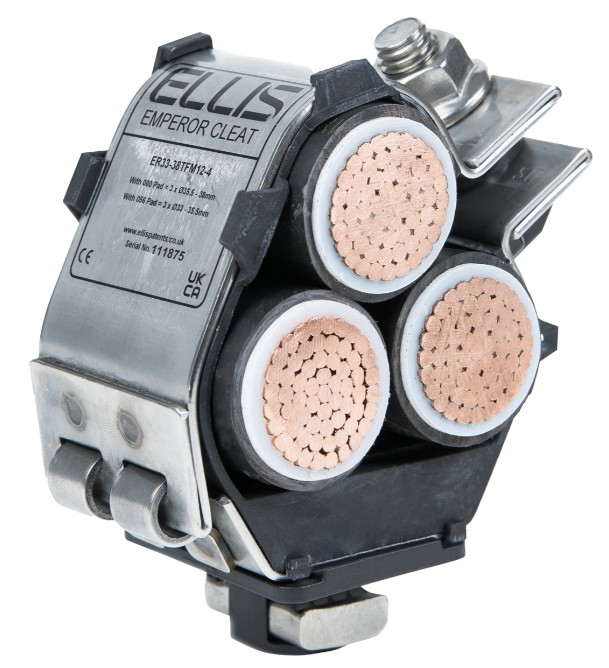

TWIST FOOT EMPEROR TREFOIL 51-58mm SS

Product Description

Cleat is supplied with all the required fixings pre-installed, this development simplifies the ordering process and significantly reduces the installation time. The Twist-Foot cleats which are supplied pre-assembled, are suitable for all installations using cable channel and ladder with inverted rungs. There are single-footed versions for cables in trefoil up to 58mm, and double-footed versions for cables with diameters ranging from 55mm to 119mm.

X denotes fixing material
options are as follows: 4 = AF stainless steel
G = Galvanised steel
Z = Zinc plated steel. E.G. A EPER19-23TFM12-X with stainless steel twist foot fixing becomes EPER19-23TFM12-4 The single version locks in place with nothing more complex than a 90-degree turn and the tightening of the integral securing bolt
while the double-footed version is secured with tabs that are simply rotated 90 degrees to engage the channel nut
before the securing bolt is tightened.

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Technical Specifications

Material Suffix	4/G/Z
Short Circuit Test @ 600mm (kA)	149
Short Circuit Test @ 300mm (kA)	195
Cable Range Min Dia. mm)	51
Cable Range Max Dia. mm)	58
Dimensions W (mm)	136
Dimensions H (mm)	131
Dimensions D (mm)	54
Weight	700
