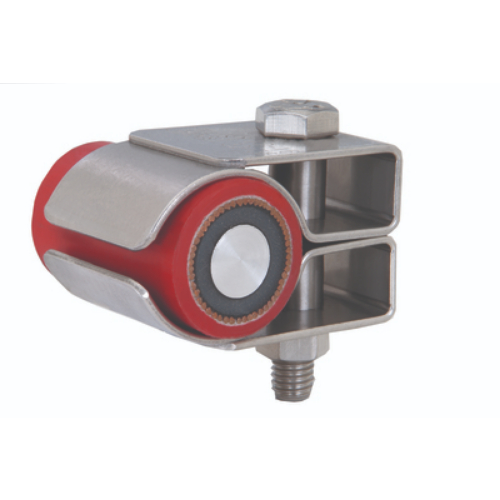

PHOENIX ONE-HOLE CABLEC LAMP 46-51mm

Product Description

The Phoenix® range is specifically designed for the installation of Fire Protection (FP) rated cables. Precision engineered from Type 316L stainless steel with single bolt fixing, Phoenix® Cable Clamps are available in 11 sizes to suit single cables from 10mm to 65mm in diameter. Tested in accordance with BS 8491 & BS 5839-1:2002, Section 26. 2d.

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Technical Specifications

Short Circuit Test @ 600mm (kA)	60
Short Circuit Test @ 300mm (kA)	31
Cable Range Min Dia. mm)	46
Cable Range Max Dia. mm)	51
Dimensions W (mm)	80
Dimensions H (mm)	59
Dimensions D (mm)	40
Dimensions P (mm)	13.7
Fixing Holes	1 X M10
Weight	225
