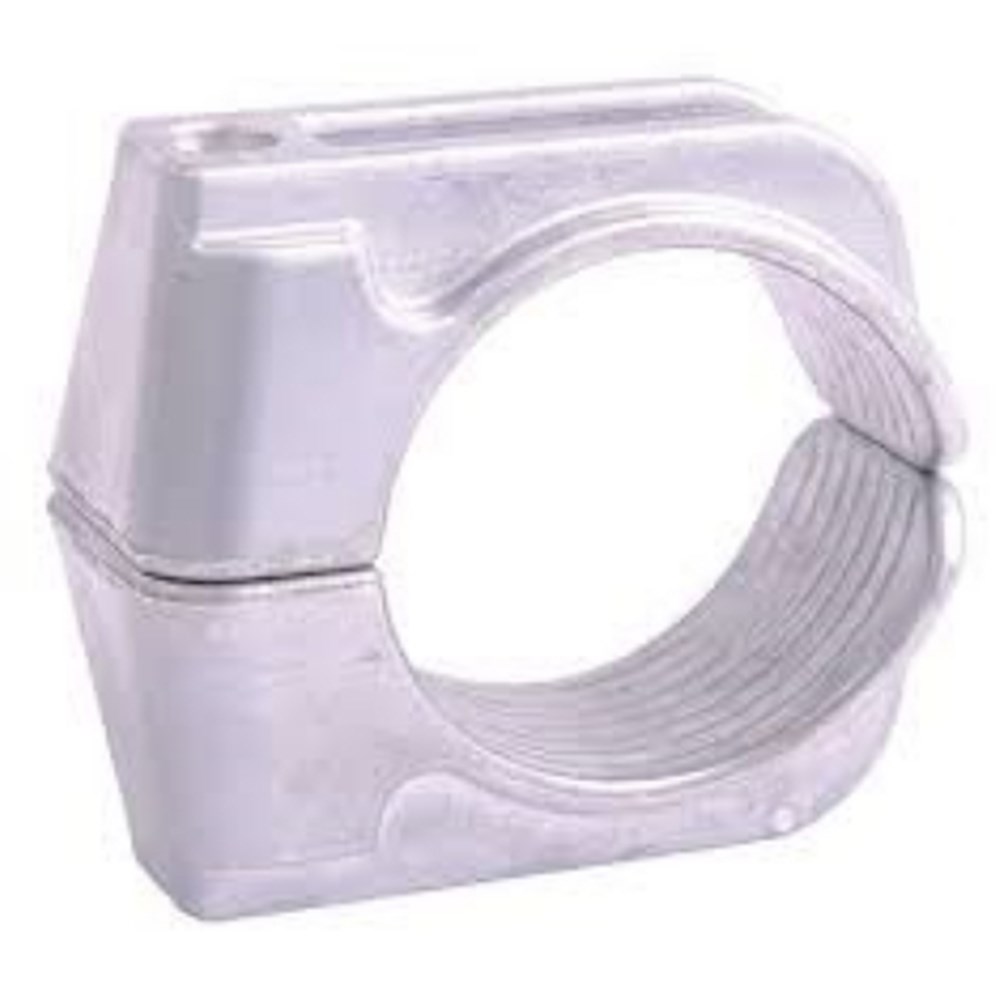

ONE HOLE SINGLE CABLE CLAMP 51-57mm

Product Description

11 hole clamp manufactured in LM6 aluminium Accomodates 10mm-57mm dia. cables across 10 sizes Fixings are not supplied as standard but can be made avaialble in request. Short circuit and mechanically tested to IEC61914.

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Technical Specifications

Short Circuit Test @ 600mm (kA)	70.8
Cable Range Min Dia. mm) SINGLE	51
Dimensions W (mm)	83.2
Dimensions H (mm)	72-78
Dimensions D (mm)	41.4
Dimensions E (mm)	13.9
Fixing Holes	1 X 10M
Weight	171
