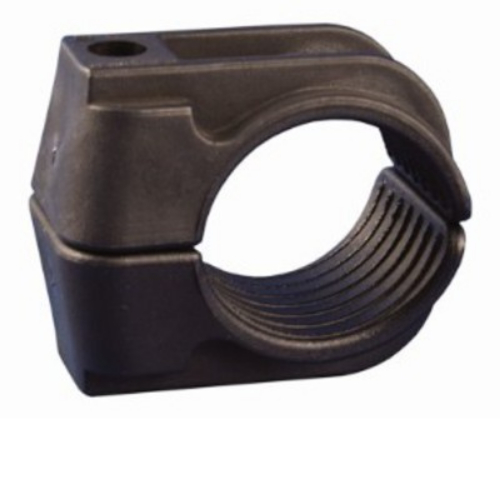

ONE HOLE SINGLE CABLE CLAMP 19-23mm

Product Description

The Ellis 1F one hole cable clamps have been designed, developed, tested and manufactured in accordance with IEC 61914. The clamp is available in a range of sizes with range taking ability to suit single cables. The clamp is manufactured as standard in Black Polypropylene (B) or Black Flame Retardant VO Zero Halogen Phosphorus-Free UV Stabilised Nylon (LSF) or to special order in a London Underground Approved Material (LUL).
  • Add suffix for material type
  • options are as follows: B = Black Polypropelene
  • LSF = Flame Retardant
  • Zero Halogen E.G. EP1F-10 in Black Polypropelene becomes EP1F-10B

Need help choosing the right product?

Our team is here to help.

Technical Specifications

Material SuffixB/LSF/LUL
Cable Range Min Dia. mm) SINGLE19
Dimensions W (mm)48.2
Dimensions H (mm)36-40
Dimensions D (mm)41.4
Dimensions E (mm)10.9
Fixing Holes1 X M10
Pack Qty100
Weight22.4
