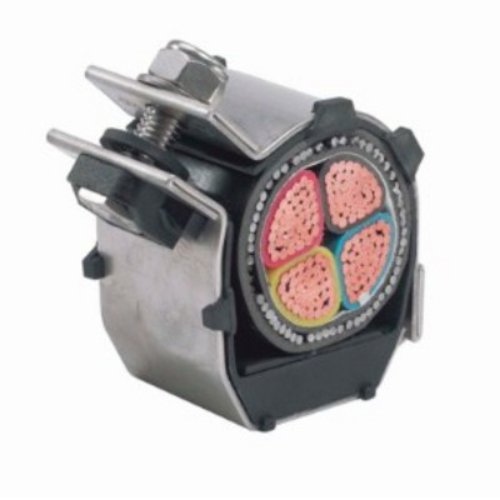

EMPEROR SINGLE CABLE CLEAT 58-66mm HEAVY DUTY COMPACT STAINLESS STEEL. FOR CABLES IN SINGLE FORMATION

Product Description

The Emperor™ cable cleat has been designed, developed, tested and manufactured in accordance with IEC 61914 (cable cleats for electrical installations). This cleat is suitable for single cable formation and comes in a range of sizes. The frame of the cleat is manufactured from 2mm corrosion-resistant grade 316L stainless steel, the cable is supported by a liner manufactured from a low smoke zero halogen (LSOH) material.

The closure fixings are manufactured from grade A4-70 stainless steel. The Emperor can be fixed to the supporting structure by either two M10 fixings or one M12 fixing. Non-standard cleat designs can be supplied upon request.

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Technical Specifications

Short Circuit Test @ 600mm (kA)	150
Short Circuit Test @ 300mm (kA)	193
Cable Range Min Dia. mm)	58
Cable Range Max Dia. mm)	66
Dimensions W (mm)	109
Dimensions H (mm)	101
Dimensions D (mm)	54
Dimensions P (mm)	25
Fixing Holes	2 X M10 + 1 X M12
Weight	500
