COLOSSUS TERFOIL 91-109mm

Product Description

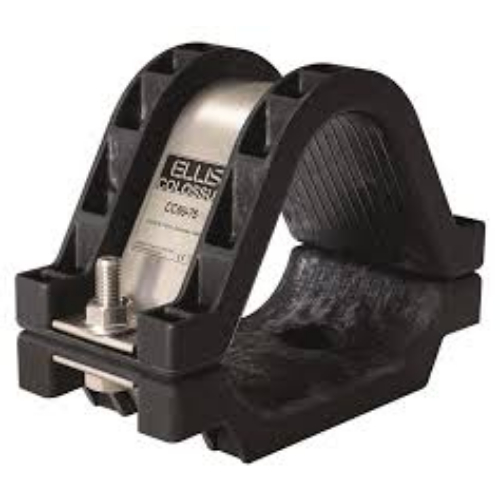

316L stainless steel frame and fixings. LSF polymeric base and top moulding protects the cable sheath. Optional saddled base available for large cleat spacing applications. Collossus range can accommodate trefoil cables from 24mm to 170mm across 14 sizes. Short circuit and mechanically tested to IEC 61925

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Technical Specifications

Cable Range Min Dia. mm)	91
Cable Range Max Dia. mm)	109
Dimensions W (mm)	273
Dimensions H (mm)	253
Dimensions D (mm)	100
Dimensions P (mm)	120
Fixing Holes	2 X M12
Weight	1900
