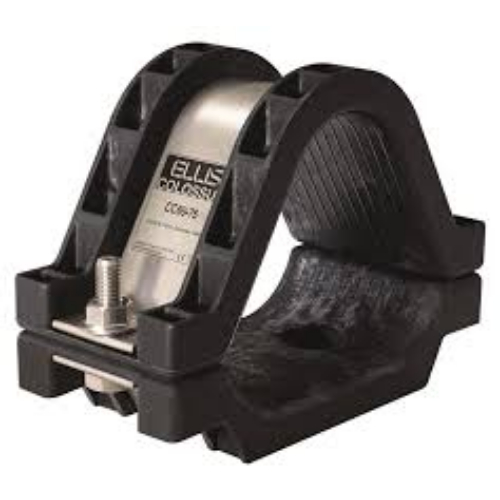

COLOSSUS TERFOIL 34-41mm

Product Description

316L stainless steel frame and fixings. LSF polymeric base and top moulding protects the cable sheath. Optional saddled base available for large cleat spacing applications. Collossus range can accommodate trefoil cables from 24mm to 170mm across 14 sizes. Short circuit and mechanically tested to IEC 61918

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Technical Specifications

Cable Range Min Dia. mm)	34
Cable Range Max Dia. mm)	41
Dimensions W (mm)	146
Dimensions H (mm)	110
Dimensions D (mm)	60
Dimensions P (mm)	25
Fixing Holes	2 X M10 +1 X M12
Weight	690
