COLOSSUS TERFOIL 105-126mm

Product Description

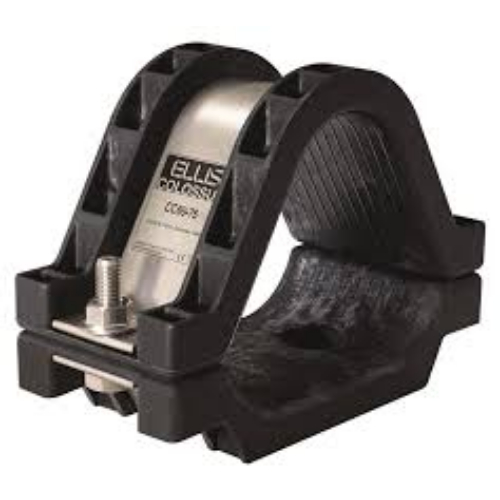

316L stainless steel frame and fixings. LSF polymeric base and top moulding protects the cable sheath. Optional saddled base available for large cleat spacing applications. Collossus range can accommodate trefoil cables from 24mm to 170mm across 14 sizes. Short circuit and mechanically tested to IEC 61926

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Technical Specifications

Cable Range Min Dia. mm)	105
Cable Range Max Dia. mm)	126
Dimensions W (mm)	306
Dimensions H (mm)	286
Dimensions D (mm)	150
Dimensions P (mm)	120
Fixing Holes	2 X M12
Weight	3030
