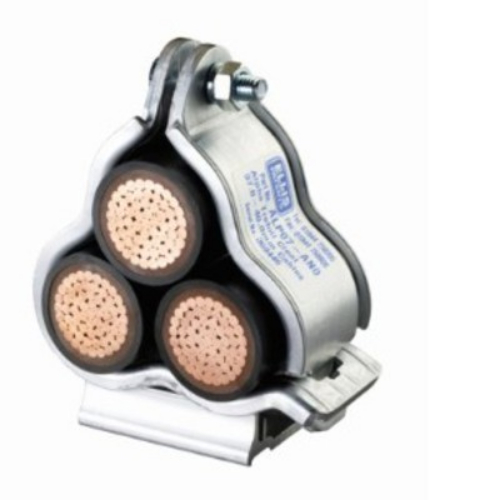

ALPHA TREFOIL CLEAT 69.0-74.6MM ALU

ALPHA TREFOIL CLEAT 69.0-74.6MM ALU

Product Description

Light Duty and compact, designed for cables in trefoil arrangement. The polymeric base is used in applications where galvanic corrosion is a concern. 6000 series aluminium frame Zinc-plated steel M8 closure fixings. Avaiable with aluminium or polymer base Polyester coated frames available on request. Short-circui and mechanically tested to IEC 61914. ABS approved and UL listed.
“
  • Add suffix for material type, options are as follows:
  • 0 = Aluminium Extruded Base, 1 = LSF Zero Halogen Base
  • E.G. EPALP01-AN in Aluminium Extruded Base EPALP01-AN0
  • EPALP01-AN in LSF Zero Halogen Base = EPALP01-AN16
“
Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

Technical Specifications

Material SuffixAN0/AN1
Short Circuit Test @ 600mm (kA)74.5
Short Circuit Test @ 300mm (kA)84.7
Cable Range Min Dia. mm)69
Cable Range Max Dia. mm)74.6
Dimensions W (mm)163
Dimensions H (mm)186
Dimensions D (mm)48.5
Fixing Holes1 X M10
Weight372
