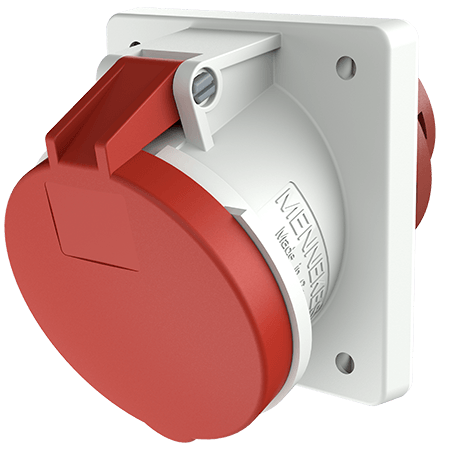

| Part Number | ME1151A |
|---|---|
| Ampere | 63 A |
| Poles | 4 p |
| Voltage | 400 V |
| Clock Position | 6 h |
| Hertz | 50-60 Hz |
| Connection Technology | Screw terminals |
| Contact | highly heat resistant contact carrier, X-CONTACT |
| Protection Type | IP44 |
| Enclosure material | |
| Fiange | 110x106 mm |
| Fixing Hole | 85x77 mm |
| Inclination | 20 ° |
| Weight | 569 g |
| Certifications | VDE |
