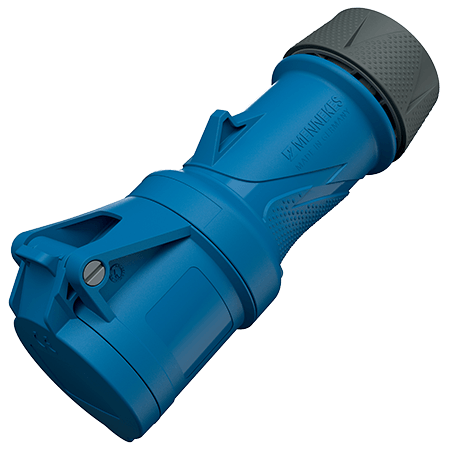

| Part Number | ME14502 |
|---|---|
| Product Series | PowerTOP Xtra |
| Ampere | 16A |
| Number of Poles | 3p |
| Clock position | 6h |
| Nominal voltage AC | 230V |
| Nominal frequency | 50 - 60 Hz |
| Protection type IP | IP54 |
| Contact carrier | standard |
| X-CONTACT | yes |
| Connection | screw terminals - ErgoCONTACT |
| Contact screw drive | PZ2, slot |
| Tightening torque connection terminal | 1.2 Nm |
| Recommended wire end treatment for supply cable connection terminal | ferrule square gasproof crimped |
| Strip length jacket | 55 mm |
| Strip length conductor PH + N | 10 mm |
| Strip length conductor PE | 10 mm |
| Pilot contact | without pilot contact |
| Conductor cross-section min. | 1 mm² |
| Conductor cross-section max. | 2.5 mm² |
| Cable kink protection | integrated in cable gland |
| Protective grommet | without protective grommet |
| Weight (net) | 200 g |
| Packaging unit | 10 pcs |
| Quantity per pallet | 880 pcs |
| EAN / identification number | 4015394293910 |
| Permanent ambient temperature | '-25 °C | 40 °C |
| Cover | PA6 blue [similar RAL 5007] | |||||||||||||||||
| Front part | PA6 blue [similar RAL 5007] | |||||||||||||||
| Hinged lid | PC blue [similar RAL 5007] | |||||||||||||
| Clamp basket | PA6 natural colour [no RAL colour code] TPE squirrel grey [similar RAL 7000] |
|
| Fastening | PA6 squirrel grey [similar RAL 7000] TPE anthracite [similar RAL 7016] |
| The material resistance overview can be found on the website in the section “Knowledge” - “Product knowledge” - “Materials”. |
| RoHS 2011/65/EU incl. 2015/863/EU | ✓ | ||||||
| POP regulation (EU) 2019/1021 | ✓ |
| Norm | DIN EN IEC 60309-2 | ||
| Declaration of Conformity | CE |
| Test label | CB Zertifikat, VDE, EAC, CQC |
