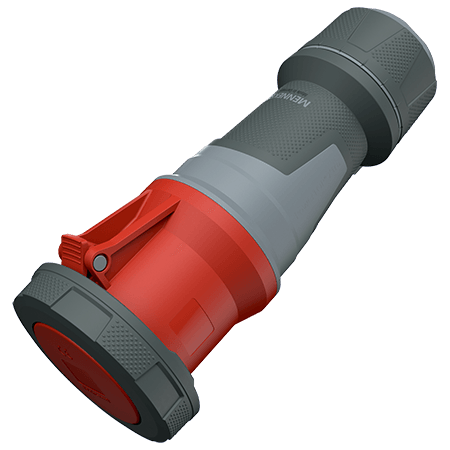

| Part Number | ME14219 |
|---|---|
| Product Series | PowerTOP Xtra |
| Ampere | 125A |
| Number of Poles | 4p |
| Clock position | 6h |
| Nominal voltage AC | 400V |
| Nominal frequency | 50 - 60 Hz |
| Protection type IP | IP67 |
| Contact carrier | standard |
| X-CONTACT | yes |
| Connection | frame terminals |
| Contact screw drive | allen key |
| Tightening torque connection terminal | 10 Nm |
| Recommended wire end treatment for supply cable connection terminal | usable with and without ferrule |
| Strip length jacket | 110 mm |
| Strip length conductor PH + N | 27 mm |
| Strip length conductor PE | 27 mm |
| Pilot contact | without pilot contact |
| Conductor cross-section min. | 25 mm² |
| Conductor cross-section max. | 50 mm² |
| Cable kink protection | integrated in cable gland |
| Protective grommet | without protective grommet |
| Weight (net) | 1554 g |
| Packaging unit | 5 pcs |
| Quantity per pallet | 160 pcs |
| EAN / identification number | 4015394241003 |
| Permanent ambient temperature | '-25 °C | 40 °C |
| Cover | PBT/PC squirrel grey [similar RAL 7000] TPE anthracite [similar RAL 7016] |
|||||||||||||||||
| Front part | PBT/PC red [similar RAL 3013] | |||||||||||||||
| PBT/PC red [similar RAL 3013] TPE black [similar RAL 9005] PBT/PC squirrel grey [similar RAL 7000] TPE anthracite [similar RAL 7016] |
||||||||||||||
| Clamp basket | PBT/PC squirrel grey [similar RAL 7000] TPE natural colour [no RAL colour code] |
|
| Fastening | PBT/PC squirrel grey [similar RAL 7000] TPE anthracite [similar RAL 7016] |
| The material resistance overview can be found on the website in the section “Knowledge” - “Product knowledge” - “Materials” |
| RoHS 2011/65/EU incl. 2015/863/EU | ✓ | ||||||
| POP regulation (EU) 2019/1021 | ✓ |
| Norm | DIN EN IEC 60309-2 | ||
| Declaration of Conformity | CE |
| Test label | CB Zertifikat, VDE, EAC, CQC |
