Receptacle Gland & Bracket (660V – 1100V) – 425 Amp Series – AV464B4 – AV414B4

Product Details
Weight	38kg
Dimensions	L 390mm W 340mm H 340mm
Compliance	Explosion protected to AS/NZS1299 & IEC60079 Series
Materials	Manganese Bronze / Brass / PTFE
IP Rating	IP66/68

Need help choosing the right product?

Our team is here to help.

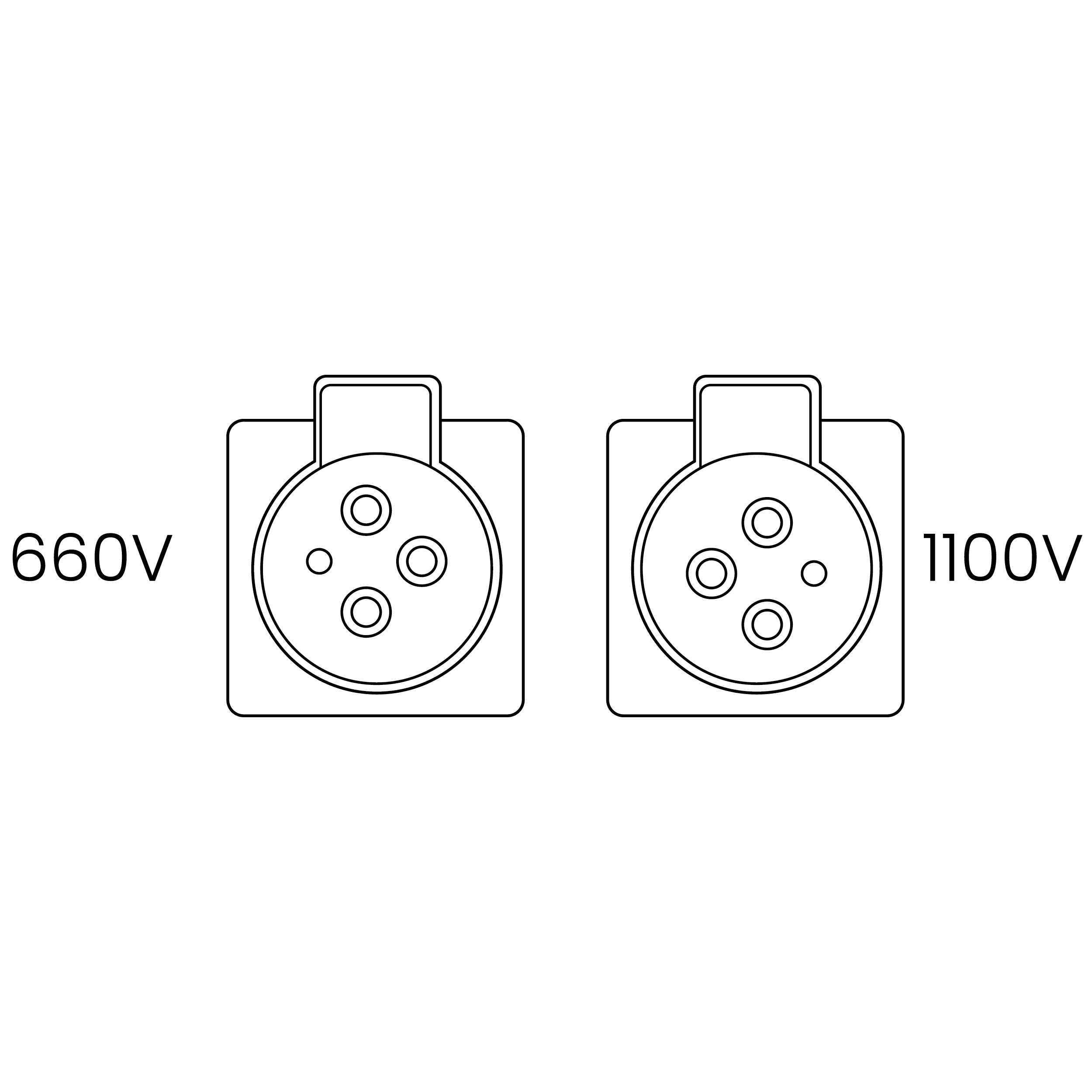

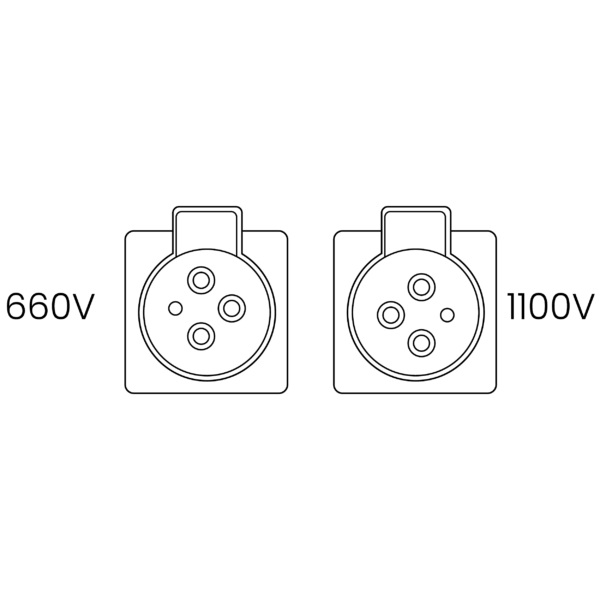

Table 1

Part Number	Description	Colour
AV464B4	660V Restrained Receptacle Gland & Bracket	Orange/Silver
AV414B4	1100V Restrained Receptacle Gland & Bracket	Blue/Silver

NB: Receptacle Gland & Bracket supplied with Pilot Thimble

Phase Thimble – c/w screw AH151026 & O-ring AI019017

Part Number	CSA	ID mm	Utilux Die No.
F-4606-1	35	8.4	38-92 Cu
F-4606-2	50	9.5	38-104 Cu
F-4606-3	70	11.2	38-115 Cu
F-4606-4	95	13.4	38-142 Cu
F-4606-5	120	15.5	38-165 Cu
F-4606-6	150	16.3	38-183 Cu
F-4606-7	185	18.4	38-200 Cu
F-4606-8	185	21.0	Solder Only

NB: CSA is indicative only. Use ID for thimble selection

Neoprene Grommets

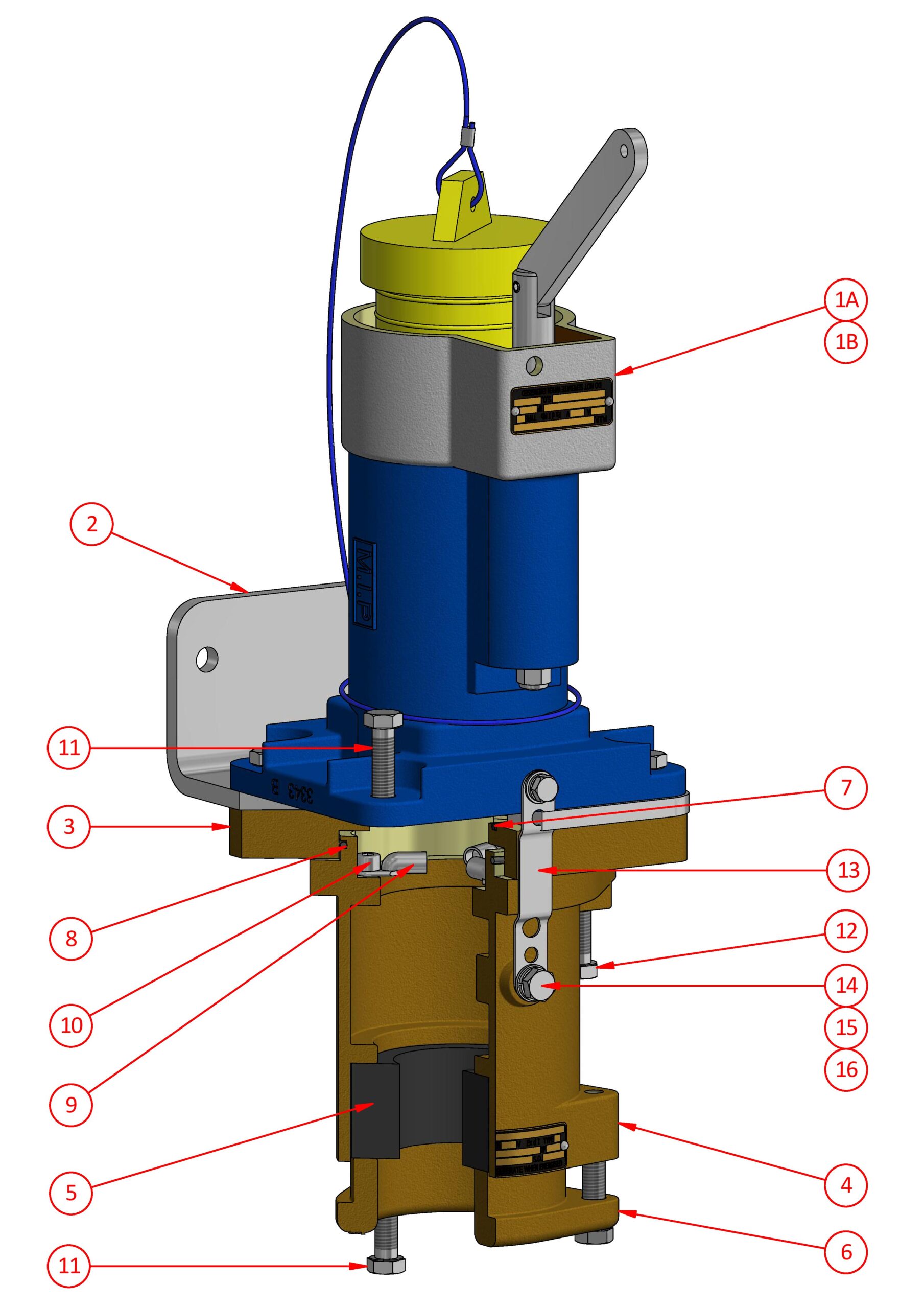

#	Part Number	Description
1A	AG464B	660V Restrained Receptacle
1B	AG414B	1100V Restrained Receptacle
2	AV3	Mounting Bracket
3		Spacer Plate c/w O-ring AI019042
4	F-3393T	No.4 TRS Cable Gland to suit 53.0-87.0mm O.D. Cable
5	See Table 3	Neoprene Grommet
6	3399B	Clamping Cap
7	AI019042	O-ring ID 101.19 x sect. 3.53
8	AI019010	O-ring ID 120.24 x sect. 3.53
9	AH017206	Earth Lug
10	AH115115	Screw M6 x 10 button head
11	AH113135	Screw M12 x 50 hex. head
12	AH113134	Screw M12 x 35 hex. head
13	201-264-1	Earth Strap
14	AH113111	Screw M10 x 16 hex. head
15	AH151011	Spring Washer M10
16	AH150011	Washer M10

NB: See AG464B – AG414B Page for Receptacle Spare Parts
