For aerial reticulation to residential and rural areas where reliability, safety and low installation costs are required. Reduction of bushfire hazards and frequent tree lopping in uncleared areas.

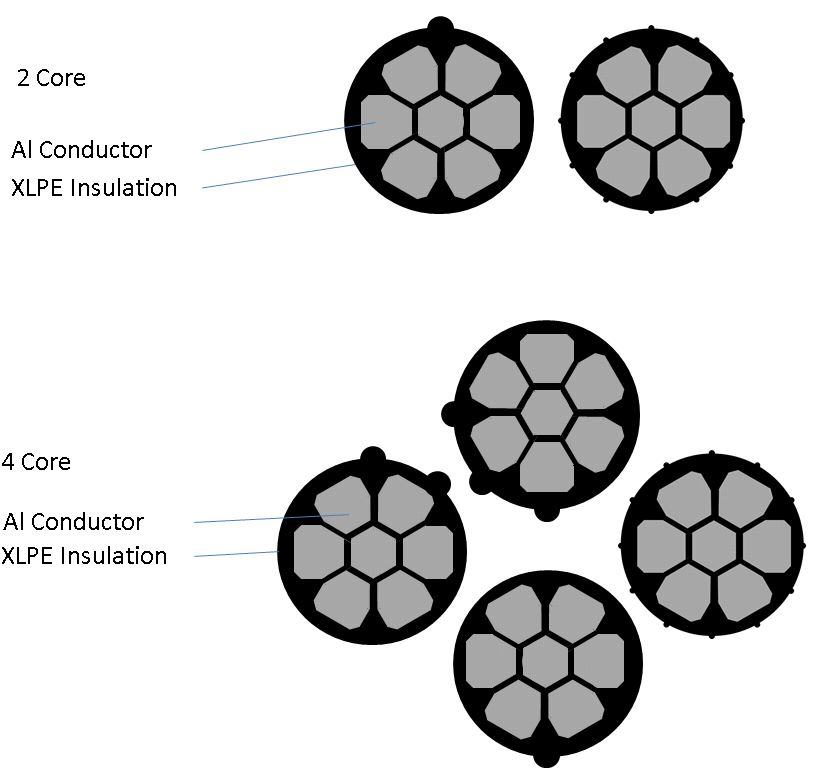

Hard Drawn Compacted Aluminium to AS/NZS 1125
X-90 XLPE to AS/NZS 3808
Black
Fully Ribbed Neutral, Ribbed phase cores
| Conductor | Cable | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | No. of Cores | Nom. Area mm² | No. & Dia. of Wires No./mm | Nom. Dia. mm | Nom. Insulation Thickness mm | Max. Dia. over Ins. mm | Min. Overall Dia. mm | Max. Overall Dia. mm | Approx. Mass Kg/100m |
| ABC25A2C | 2C | 25 | 7/2.20 | 6.0 | 1.3 | 9.2 | 17.4 | 19.3 | 20 |
| ABC35A2C | 2C | 35 | 7/2.58 | 7.0 | 1.3 | 10.3 | 19.57 | 21.6 | 26 |
| ABC50A2C | 2C | 50 | 7/2.96 | 8.0 | 1.5 | 11.9 | 22.6 | 24.9 | 35 |
| ABC95A2C | 2C | 95 | 19/2.52 | 11.3 | 1.7 | 15.9 | 30.2 | 33.3 | 68 |
| ABC25A4C | 4C | 25 | 7/2.20 | 6.0 | 1.3 | 9.2 | 21.2 | 23.4 | 40 |
| ABC35A4C | 4C | 35 | 7/2.58 | 7.0 | 1.3 | 10.3 | 23.6 | 26.1 | 52 |
| ABC50A4C | 4C | 50 | 7/2.96 | 8.2 | 1.5 | 11.9 | 27.2 | 30.1 | 70 |
| ABC70A4C | 4C | 70 | 19/2.16 | 9.8 | 1.5 | 13.6 | 31.1 | 34.4 | 96 |
| ABC95A4C | 4C | 95 | 19/2.52 | 11.6 | 1.7 | 15.9 | 36.4 | 40.32 | 135 |
| ABC120A4C | 4C | 120 | 19/2.86 | 13.0 | 1.7 | 17.5 | 40.2 | 44.3 | 166 |
| ABC150A4C | 4C | 150 | 19/3.18 | 14.4 | 1.7 | 18.9 | 43.3 | 47.8 | 202 |
