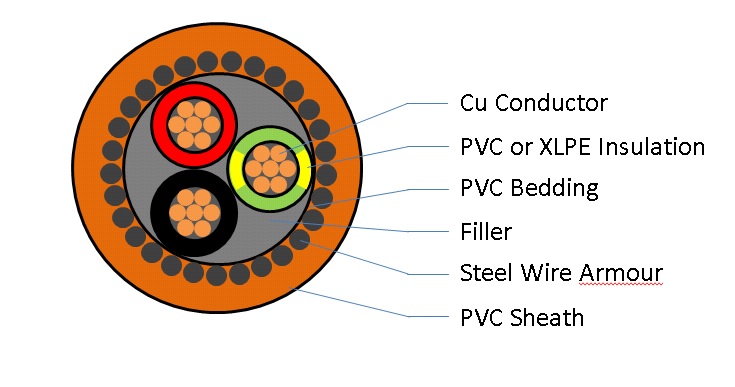

For mains, submains and subcircuits unenclosed, in conduit, buried direct or in underground ducts for buildings and industrial plants where mechanical protection is required.
Plain Annealed Copper Conductor to AS/NZS 1125
V90 PVC or X-90 XLPE to AS/NZS 3808
Core Colours: Red, Black, Green/Yellow
5V-90 PVC for PVC Range and 5V-90 for XLPE Range to AS/NZS 3808
Colours: Orange and Black (Black on request)
** items can be supplied with compacted conductors to AS/NZS 1125
** items can be supplied with alternative stranding construction to AS/NZS 1125 – 7/19 strands
** overall dimensions may vary due to compacted conductors
| Conductor | Cable | ||||||||
| Part Number | Nom. Area mm² | No. & Dia. of Wires No./mm | Nom. Dia. mm | Nom. Insulation Thickness mm | Nom. Dia. Under Armour mm | Dia. of Wire mm | Nom. Dia. Over Armour mm | Nom. Overall Dia. mm | Approx. Mass Kg/100m |
|---|---|---|---|---|---|---|---|---|---|
| SOC7050C2CE | 1.5 E (1.5) |
7/0.50 7/0.50 |
1.5 1.5 |
0.8 | 8.9 | 0.9 | 10.7 | 14.6 | 39.7 |
| SOC7067C2CE | 2.5 E (2.5) |
7/0.67 7/0.67 |
2.0 2.0 |
0.8 | 10.0 | 0.9 | 11.8 | 15.7 | 56.8 |
| SOC7085C2CE | 4.0 E (2.5) |
7/0.85 7/0.67 |
2.55 2.0 |
1.0 0.8 |
11.4 | 0.9 | 13.2 | 17.1 | 60.7 |
| SOC7104C2CE | 6.0 E (2.5) |
7/1.04 7/0.67 |
3.12 2.0 |
1.0 0.8 |
12.1 | 0.9 | 13.9 | 17.8 | 63.3 |
| Conductor | Cable | ||||||||
| Part Number | Nom. Area mm² | No. & Dia. of Wires No./mm | Nom. Dia. mm | Nom. Insulation Thickness mm | Nom. Dia. Under Armour mm | Dia. of Wire mm | Nom. Dia. Over Armour mm | Nom. Overall Dia. mm | Approx. Mass Kg/100m |
|---|---|---|---|---|---|---|---|---|---|
| SOX7135C2CE | 10 E (4.0) |
7/1.35 7/0.85 |
4.05 2.55 |
0.7 | 13.4 | 1.25 | 15.9 | 19.5 | 80.9 |
| SOX7170C2CE | 16 E (6.0) |
7/1.70 7/1.04 |
5.1 3.12 |
0.8 | 14.6 | 1.25 | 17.1 | 20.7 | 98.5 |
| SOX19135C2CE | 25 E (6.0) |
19/1.35** 7/1.04 |
6.75 3.12 |
0.9 | 17.8 | 1.6 | 21.0 | 24.6 | 144.6 |
| SOX19153C2CE | 35 E (10) |
19/1.53** 7/1.04 |
7.0 4.05 |
0.9 | 20.2 | 1.6 | 23.4 | 27.0 | 178.2 |
