| Product Details | |
|---|---|
| Weight | 8.5kg |
| Dimensions | L 170mm W 170mm H 230mm |
| Compliance | Explosion protected to IEC60079 Series |
| Materials | Manganese Bronze |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description |
|---|---|
| F-3393T | No.4 TRS Cable Gland to suit 53.0-87.0mm O.D. Cable |
| Part Number | Cable Acceptance mm |
|---|---|
| 3394-58 | 53.0-58.0 |
| 3394-61 | 56.0-61.0 |
| 3394-63 | 59.0-63.0 |
| 3394-66 | 62.0-66.0 |
| 3394-69 | 65.0-69.0 |
| 3394-72 | 68.0-72.0 |
| 3394-75 | 71.0-75.0 |
| 3394-78 | 74.0-78.0 |
| 3394-81 | 77.0-81.0 |
| 3394-84 | 80.0-84.0 |
| 3394-87 | 83.0-87.0 |

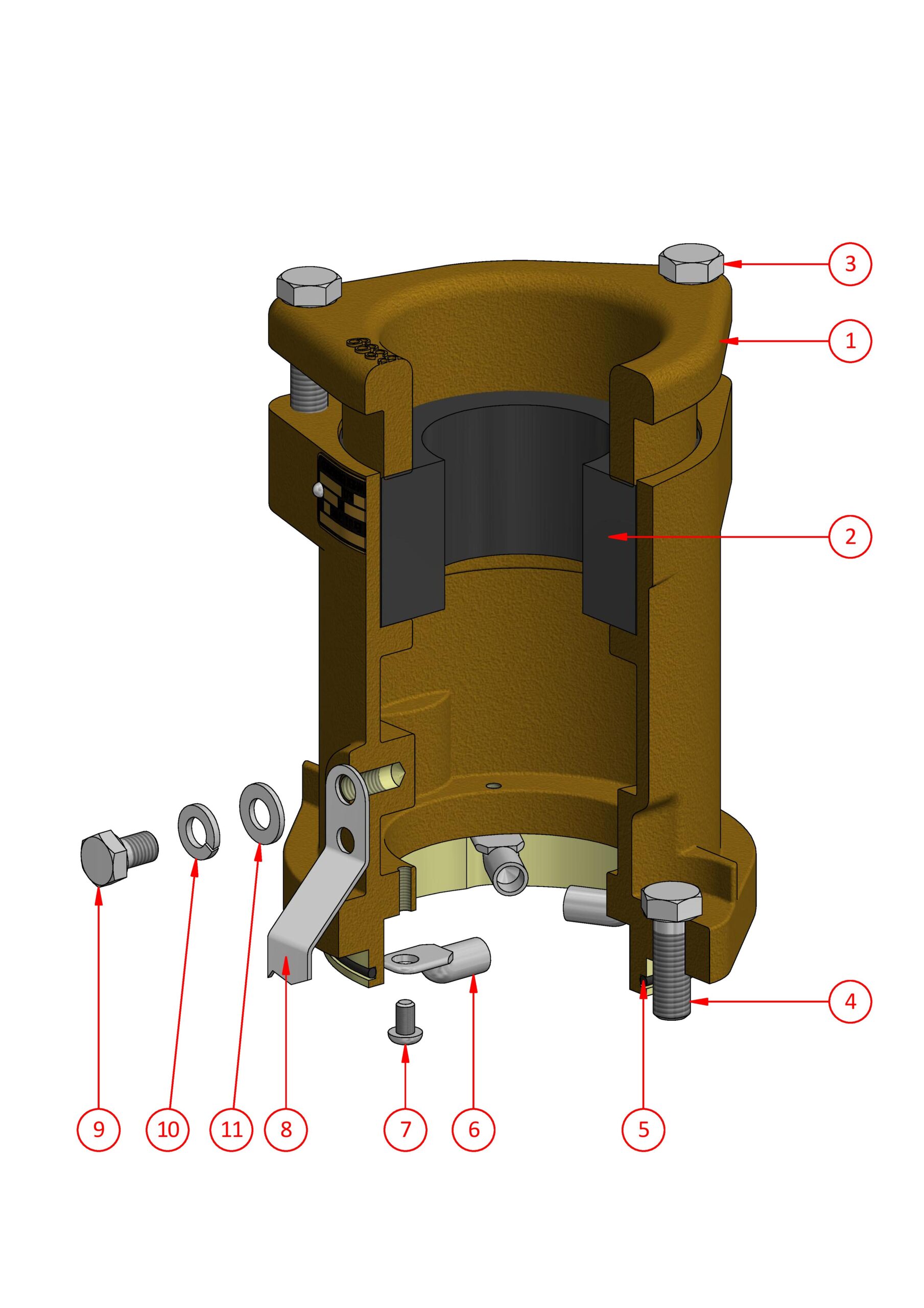

| # | Part Number | Description |
|---|---|---|
| 1 | 3399B | Clamping Cap |
| 2 | Neoprene Grommet | See Table 2 |
| 3 | AH113135 | Screw M12 x 50 hex. head |
| 4 | AH113134 | Screw M12 x 35 hex. head |
| 5 | AI019010 | O-ring ID 120.24 x sect. 3.53 |
| 6 | AH017206 | Earth Lug |
| 7 | AH115115 | Screw M6 x 10 button head |
| 8 | 201-264-1 | Earth Strap |
| 9 | AH113111 | Screw M10 x 16 hex. head |
| 10 | AH151011 | Spring Washer M10 |
| 11 | AH150011 | Washer M10 |
