| Product Details | |
|---|---|
| Weight | 15kg |
| Dimensions | L 200mm W 210mm H 280mm |
| Compliance | Explosion protected to IEC60079 Series |
| Materials | Manganese Bronze |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description |
|---|---|
| F-3222T | No.5 TRS Cable Gland to suit 65.0-101.0mm O.D. Cable |
| Part Number | Cable Acceptance mm |
|---|---|
| 4666-73S | 65.0-73.0 |
| 4666-80S | 72.0-80.0 |
| 4666-87S | 79.0-87.0 |
| 4666-94S | 86.0-94.0 |
| 4666-101S | 93.0-101.0 |

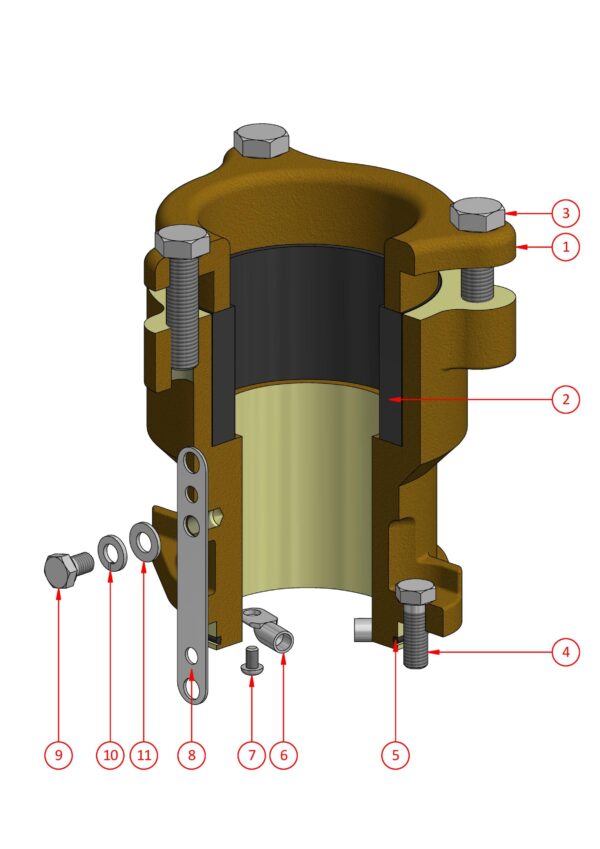

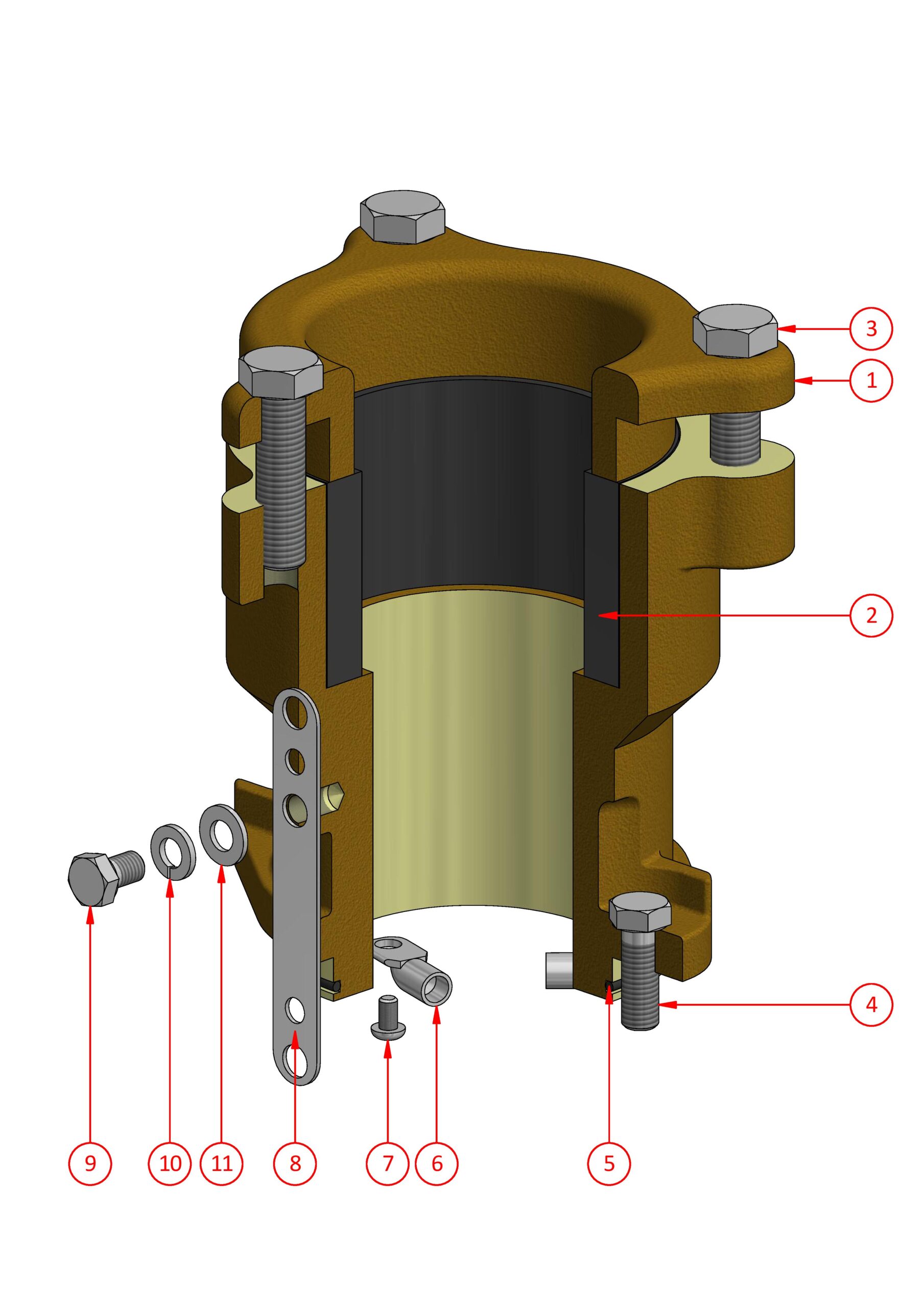

| # | Part Number | Description |
|---|---|---|
| 1 | 3225B | Clamping Cap |
| 2 | Silicone Grommet | See Table 2 |
| 3 | AH113154 | Screw M16 x 60 hex. head |
| 4 | AH113134 | Screw M12 x 35 hex. head |
| 5 | AI019010 | O-ring ID 120.24 x sect. 3.53 |
| 6 | AH017206 | Earth Lug |
| 7 | AH115115 | Screw M6 x 10 button head |
| 8 | 201-264-1 | Earth Strap |
| 9 | AH113111 | Screw M10 x 16 hex. head |
| 10 | AH151011 | Spring Washer M10 |
| 11 | AH150011 | Washer M10 |
