| Product Details | |
|---|---|
| Weight | 3.0kg |
| Dimensions | L 180mm W 180mm H 260mm |
| Compliance | Non Hazardous Area Only |
| Materials | Aluminium |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description |
|---|---|
| N-004-3 | TRS Cable Gland to suit 30.0-73.0mm O.D. Cable |
| Part Number | Cable Acceptance mm |
|---|---|
| 3054-35 | 30.0-35.0 |
| 3054-38 | 34.0-38.0 |
| 3054-41 | 37.0-41.0 |
| 3054-45 | 40.0-45.0 |
| 3054-47 | 44.0-47.0 |
| 3054-51 | 46.0-51.0 |
| 3054-54 | 50.0-54.0 |
| 3054-57 | 53.0-57.0 |
| 3054-60 | 56.0-60.0 |
| 3054-64 | 59.0-64.0 |
| 3054-67 | 63.0-67.0 |
| 3054-70 | 66.0-70.0 |
| 3054-73 | 69.0-73.0 |

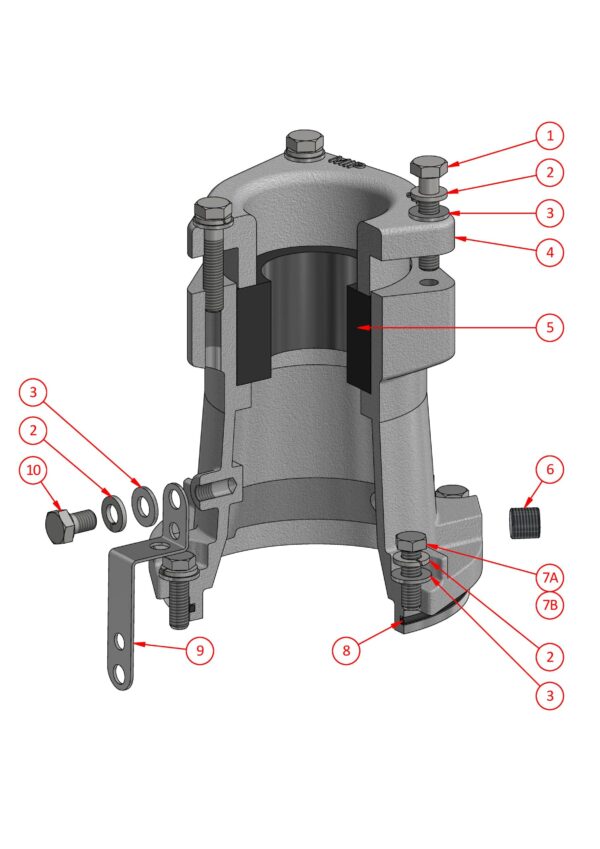

| # | Part Number | Description |
|---|---|---|
| 1 | AH113116S | Screw M10 x 50 hex. head |
| 2 | AH151011 | Spring Washer M10 |
| 3 | AH150011 | Washer M10 |
| 4 | 3576A | Clamping Cap |
| 5 | See Table 2 | Neoprene Grommet |
| 6 | AH014441 | Filler Plug |
| 7A | Screw 3⁄8" × 1 1 ⁄ 4" hex. head | |
| 7B | AH113115 | Screw M10 x 40 hex. head |
| 8 | O-ring ID 145.65 x sect. 3.53 | |
| 9 | 201-264-1 | Earth Strap |
| 10 | AH113111 | Screw M10 x 16 hex. head |
Item 7A used on old A374SA & A474SA Couplers
Item 7B used on new A374A & A474A Couplers
