Stainless Steel Restrained Plug Cable Clamp
Stainless Steel Restrained Plug Cable Clamp - Image 2

Stainless Steel Restrained Plug Cable Clamp

Order Procedure

  1. Select complete Plug from Table 1
  2. Select Phase Thimble from Table 2 (3 Required)
  3. Select Grommet from Table 3
  4. Select Cable Clamping Plates from Table 4 (2 Required )
Product Details
Weight8.0kg
DimensionsL 150mm W 150mm H 490mm
ComplianceExplosion protected to AS1299 & IEC60079 Series
MaterialsStainless Steel / Teflon / Silicone
IP RatingIP66/68
Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

Table 1

Part Number Description Colour
AF464TSC 3300V Stainless Steel Restrained Plug Cable Clamp Red/Silver
NB: Plug supplied with Pilot Thimble
Phase Thimble – c/w screw AH115147 M6 x 40 skt. Cap Screw
Part Number CSA ID mm Utilux Die No.
F-4789S-8 25 8 38-92 Cu
F-4789S-10 35 10 38-115 Cu
F-4789S-11 50 11 38-115 Cu
F-4789S-13 70 13.5 38-142 Cu
F-4789S-14 95 14.5 38-165 Cu
F-4789S-16 120 16.6 38-165 Cu
F-4789S-18 150 18.5 38-200 Cu
F-4789S-20 185 20.5 38-200 Cu
NB: CSA is indicative only. Check conductor OD to ensure fit with the thimble ID when making selection
Silicone Grommets
Part Number Cable Acceptance mm
F-4783-31 25-31
F-4783-38 31-38
F-4783-45 38-45
F-4783-52 45-52
F-4783-60 52-60
F-4783-72 60-72
F-4783-77 72-77
F-4783-82 77-82
F-4783-87 82-87
Cable Clamping Plates
Part Number Cable Acceptance mm
4782-31 25-31
4782-38 31-38
4782-45 38-45
4782-52 45-52
4782-60 52-60
4782-72 60-72
4782-71 72-77
4782-82 77-82
NB: Earth lug AH017258 supplied with Plug

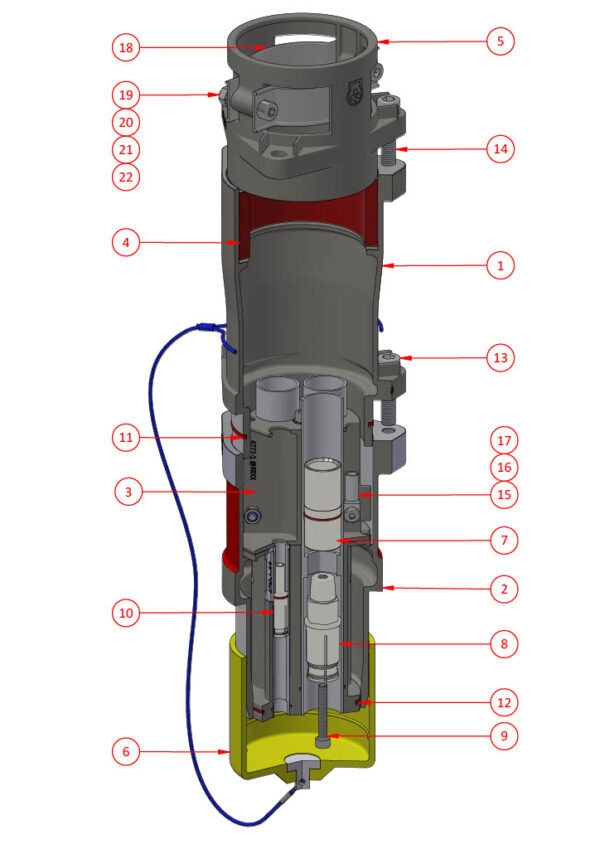

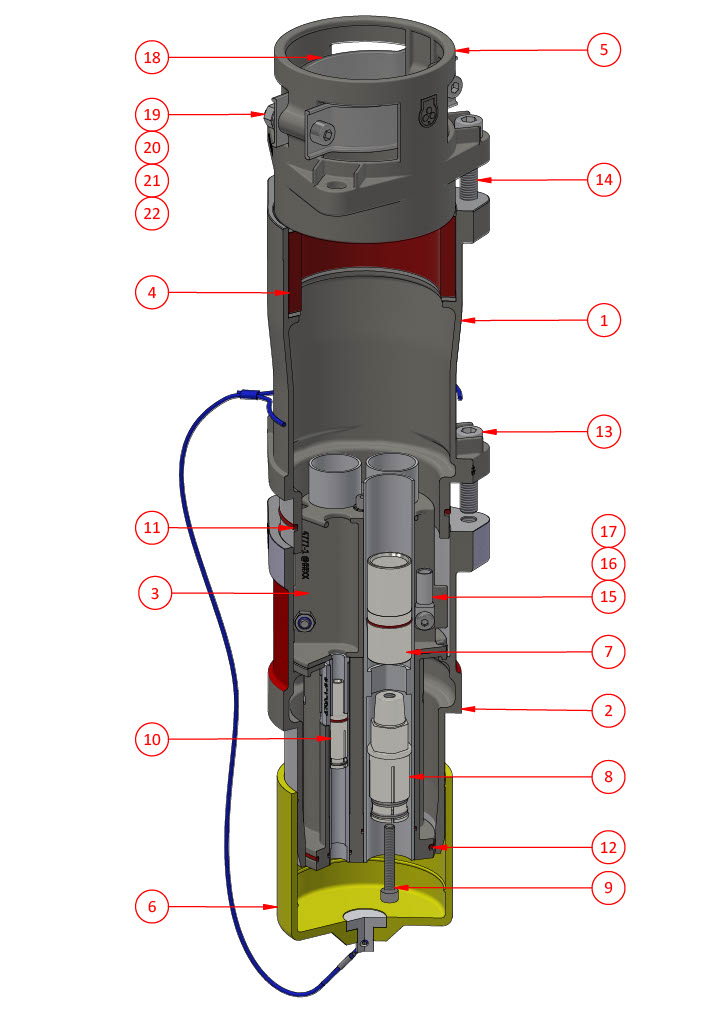

# Part Number Description
1 4780 300/ 425A Gland Body Stainless Steel
2 4719-2 300/425A Nose Cone With Slot Stainless Steel
3 F-4777S-60 300/425A 3300V 4-Pin Interior Assembly
4 F-4783# See Table 3
5 4781 300/425A Gland Clamping Cap
6 F-264L Dust Cap With Lead
7 F-4789S# See Table 2
9 F-4787 Main Socket Assembly
9 AH115147 M6 x 40 Socket Head Cap Screw
10 F-4791S-60 Pilot Socket Assembly With Teflon Insulator
11 AI019009 0-ring ID 91.67 x Sect 3.53 Silicone
12 AI019027 0-ring ID 75.87 x Sect 2.62 Silicone
13 AH115149 M10 x 40 Socket Head Cap Screw Zinc Plated
14 AH151017 M6 X 12 Button Head Screw
15 AH017258 Earth Lug 25mm2 Cable 5mm Stud
16 AH122001 M6 Nyloc Nut Stainless Steel
17 AH11711S M6 x 12 Button Head Screw Stainless Steel
18 4782# See Table 4
19 AH115143 M6 X 40 Socket Head Cap Screw
20 AH009277 5/16" x 5/8" x 18 Washer
21 AH0093S3 5/16" Square Sect Spring Washer
22 AH120010 M6 Nut Zinc Plated
