| Product Details | |
|---|---|
| Weight | 8.0kg |
| Dimensions | L 150mm W 150mm H 480m m |
| Compliance | Explosion protected to AS1299 & IEC60079 Series |
| Materials | Stainless Steel / Teflon / Silicone |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|
| AF464TSA | 660V Stainless Steel Restrained Plug 4 Pin Armoured Gland | Orange/Silver |
| AF414TSA | 1100V Stainless Steel Restrained Plug 4 Pin Armoured Gland | Blue/Silver |
| Part Number | CSA | ID mm | Utilux Die No. |
|---|---|---|---|
| F-4789S-8 | 25 | 8 | 38-92 Cu |
| F-4789S-10 | 35 | 10 | 38-115 Cu |
| F-4789S-11 | 50 | 11 | 38-115 Cu |
| F-4789S-13 | 70 | 13.5 | 38-142 Cu |
| F-4789S-14 | 95 | 14.5 | 38-165 Cu |
| F-4789S-16 | 120 | 16.6 | 38-165 Cu |
| F-4789S-18 | 150 | 18.5 | 38-200 Cu |
| F-4789S-20 | 185 | 20.5 | 38-200 Cu |
| Part Number | Cable Acceptance mm |
|---|---|
| F-4783-31 | 25-31 |
| F-4783-38 | 31-38 |
| F-4783-45 | 38-45 |
| F-4783-52 | 45-52 |
| F-4783-60 | 52-60 |
| F-4783-72 | 60-72 |
| F-4783-77 | 72-77 |
| F-4783-82 | 77-82 |
| F-4783-87 | 82-87 |

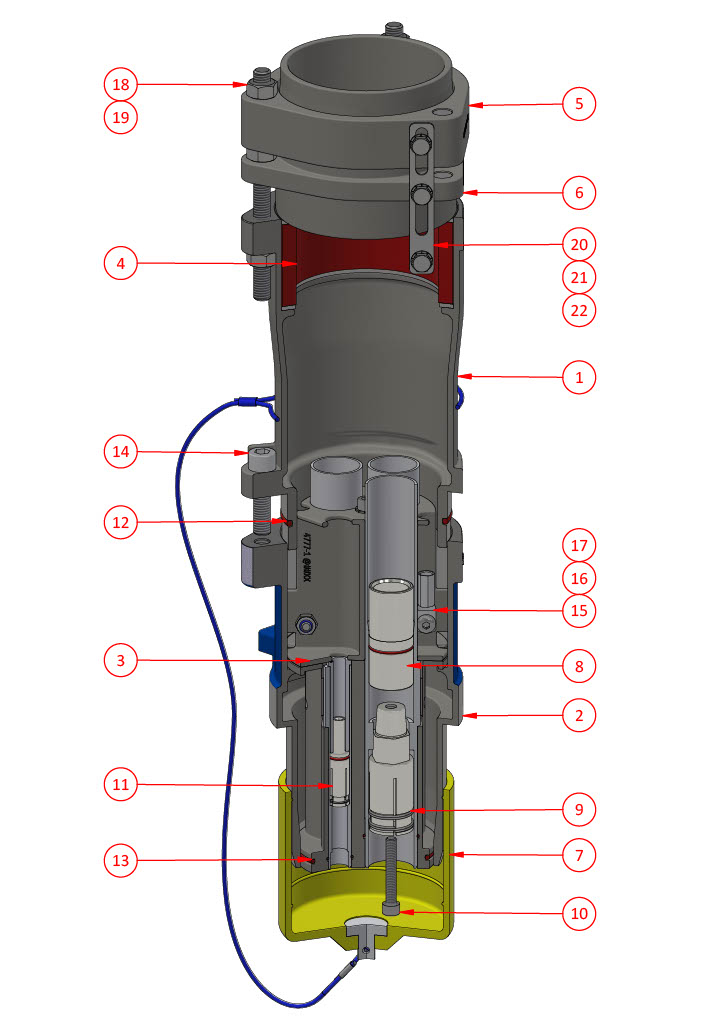

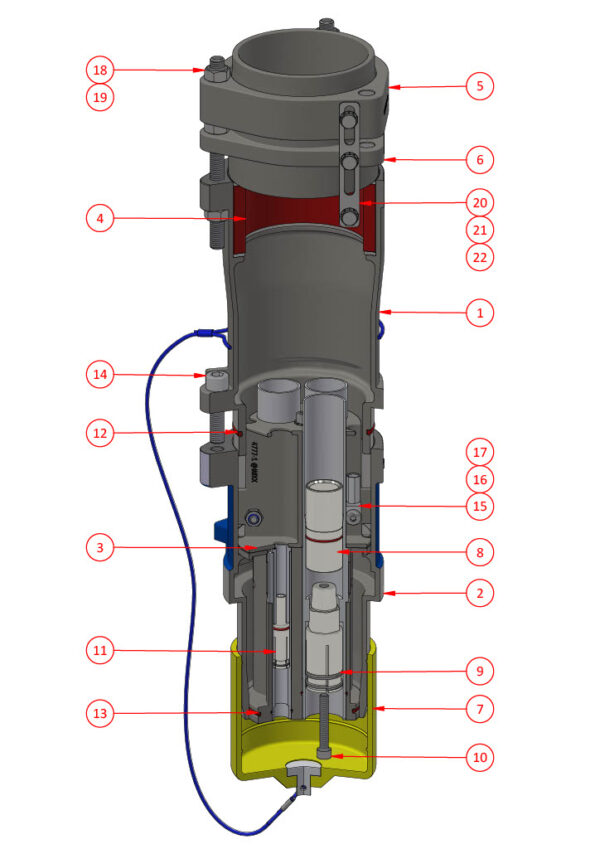

| # | Part Number | Description |
|---|---|---|
| 1 | 4780 | 30D/425A Gland Body Stainless Steel |
| 2 | 4779-1 | 300/425A Nose Cone Stainless Steel |
| 3 | F-4777S-39 | 425A 66011100V 4 Pin Interior Assembly |
| 4 | F-4783# | See Table 3 |
| 5 | 4795 | 300/425A Restrained Plug Armoured Clamp |
| 6 | 4794 | 300/425A Restrained Plug Armoured Cap |
| 7 | F-264L | Dust Cap With lead |
| 8 | F-4789S# | See Table 2 |
| 9 | F-4788 | 425A Main Socket Assembly |
| 10 | AH115147 | M6 x 40 Socket Head Cap Screw |
| 11 | F-4791S-39 | Pilot Socket Assembly With Teflon Insulator |
| 12 | AI019009 | 0-ring ID 91.67 x Sect 3.53 Silicone |
| 13 | AI019027 | 0-ring ID 75.87 x Sect 2.62 Silicone |
| 14 | AH115149 | M10 x 40 Socket Head Cap Screw Zinc Plated |
| 15 | AH017258 | Earth lug 25mm2 Cable 6mm Stud |
| 16 | AH122001 | M6 Nyloc Nut |
| 17 | AH117116 | M6 x 12 Button Head Screw |
| 18 | AH120019 | M10 Nut |
| 19 | AH190001 | M10 x 140 Threaded Rod |
| 20 | 4776 | Earth Strap Stainless Steel |
| 21 | AH152001 | M6 Ext Serrated Washer |
| 22 | AH113162 | M6 x 8 Hex Head Set Screw |
