Stainless Steel Restrained Plug – AF434TS

Product Details
Weight	8.0kg
Dimensions	L 150mm W 150mm H 450mm
Compliance	Explosion protected to AS1299 & IEC60079 Series
Materials	Stainless Steel / Teflon / Silicone
IP Rating	IP66/68

Need help choosing the right product?

Our team is here to help.

Table 1

Part Number	Description	Colour
AF464TS	3300V Stainless Steel Restrained Plug Gland Cap	Red/Silver

NB: Plug supplied with Pilot Thimble

Phase Thimble – c/w screw AH115147 M6 x 40 skt. Cap Screw

Part Number	CSA	ID mm	Utilux Die No.
F-4789S-8	25	8	38-92 Cu
F-4789S-10	35	10	38-115 Cu
F-4789S-11	50	11	38-115 Cu
F-4789S-13	70	13.5	38-142 Cu
F-4789S-14	95	14.5	38-165 Cu
F-4789S-16	120	16.6	38-165 Cu
F-4789S-18	150	18.5	38-200 Cu
F-4789S-20	185	20.5	38-200 Cu

NB: CSA is indicative only. Check conductor OD to ensure fit with the thimble ID when making selection

Silicone Grommets

NB: Earth lug AH017258 supplied with Plug

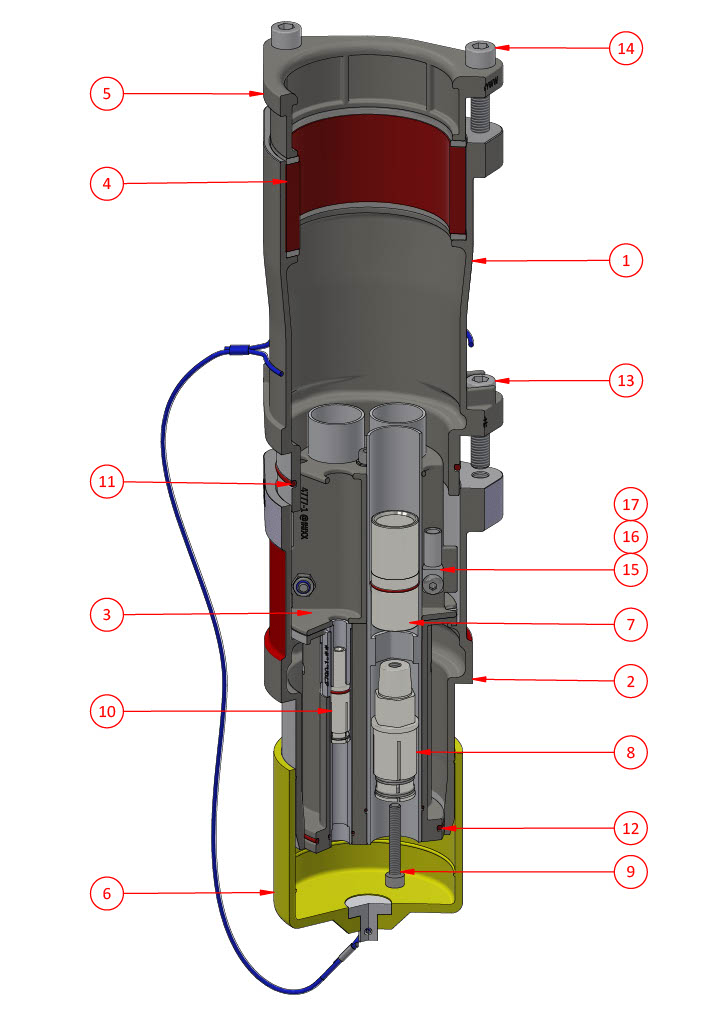

#	Part Number	Description
1	4780	300/425A Gland Body Stainless Steel
2	4779-2	300/425A Nose Cone Stainless Steel with Slot
3	F-4777S-60	425A 3300V 4-Pin Interior Assembly
4	F-4783#	See Table 3
5	4793	300/425A Gland Cap Stainless Steel
6	F-264L	Dust Cap with Lead
7	F-4789S#	See Table 2
8	F-4787	Main Socket Assy
9	AH115147	M6 x 40 Socket Head Cap Screw
10	F-4791S-60	Pilot Socket Assembly With Teflon Insulator
11	AI019009	0-ring ID 91.67 x Sect 3.53 Silicone
12	AI019027	0-ring ID 75.87 x Sect 2.62 Silicone
13	AH115149	M10 x 40 Socket Head Cap Screw Zinc Plated
14	AH151017	M10 X 50 Socket Head Cap Screw Zinc Plated
15	AH017258	Earth Lug 25mm2 Cable 6mm Stud
16	AH122001	M6 Nyloc Nut
17	AH117116	M6 x 12 Button Head Screw
