Stainless Steel Restrained Plug 6 Pin – AF416TS-AF436TS

Product Details
Weight8.0kg
DimensionsL 150mm W 150mm H 450mm
ComplianceExplosion protected to AS1299 & IEC60079 Series
MaterialsStainless Steel / Teflon / Silicone
IP RatingIP66/68

Need help choosing the right product?

Our team is here to help.

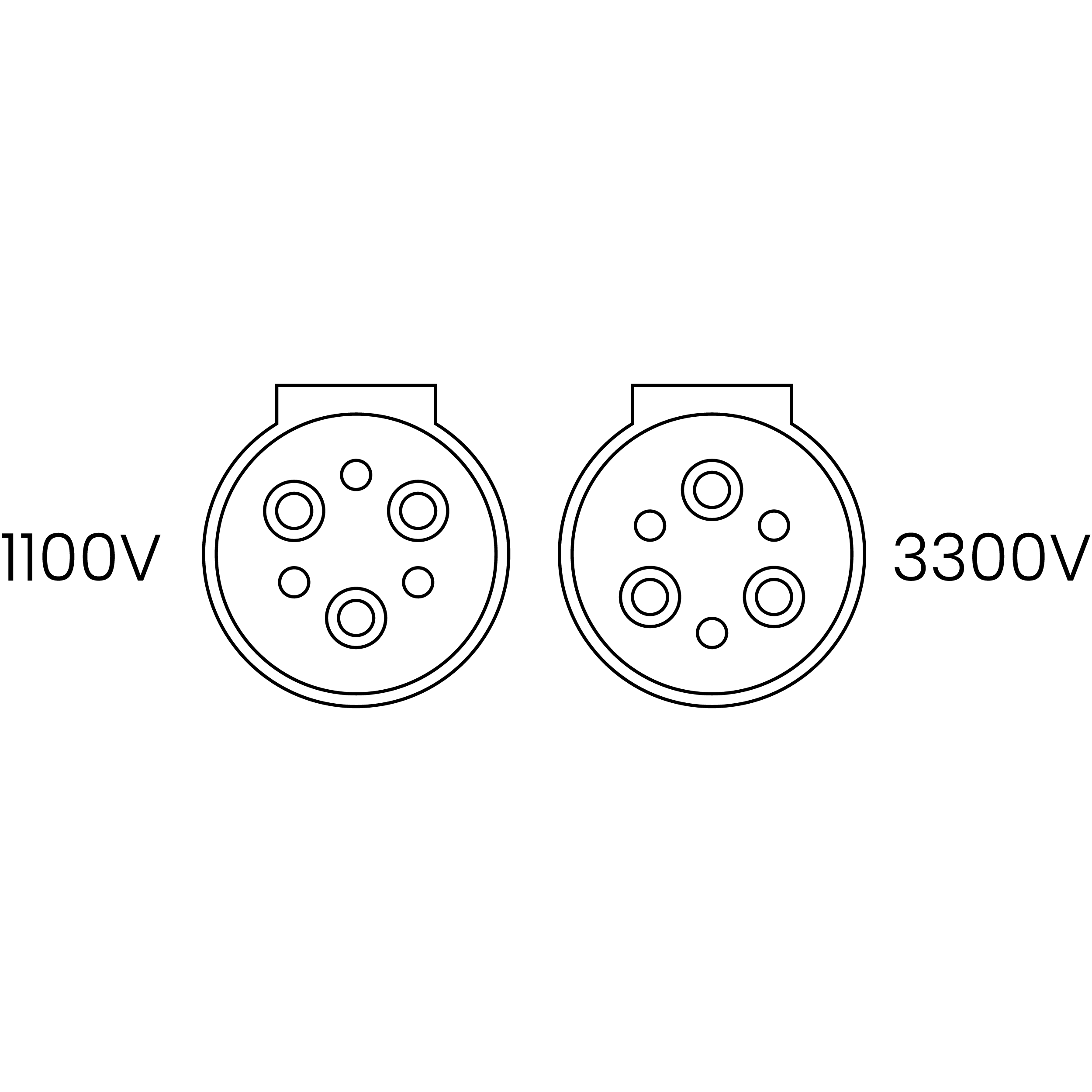

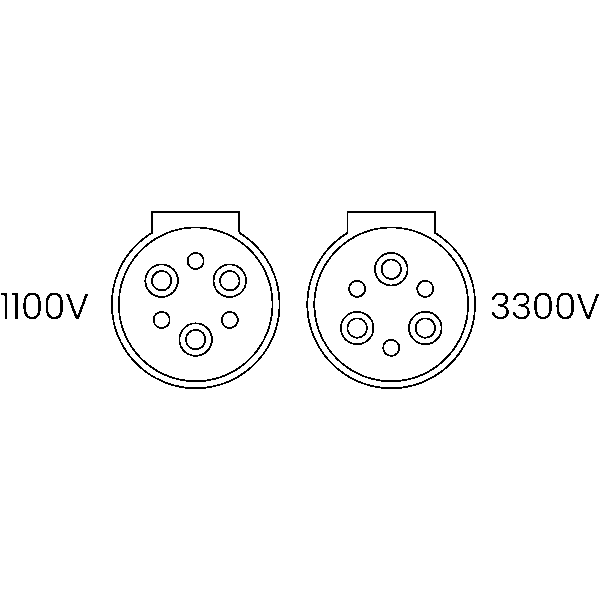

Table 1

Part Number Description Colour
AF416TS 1100V Stainless Steel Restrained Plug 6 Pin Gland Cap Blue/Silver
AF436TS 3300V Stainless Steel Restrained Plug 6 Pin Gland Cap Red/Silver
NB: Plug supplied with Pilot Thimble
Phase Thimble – c/w screw AH115147 M6 x 40 skt. Cap Screw
Part Number CSA ID mm Utilux Die No.
F-4789S-8 25 8 38-92 Cu
F-4789S-10 35 10 38-115Cu
F-4789S-11 50 11 38-115Cu
F-4789S-13 70 13.5 38-142 Cu
F-4789S-14 95 14.5 38-165Cu
F-4789S-16 120 16.6 38-165Cu
F-4789S-18 150 18.5 38-200 Cu
F-4789S-20 185 20.5 38-200 Cu
NB: CSA is indicative only. Check conductor OD to ensure fit with the thimble ID when making selection
Silicone Grommets
Part Number Cable Acceptance mm
F-4783-31 25-31
F-4783-38 31-38
F-4783-45 38-45
F-4783-52 45-52
F-4783-60 52-60
F-4783-72 60-72
F-4783-77 72-77
F-4783-82 77-82
F-4783-87 82-87
NB: Earth lug AH017258 supplied with Plug Spare

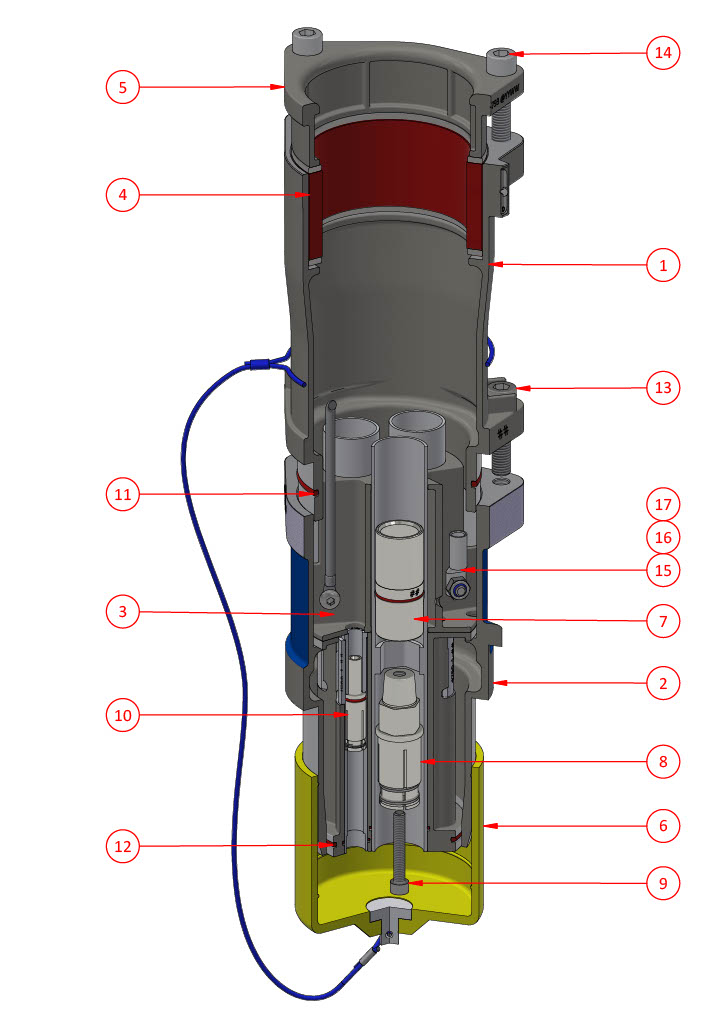

# Part Number Description
4780 300/425A Gland Body Stainless Steel
4779-2 300/425A Nose Cone Stainless Steel with Slot
F-4777S-60 300/425A 6 Pin Interior Assembly
F-4783# See Table 3
4793 300/425A Gland Cap Stainless Steel
F-264L Dust Cap with Lead
F-4789S# See Table 2
F-4787 Main Socket Assy
AH115147 M6 x 40 Socket Head Cap Screw
F-4791S-60 Pilot Socket Assembly With T efion Insulator
AI019009 0-ring ID 91.67 x Sect 3.53 Silicone
AI019027 0-ring ID 75.87 x Sect 2.62 Silicone
AH115149 M10 x 40 Socket Head Cap Screw Zinc Plated
AH151017 M10 X 50 Socket Head Cap Screw Zinc Plated
AH017258 Earth Lug 25mm2 Cable 6mm Stud
AH122001 M6 Nyloc Nut
AH117116 M6 x 12 Button Head Screw
