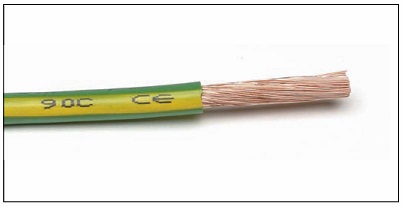

Single Core Single Insulated Flexible TPE Earth Cable 90°C 0.6/1kV

Single Core Single Insulated Flexible TPE Earth Cable 90°C 0.6/1kV

Typical Uses

Power: Switchboards, flexible droppers from busbars, flexible links, transformers, load banks, generators or anywhere green/yellow flexible earth cables are to be used.
Welding: Earth leads.

The materials used in the manufacture of these cables are RoHS Compliant.

Temperature Range: -30°C to +90°C static, -20°C to +90°C flexible
Maximum Conductor Temperature: 90°C
Rated Voltage: 0.6/1kV
Relevant Standards: AS/NZS 5000.1, AS/NZS 1125, IEC 60332-1, AS/NZS 3808
Bending Radius: 5 times diameter after install, 7 times diameter during install.

Available Colour

Green/Yellow

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

Cable Construction

  1. Conductors:
    Conductors of extra fine wires to International Standards to ensure maximum flexibility. Class 5.
  2. Insulation:
    Special TPE compound allows conductor temperature of 90°C.

UV stabilised and flame retardant.

Technical Data

Part Number Size mm² Nom. Stranding No./mm Nom. O.D. mm Conductor resistance @20°C Ω/km Approx. Cable Weight Kg/Km
AGL006 6 176/0.20 5.3 3.3 57
AGL010 10 294/0.20 6.8 1.91 92
AGL016 16 470/0.20 7.8 1.21 144
AGL025 25 726/0.20 9.9 0.78 219
AGL035 35 1040/0.20 11.0 0.554 311
AGL050 50 1499/0.20 12.8 0.386 445
AGL070 70 2165/0.20 14.6 0.272 638
AGL095 95 2745/0.20 16.9 0.206 807
AGL120 120 1554/0.30 18.6 0.161 1026
AGL150 150 1961/0.30 21.0 0.129 1292
AGL185 185 2331/0.30 23.3 0.106 1533
AGL240 240 3172/0.30 26.4 0.0801 2080
AGL300 300 4001/0.30 29.3 0.0641 2620
