Single Core Double Insulated Screened EPR/CPE Cable VSD R90°C 3.3kV

Single Core Double Insulated Screened EPR/CPE Cable VSD R90°C 3.3kV

Typical Uses

The cable is designed primarily for large Variable Speed Drives and because of the dual screening gives maximum EMV protection. Earth screens one end only.

For current ratings other than spaced from surface see table 7 AS3008.1.1 1998.

Temperature Range: -40 to +90°C static, -20 to +90°C flexing
Maximum Conductor Temperature: +90°C
Rated Voltage: 1.9/3.3kV
Current Rating: As per Table 8 of AS/NZS 3008.1.1
Sheath Colour: Black
Relevant Standards: AS/NZS 1125, IEC 60332-1, AS/NZS 3808, AS/NZS 1429.1, VDE 0250 – Part 602
The materials used in the manufacture of these cables are RoHS Compliant.
Bending Radius: 10 times diameter after installed, 12 times diameter during install
Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

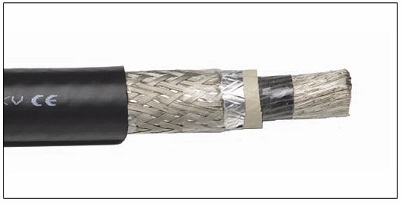

Cable Construction

  1. Conductor:
    Tinned Stranded Conductors according to VDE 0295, Class 5.
  2. Insulation:
    EPR Rubber insulation, Type 3G13.
  3. Screen:
    Tinned copper braid screened min 82% plus aluminium/mylar tape. Separator polyester tape.
  4. Sheath:
    CPE Rubber outer sheath.

UV stabilised and flame retardant.
Resistant to oil and abrasion.
CE & ROHS Compliant.

Technical Data

Part Number Size mm² Nom. Stranding No./mm N.O.D Under Sreeen Nom. O.D. mm Approx. Cable Weight Kg/Km Nom. Amps 40°C Spaced
AHVCY050BK 50 375/0.40 14.4 20.5 592 223
AHVCY070BK 70 334/0.40 15.9 23.0 828 283
AHVCY095BK 95 437/0.50 18.2 25.5 1114 341
AHVCY120BK 120 561/0.50 20.1 27.0 1460 406
AHVCY150BK 150 707/0.50 21.8 28.5 1774 470
AHVCY185BK 185 853/0.50 23.7 30.0 2170 540
AHVCY240BK 240 1127/0.50 26.7 37.5 2798 651
