Restrained Plug Large Gland – AF434T4

Product Details
Weight14kg
DimensionsL 150mm W 150mm H 430mm
ComplianceExplosion protected to AS/NZS1299 & IEC60079 Series
MaterialsManganese Bronze / PTFE / Stainless Steel
IP RatingIP66/68

Need help choosing the right product?

Our team is here to help.

Table 1

Part Number Description Colour

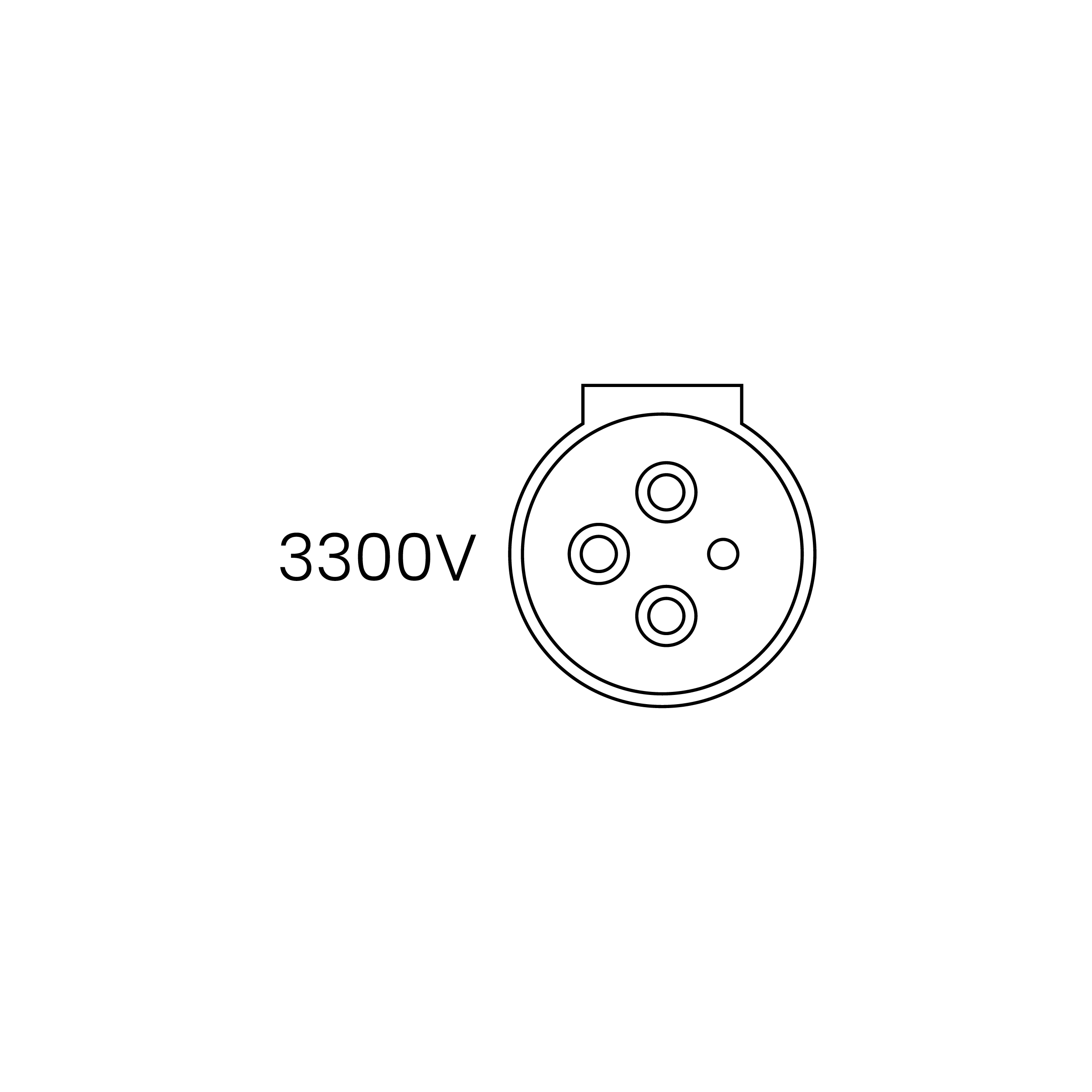

AF434T4 3300V Restrained Plug Red/Silver
NB: Plug supplied with Pilot Thimble
Phase Thimble – c/w screw AH115147 M6 x 40 skt. head
Part Number ID mm Utilux Die No.
F-4789-8 8 38-92 Cu
F-4789-10 10 38-115 Cu
F-4789-11 11 38-115 Cu
F-4789-14 14.5 38-165 Cu
F-4789-16 16.5 38-165 Cu
F-4789-18 18.5 38-200 Cu
F-4789-20 20.5 38-200 Cu
F-4789-13 13.5 38-142 Cu
Use ID for thimble selection
Part Number Cable Acceptance mm
3394-58 53.0-58.0
3394-61 56.0-61.0
3394-63 59.0-63.0
3394-66 62.0-66.0
3394-69 65.0-69.0
3394-72 68.0-72.0
3394-75 71.0-75.0
3394-78 74.0-78.0
3394-81 77.0-81.0
3394-84 80.0-84.0
3394-87 83.0-87.0

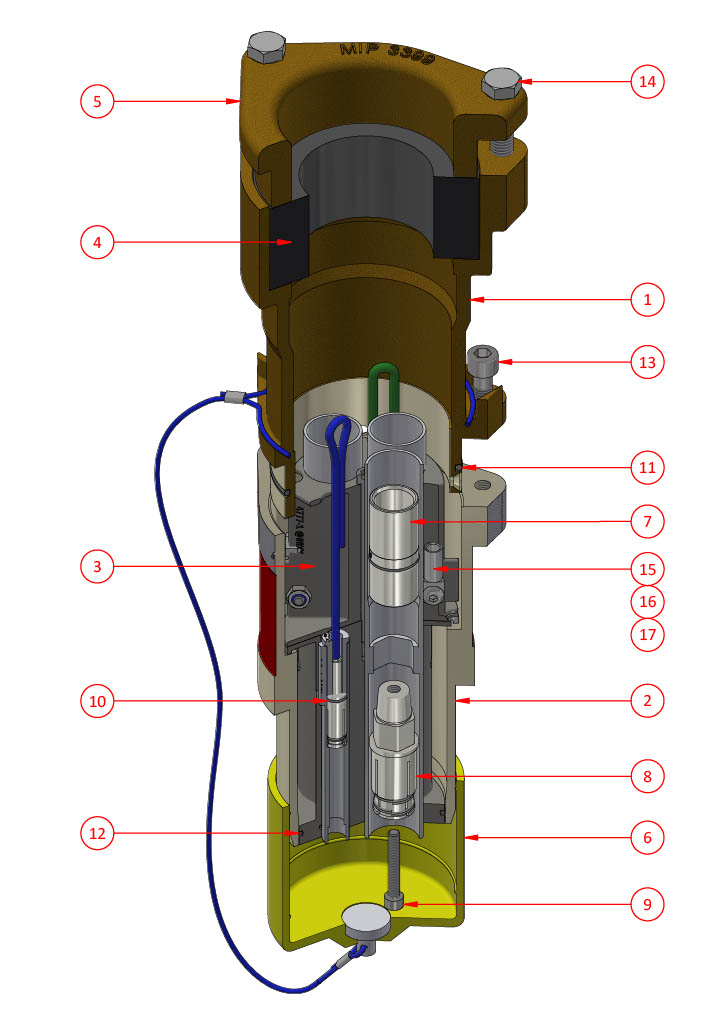

# Part Number Description
1 F-4246-434 3300V Large Gland Body c/w items 1, 5, 14, 16 & 17
2 F-3342-434T 3300V Nose Cone
3 F-4777-60 Interior Assy c/w Insulators, Pilot Assy, Earth Lugs, O-rings, Screws and Washers
4 See Table 3 Neoprene Grommet
5 3399B Clamping Cap
6 F-264L Protection Cap
7 See Table 2 Phase Thimble c/w screw & O-ring
8 F-4787 Phase Socket
9 AH115147 Screw M6 x 40 skt head
10 F-4791-60 Pilot Socket Assy c/w insulator, O-ring & lead
11 AH017258 Earth Lug
12 AH117116 Screw M6 x 12 button head
13 AH122001 M6 Nyloc Nut
14 AI019011 O-ring ID 91.67 x sect. 3.53
15 AI019056 O-ring ID 75.87 x sect. 2.62
16 AH117113 Screw M10 x 40 skt. head
17 AH113116S Screw M10 x 50 hex. head
