| Product Details | |
|---|---|
| Weight | 14kg |
| Dimensions | L 150mm W 150mm H 430mm |
| Compliance | Explosion protected to AS/NZS1299 & IEC60079 Series |
| Materials | Manganese Bronze / Neoprene / Stainless Steel |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|
| AF464R4 | 660V Restrained Plug | Orange/Silver |
| AF414R4 | 1100V Restrained Plug | Blue/Silver |
| AF464RS4 | 660V Restrained Plug (Stainless steel nose cone) | Orange/Silver |
| AF414RS4 | 1100V Restrained Plug (Stainless steel nose cone) | Blue/Silver |
| Part Number | CSA | ID mm | Utilux Die No. |
|---|---|---|---|
| F-3347-00 | 25 | 8.0 | 38-92 Cu |
| F-3347-0 | 35 | 10.0 | 38-115 Cu |
| F-3347-1 | 50 | 11.0 | 38-115 Cu |
| F-3347-2 | 70 | 13.5 | 38-142 Cu |
| F-3347-3 | 95 | 14.5 | 38-165 Cu |
| F-3347-4 | 120 | 16.6 | 38-165 Cu |
| F-3347-5 | 150 | 18.0 | 38-183 Cu |
| F-3347-6 | 185 | 20.7 | Solder Only |
| Part Number | Cable Acceptance mm |
|---|---|
| 3394-58 | 53.0-58.0 |
| 3394-61 | 56.0-61.0 |
| 3394-63 | 59.0-63.0 |
| 3394-66 | 62.0-66.0 |
| 3394-69 | 65.0-69.0 |
| 3394-72 | 68.0-72.0 |
| 3394-75 | 71.0-75.0 |
| 3394-78 | 74.0-78.0 |
| 3394-81 | 77.0-81.0 |
| 3394-84 | 80.0-84.0 |
| 3394-87 | 83.0-87.0 |
| Part Number | Cable Acceptance mm | ID mm | Utilux Die No. |
|---|---|---|---|
| F-4648 | 10 | 4.7 | 38-57 Cu |
| F-4648-1 | 16 | 5.5 | 38-63 Cu |
| F-4648-2 | 25 | 7.1 | 38-77 Cu |
| F-4648-3 | 35 | 8.4 | 38-92 Cu |

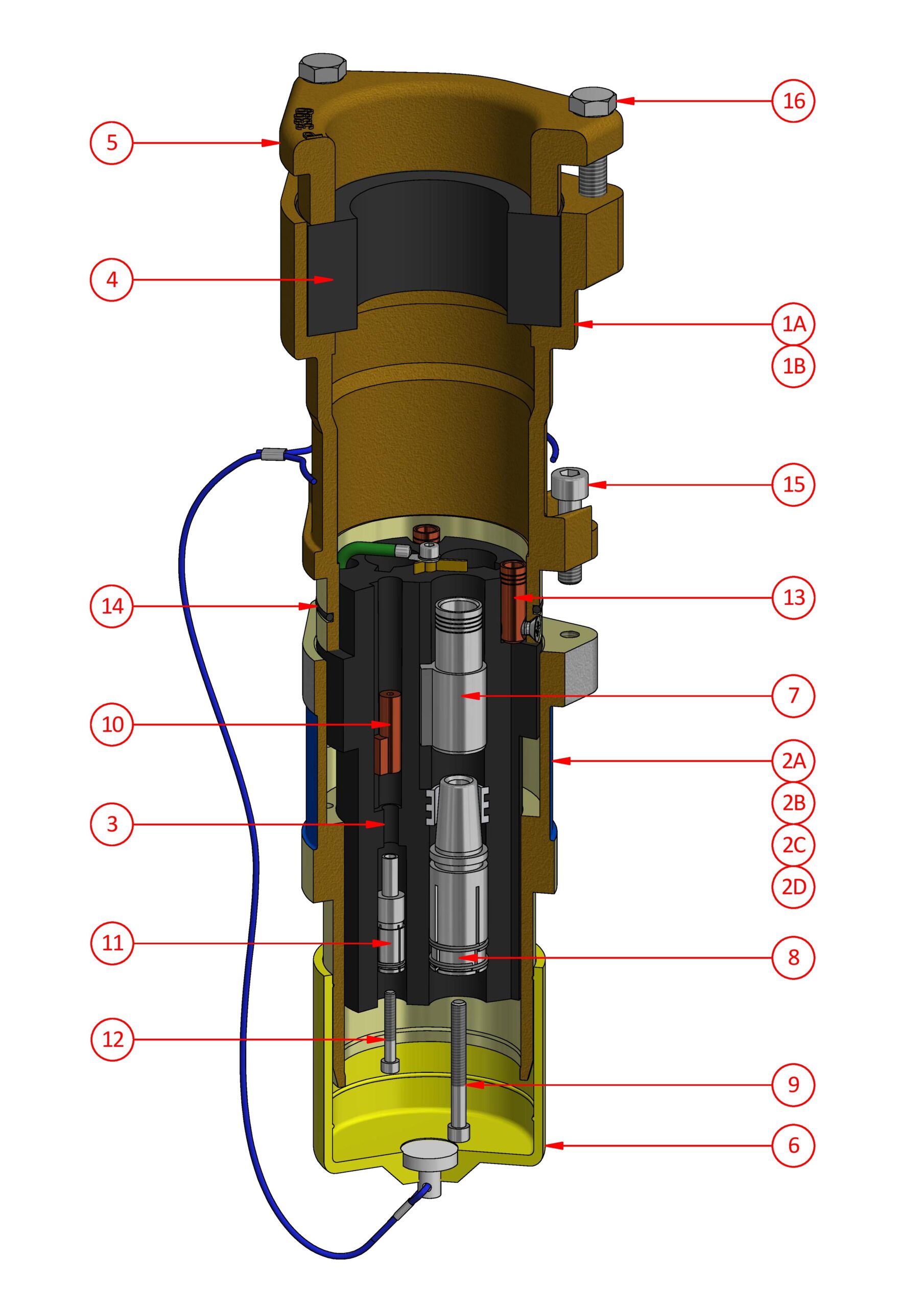

| # | Part Number | Description |
|---|---|---|
| 1A | F-4246-464 | 660V Large Gland Body c/w items 1A, 5, 14, 15 & 16 |
| 1B | F-4246-414 | 1100V Large Gland Body c/w items 1B, 5, 14, 15 & 16 |
| 2A | F-3342-464 | 660V Nose Cone |
| 2B | F-3342-414 | 1100V Nose Cone |
| 2C | F-3342-464SS | 660V Nose Cone Stainless Steel |
| 2D | F-3342-414SS | 1100V Nose Cone Stainless Steel |
| 3 | F-3340 | Interior c/w Earth Lead, Screw and Washer |
| 4 | See Table 3 | Neoprene Grommet |
| 5 | 3399B | Clamping Cap |
| 6 | F-264L | Protection Cap |
| 7 | See Table 2 | Phase Thimble |
| 8 | F-201-300-1 | 425A Phase Socket c/w O-ring AI019013 |
| 9 | AH009868 | Screw 1/4" x 2 1/4" skt. head |
| 10 | F-3589-1 | Pilot Thimble c/w screw AH009834 3/16" x 1 1/4" skt. head |
| 11 | F-3138-3 | Pilot Socket |
| 12 | AH009834 | Screw 3/16" x 1 1/4" skt. head |
| 13 | F-4648-3 | Earth Thimble c/w screw AH151028 M6 x 16 csk. head |
| 14 | AI019011 | O-ring ID 91.67 x sect. 3.53 |
| 15 | AH117113 | Screw M10 x 40 skt. head |
| 16 | AH113135 | Screw M12 x 50 hex. head |
