| Product Details | |
|---|---|
| Weight | 3kg |
| Dimensions | L 130mm W 130mm H 270mm |
| Compliance | Explosion protected to AS/NZS1299 & IEC60079 Series |
| Materials | Manganese Bronze / Neoprene / Stainless Steel |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.

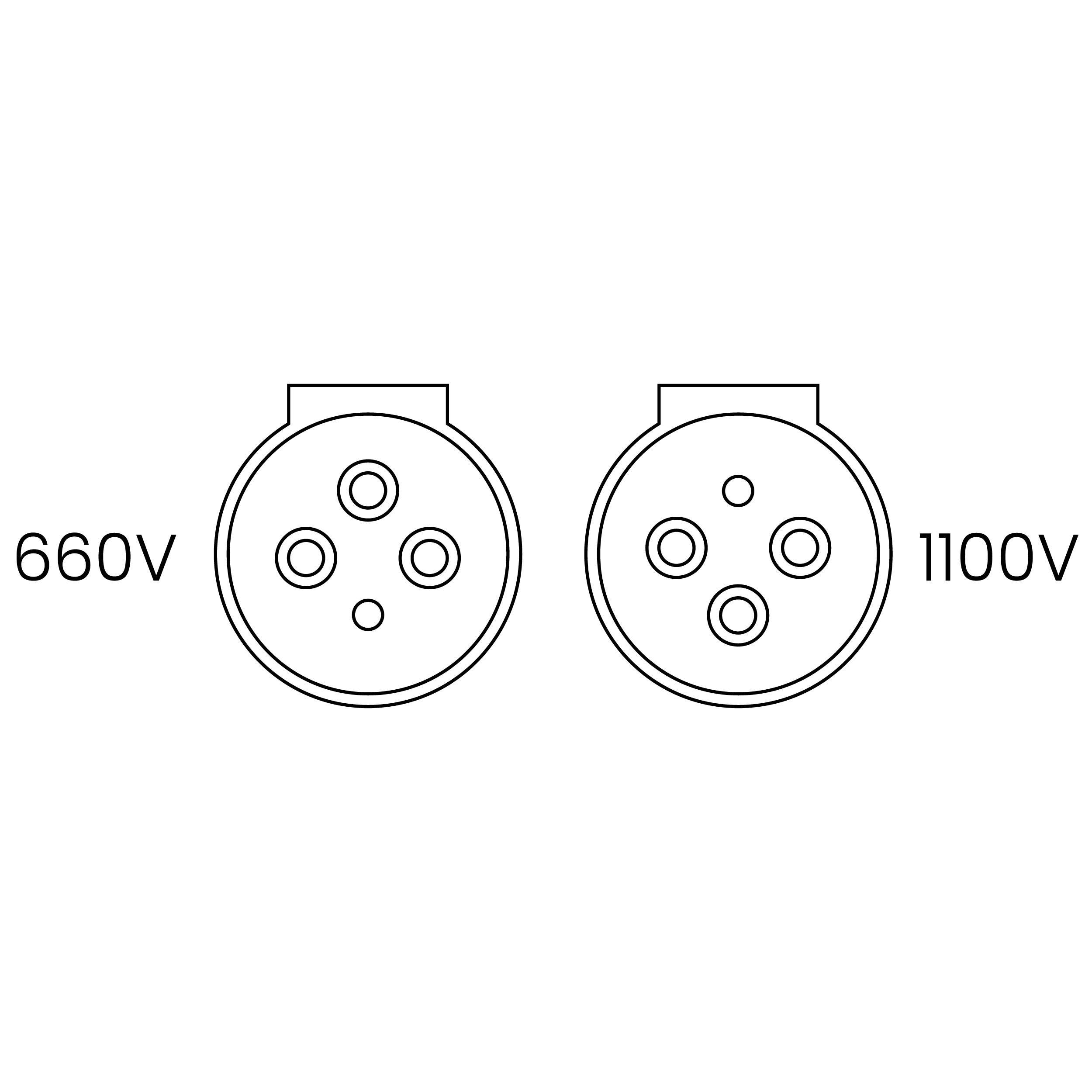

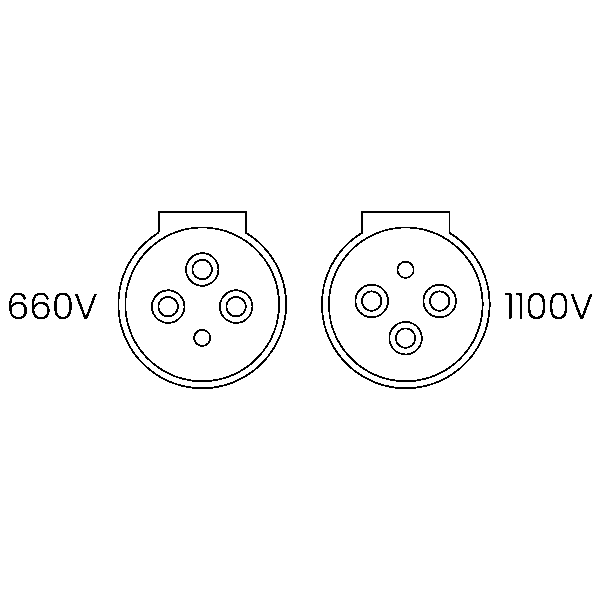

| Part Number | Description | Colour |
|---|---|---|
| AF664R | 660V Restrained Plug | Orange |
| AF614R | 1100V Restrained Plug | Blue |
| Part Number | CSA | ID mm | Utilux Die No. |
|---|---|---|---|
| F-3758 | 2.5 | 3.0 | 38-44 Cu |
| F-3758-1 | 6 | 3.7 | 38-44 Cu |
| F-3758-2 | 10 | 4.7 | 38-57 Cu |
| F-3758-3 | 16 | 5.5 | 38-63 Cu |
| F-3758-4 | 25 | 7.1 | 38-77 Cu |
| Part Number | Cable Acceptance mm |
|---|---|
| 89197-13 | 9.0-13.0 |
| 89197-16 | 12.0-16.0 |
| 89197-19 | 15.0-19.0 |
| 89197-22 | 18.0-22.0 |
| 89197-25 | 21.0-25.0 |
| 89197-29 | 24.0-29.0 |
| 89197-32 | 28.0-32.0 |
| 89197-35 | 31.0-35.0 |
| 89197-37 | 34.0-37.0 |

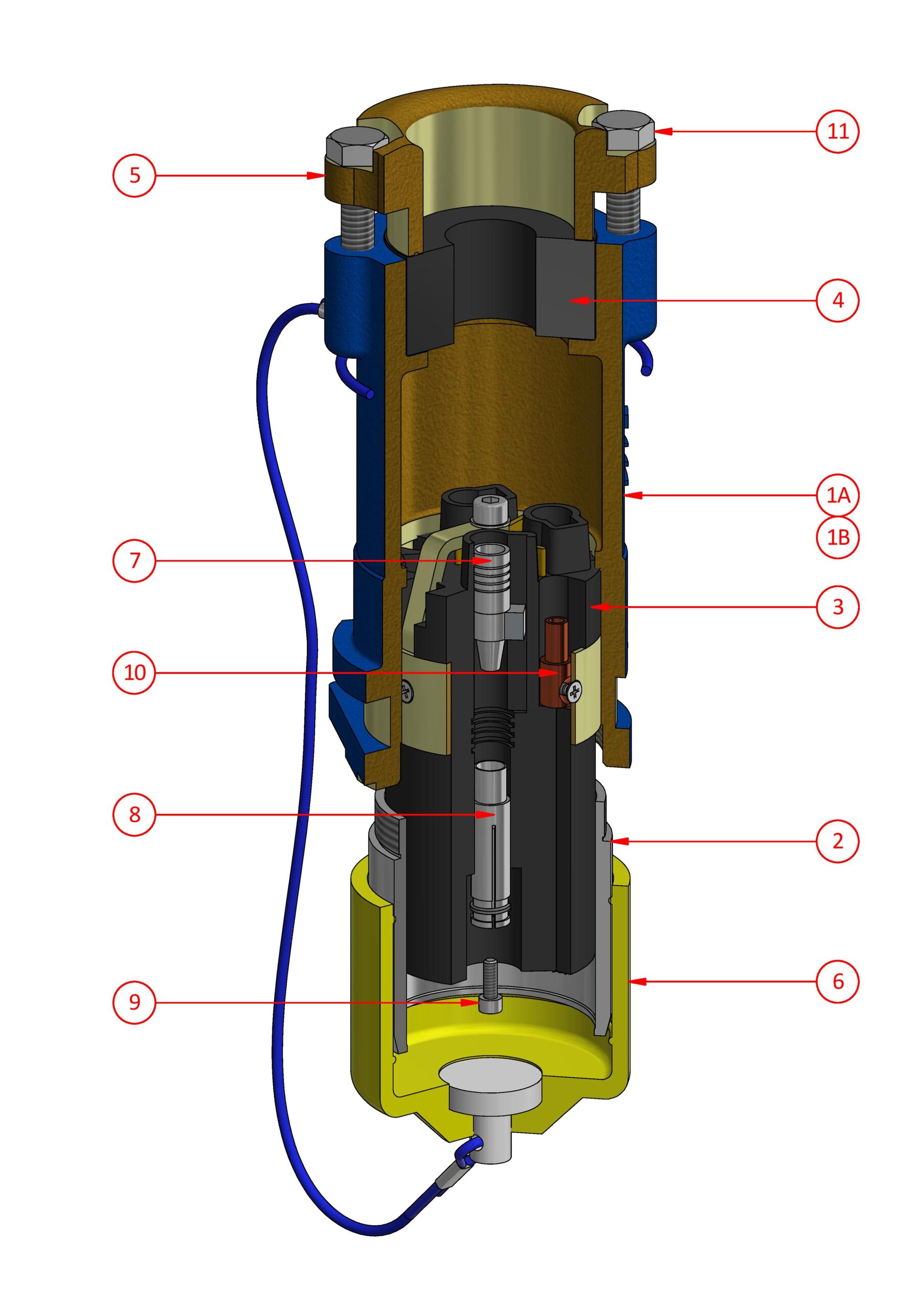

| # | Part Number | Description |
|---|---|---|
| 1A | F-4078-664 | 660V Plug Body c/w items 1A, 5 & 11 |
| 1B | F-4078-614 | 1100V Plug Body c/w items 1B, 5 & 11 |
| 2 | 4080SS | Earth Sleeve |
| 3 | F-4082-1 | Interior c/w Earth Thimble, Earth Ring, Strap, Screw & Washer |
| 4 | Neoprene Grommet | See Table 3 |
| 5 | 89207-2B | Clamping Cap |
| 6 | F-420L | Protection Cap |
| 7 | Phase or Pilot Thimble | See Table 2 |
| 8 | F-3759 | Phase or Pilot Socket |
| 9 | AH009006 | Screw 6-32 x 3/8" skt. head |
| 10 | F-4650 | Earth Thimble c/w screw AH151035 M3 x 10 csk. head |
| 11 | AH113096 | Screw M8 x 30 hex. head |
