Restrained Plug Integral Gland (660V – 1100V) – 150 Amp Series

Product Details
Weight	6kg
Dimensions	L 120mm W 120mm H 320mm
Compliance	Explosion protected to AS/NZS1299 & IEC60079 Series
Materials	Manganese Bronze / Neoprene / Stainless Steel
IP Rating	IP66/68

Need help choosing the right product?

Our team is here to help.

Table 1

Part Number	Description	Colour
AF164R	660V Restrained Plug	Orange
AF114R	1100V Restrained Plug	Blue

NB: Plug supplied with Pilot Thimble

Phase Thimble – c/w screw AH009852 3/16″ x 1/2″ skt. head

Part Number	CSA	ID mm	Utilux Die No.
F-3587-1F	25	8.0	38-92 Cu
F-3587-2F	35	9.1	38-115 Cu
F-3587-3F	50	10.2	38-115 Cu
F-3587-4F	70	12.7	38-127 Cu
F-3587-5F	95	14.3	Solder Only

NB: CSA is indicative only. Use ID for thimble selection

Neoprene Grommets

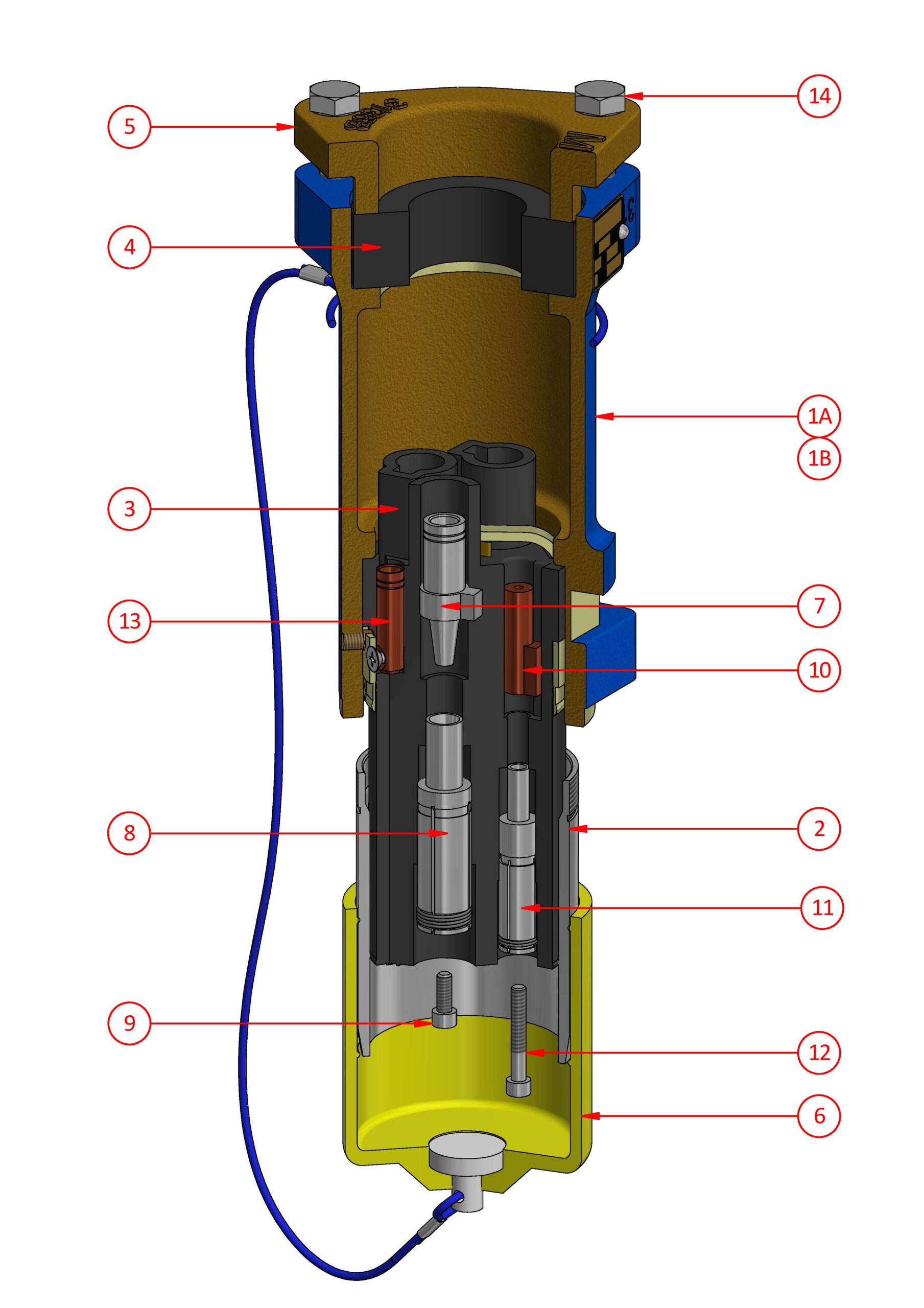

#	Part Number	Description
1A	F-3135-164	660V Plug Body c/w items 1A, 5 & 14
1B	F-3135-114	1100V Plug Body c/w items 1B, 5 & 14
2	3558SS	Earth Sleeve
3	F-3570-1	Interior c/w Earth Thimble, Earth Ring, Strap & Screw
4	See Table 3	Neoprene Grommet
5	3136B	Clamping Cap
6	F-274L	Protection Cap
7	See Table 2	Phase Thimble
8	F-3139	Phase Socket
9	AH009852	Screw 3/16" x 1/2" skt. head
10	F-3589-1	Pilot Thimble c/w screw AH009834 3/16" x 1 1/4" skt. head
11	F-3138-2	Pilot Socket c/w O-ring AI019030
12	AH009834	Screw 3/16" x 1 1/4" skt. head
13	F-4667-2	Earth Thimble c/w screw AH151040 M4 x 8 csk. head
14	AH113115	Screw M10 x 40 hex. head
