| Product Details | |
|---|---|
| Weight | 12kg |
| Dimensions | L 150mm W 150mm H 410mm |
| Compliance | Explosion protected to AS/NZS1299 & IEC60079 Series |
| Materials | Manganese Bronze / PTFE / Stainless Steel |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|
| AF434T3 | 3300V Restrained Plug | Red/Silver |
| Part Number | ID mm | Utilux Die No. |
|---|---|---|
| F-4789-8 | 8 | 38-92 Cu |
| F-4789-10 | 10 | 38-115 Cu |
| F-4789-11 | 11 | 38-115 Cu |
| F-4789-14 | 13.5 | 38-165 Cu |
| F-4789-16 | 14.5 | 38-165 Cu |
| F-4789-18 | 16.5 | 38-200 Cu |
| F-4789-20 | 18.5 | 38-200 Cu |
| F-4789-13 | 20.5 | 38-142 Cu |
| Part Number | Cable Acceptance mm |
|---|---|
| 3054-25 | 22.0-25.0 |
| 3054-31 | 24.0-31.0 |
| 3054-35 | 30.0-35.0 |
| 3054-38 | 34.0-38.0 |
| 3054-41 | 37.0-41.0 |
| 3054-45 | 40.0-45.0 |
| 3054-47 | 44.0-47.0 |
| 3054-51 | 46.0-51.0 |
| 3054-54 | 50.0-54.0 |
| 3054-57 | 53.0-57.0 |
| 3054-60 | 56.0-60.0 |
| 3054-64 | 59.0-64.0 |
| 3054-67 | 63.0-67.0 |
| 3054-70 | 66.0-70.0 |
| 3054-73 | 69.0-73.0 |
| 3054-76 | 72.0-76.0 |

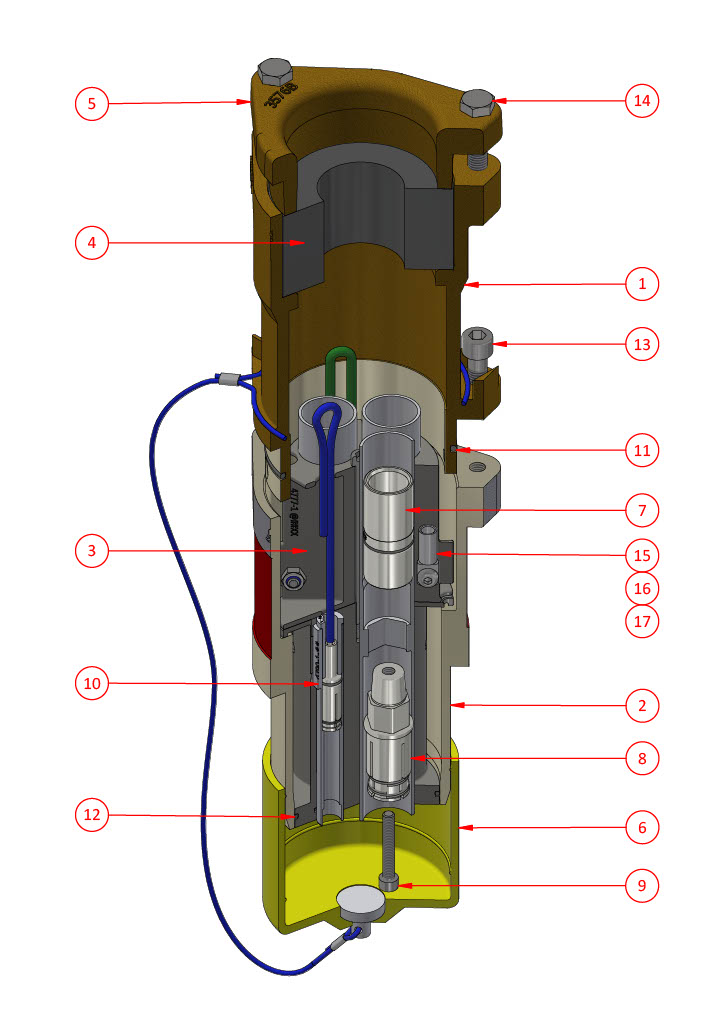

| # | Part Number | Description |
|---|---|---|
| 1 | F-3339-434 | 3300V Small Gland Body c/w items 1, 5, 14, 16 & 17 |
| 2 | F-3342-434T | 3300V Nose Cone |
| 3 | F-4777-60 | Interior Assy c/w Insulators, Pilot Assy, Earth Lugs, O-rings, Screws and Washers |
| 4 | See Table 3 | Neoprene Grommet |
| 5 | 3576B | Clamping Cap |
| 6 | F-264L | Protection Cap |
| 7 | See Table 2 | Phase Thimble c/w screw & O-ring |
| 8 | F-4787 | Phase Socket |
| 9 | AH115147 | Screw M6 x 40 skt head |
| 10 | F-4791-60 | Pilot Socket Assy c/w insulator, O-ring & lead |
| 11 | AH017258 | Earth Lug |
| 12 | AH117116 | Screw M6 x 12 button head |
| 13 | AH122001 | M6 Nyloc Nut |
| 14 | AI019011 | O-ring ID 91.67 x sect. 3.53 |
| 15 | AI019056 | O-ring ID 75.87 x sect. 2.62 |
| 16 | AH117113 | Screw M10 x 40 skt. head |
| 17 | AH113116S | Screw M10 x 50 hex. head |
