| Product Details | |
|---|---|
| Weight | 14kg |
| Dimensions | L 150mm W 150mm H 430mm |
| Compliance | Explosion protected to AS/NZS1299 & IEC60079 Series |
| Materials | Manganese Bronze / Neoprene / Stainless Steel |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|
| AF416R4 | 1100V Restrained Plug 6 Pin | Blue/Silver |
| AF436R4 | 3300V Restrained Plug 6 Pin | Red/Silver |
| AF416RS4 | 1100V Restrained Plug 6 Pin (Stainless steel nose cone) | Blue/Silver |
| AF436RS4 | 3300V Restrained Plug 6 Pin (Stainless steel nose cone) | Red/Silver |
| Part Number | CSA | ID mm | Utilux Die No. |
|---|---|---|---|
| F-3962-1 | 35 | 10.0 | 38-115 Cu |
| F-3962-2 | 50 | 11.0 | 38-115 Cu |
| F-3962-3 | 70 | 13.5 | 38-142 Cu |
| F-3962-4 | 95 | 14.5 | 38-165 Cu |
| F-3962-5 | 120 | 16.6 | 38-165 Cu |
| F-3962-6 | 150 | 18.0 | 38-183 Cu |
| F-3962-7 | 185 | 20.7 | Solder Only |
| Part Number | Cable Acceptance mm |
|---|---|
| 3394-58 | 53.0-58.0 |
| 3394-61 | 56.0-61.0 |
| 3394-63 | 59.0-63.0 |
| 3394-66 | 62.0-66.0 |
| 3394-69 | 65.0-69.0 |
| 3394-72 | 68.0-72.0 |
| 3394-75 | 71.0-75.0 |
| 3394-78 | 74.0-78.0 |
| 3394-81 | 77.0-81.0 |
| 3394-84 | 80.0-84.0 |
| 3394-87 | 83.0-87.0 |
| Part Number | Cable Acceptance mm | ID mm | Utilux Die No. |
|---|---|---|---|
| F-4648 | 10 | 4.7 | 38-57 Cu |
| F-4648-1 | 16 | 5.5 | 38-63 Cu |
| F-4648-2 | 25 | 7.1 | 38-77 Cu |
| F-4648-3 | 35 | 8.4 | 38-92 Cu |

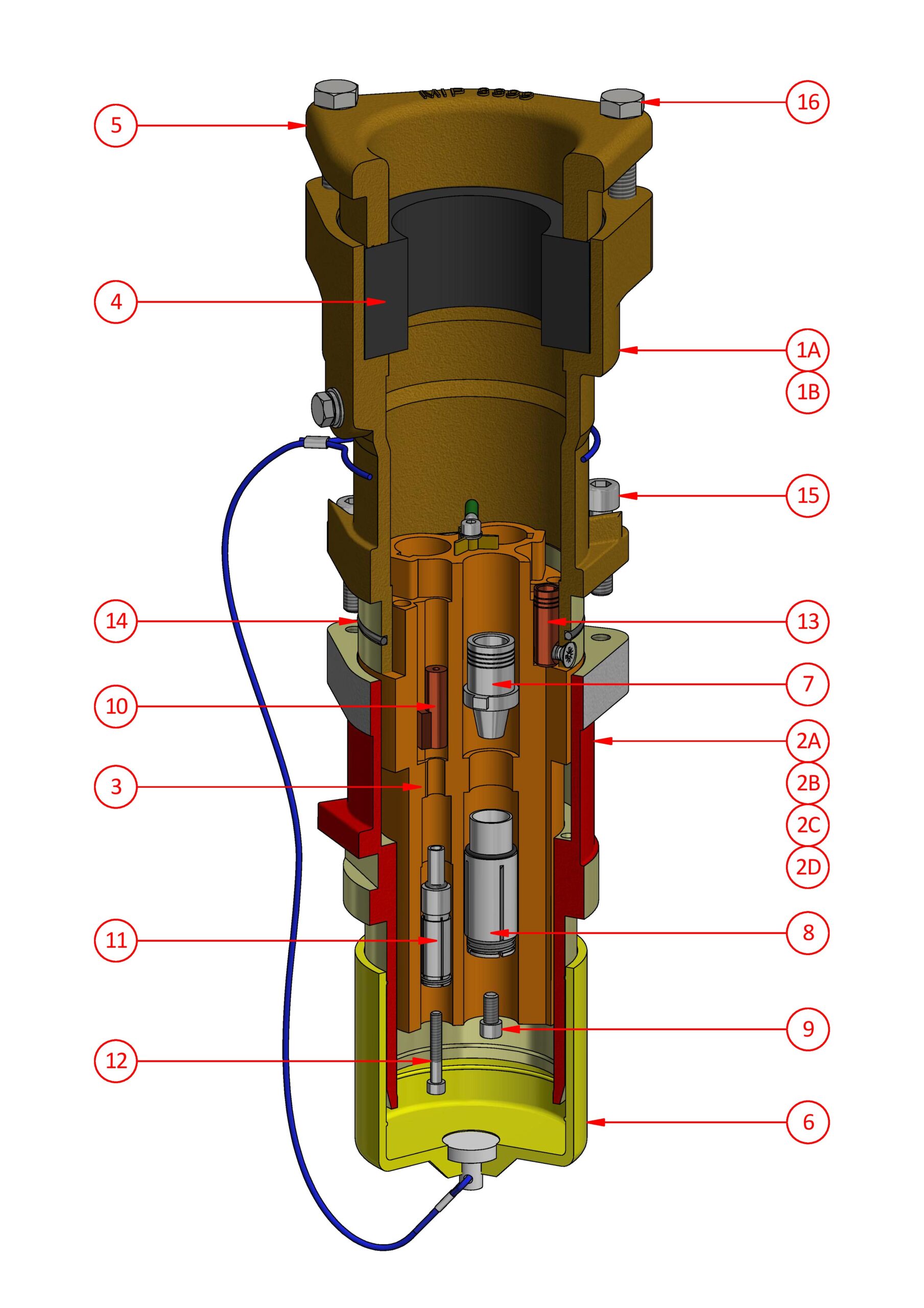

| # | Part Number | Description |
|---|---|---|
| 1A | F-4246-416 | 1100V Large Gland Body c/w items 1A, 5, 14, 15 & 16 |
| 1B | F-4246-436 | 3300V Large Gland Body c/w items 1B, 5 ,14, 15 & 16 |
| 2A | F-3342-416 | 1100V Nose Cone |
| 2B | F-3342-436 | 3300V Nose Cone |
| 2C | F-3342-416SS | 1100V Nose Cone Stainless Steel |
| 2D | F-3342-436SS | 3300V Nose Cone Stainless Steel |
| 3 | F-4034 | Interior c/w Earth Lead, Screw and Washer |
| 4 | Neoprene Grommet | See Table 3 |
| 5 | 3399B | Clamping Cap |
| 6 | F-264L | Protection Cap |
| 7 | Phase Thimble | See Table 2 |
| 8 | F-4245 | Phase Socket c/w O-ring AI019032 |
| 9 | AH009857 | Screw 1/4" x 1/2" skt. head |
| 10 | F-3589-1 | Pilot Thimble c/w screw AH009834 3/16" x 1 1/4" skt. head |
| 11 | F-3138-2 | Pilot Socket c/w O-ring AI019030 |
| 12 | AH009834 | Screw 3/16" x 1 1/4" skt. head |
| 13 | F-4648-3 | Earth Thimble c/w screw AH151028 M6 x 16 csk. head |
| 14 | AI019011 | O-ring ID 91.67 x sect. 3.53 |
| 15 | AH117113 | Screw M10 x 40 skt. head |
| 16 | AH113135 | Screw M12 x 50 hex. head |
