Restrained Plug (3300V) – 425 Amp Series – AF434T3

Product Details
Weight	12kg
Dimensions	L 150mm W 150mm H 410mm
Compliance	Explosion protected to AS/NZS1299 & IEC60079 Series
Materials	Manganese Bronze / PTFE / Stainless Steel
IP Rating	IP66/68

Need help choosing the right product?

Our team is here to help.

Table 1

Part Number	Description	Colour
AF434T3	3300V Restrained Plug	Red/Silver

NB: Plug supplied with Pilot Thimble

Phase Thimble – c/w screw AH115147 M6 x 40 skt. head

NB: Use ID for thimble selection

Neoprene Grommets

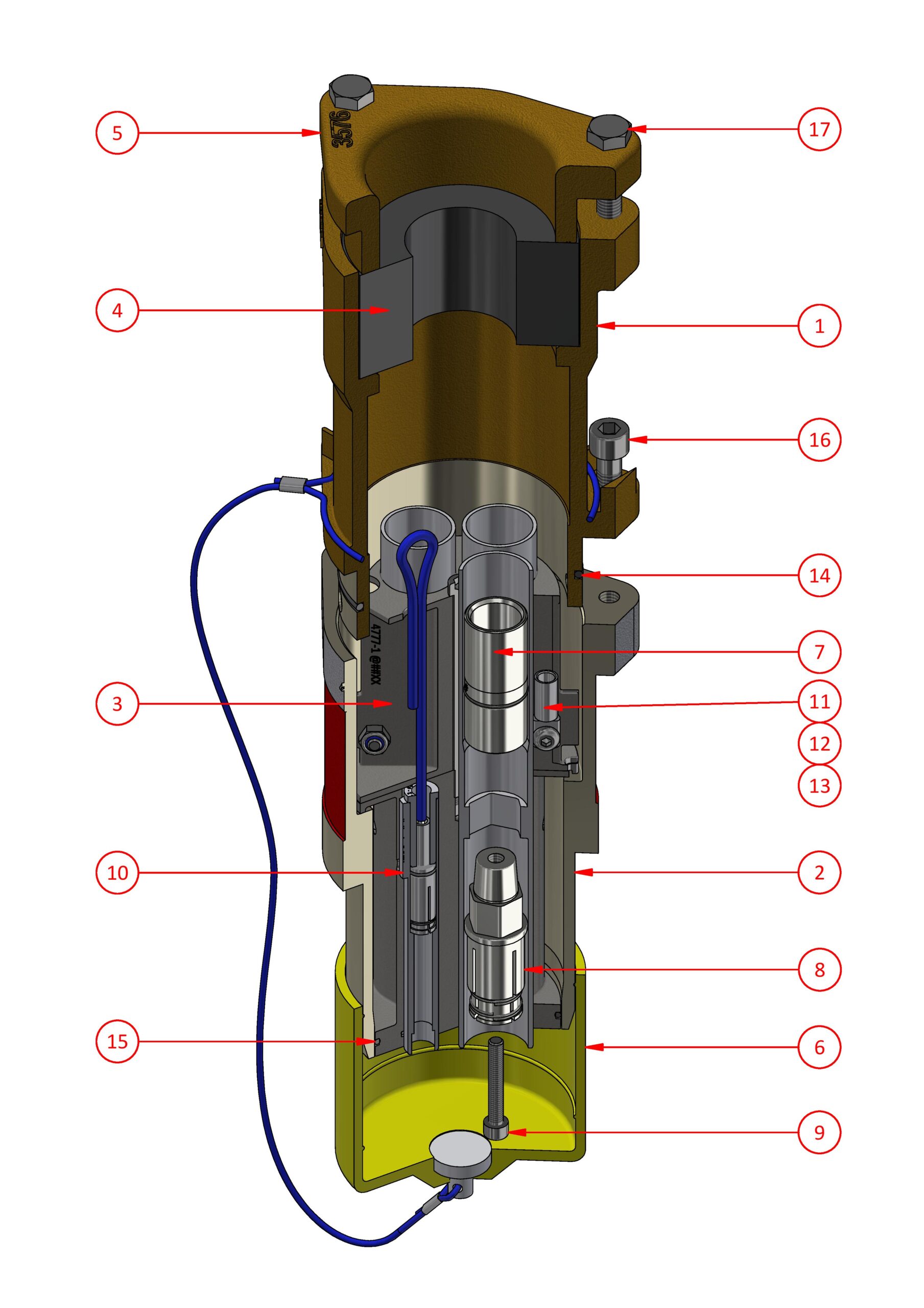

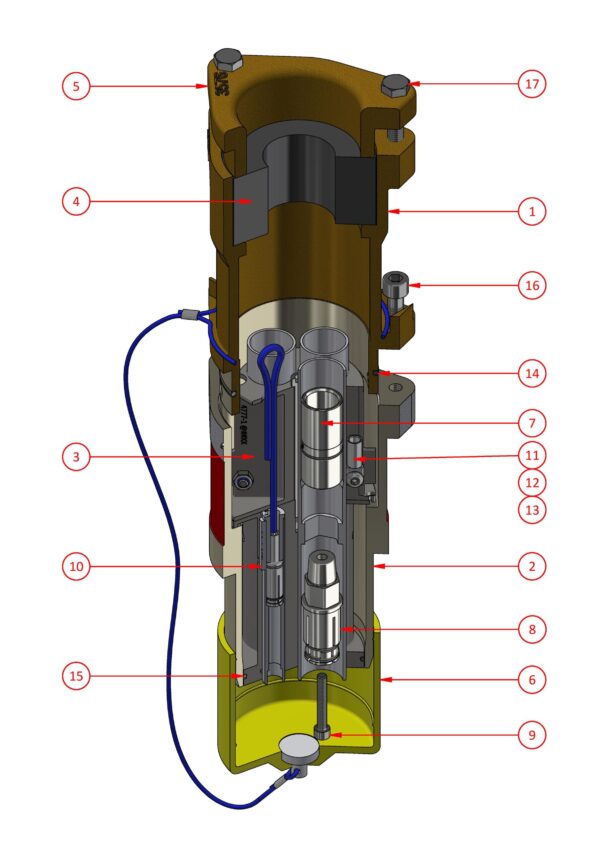

#	Part Number	Description
1	F-3339-434T	3300V Small Gland Body c/w items 1, 5, 14, 16 & 17
2	F-3342-434T	3300V Nose Cone
3	F-4777-60	Interior Assy c/w Insulators, Pilot Assy, Earth Lugs, O-Rings, Screws and Washers
4	Neoprene Grommet	See Table 3
5	3576B	Clamping Cap
6	F-264L	Protection Cap
7	Phase Thimble c/w screw & O-ring	See Table 2
8	F-4787	Phase Socket
9	AH115147	Screw M6 x 40 skt head
10	F-4791-60	Pilot Socket Assy c/w insulator, o-ring & lead
11	AH017258	Earth Lug
12	AH117116	Screw M6 x 12 button head
13	AH122001	M6 Nyloc Nut
14	AI019011	O-ring ID 91.67 x sect. 3.53
15	AI019056	O-ring ID 75.87 x sect 2.62
16	AH117113	Screw M10 x 40 skt. head
17	AH113116S	Screw M10 x 50 hex. head
