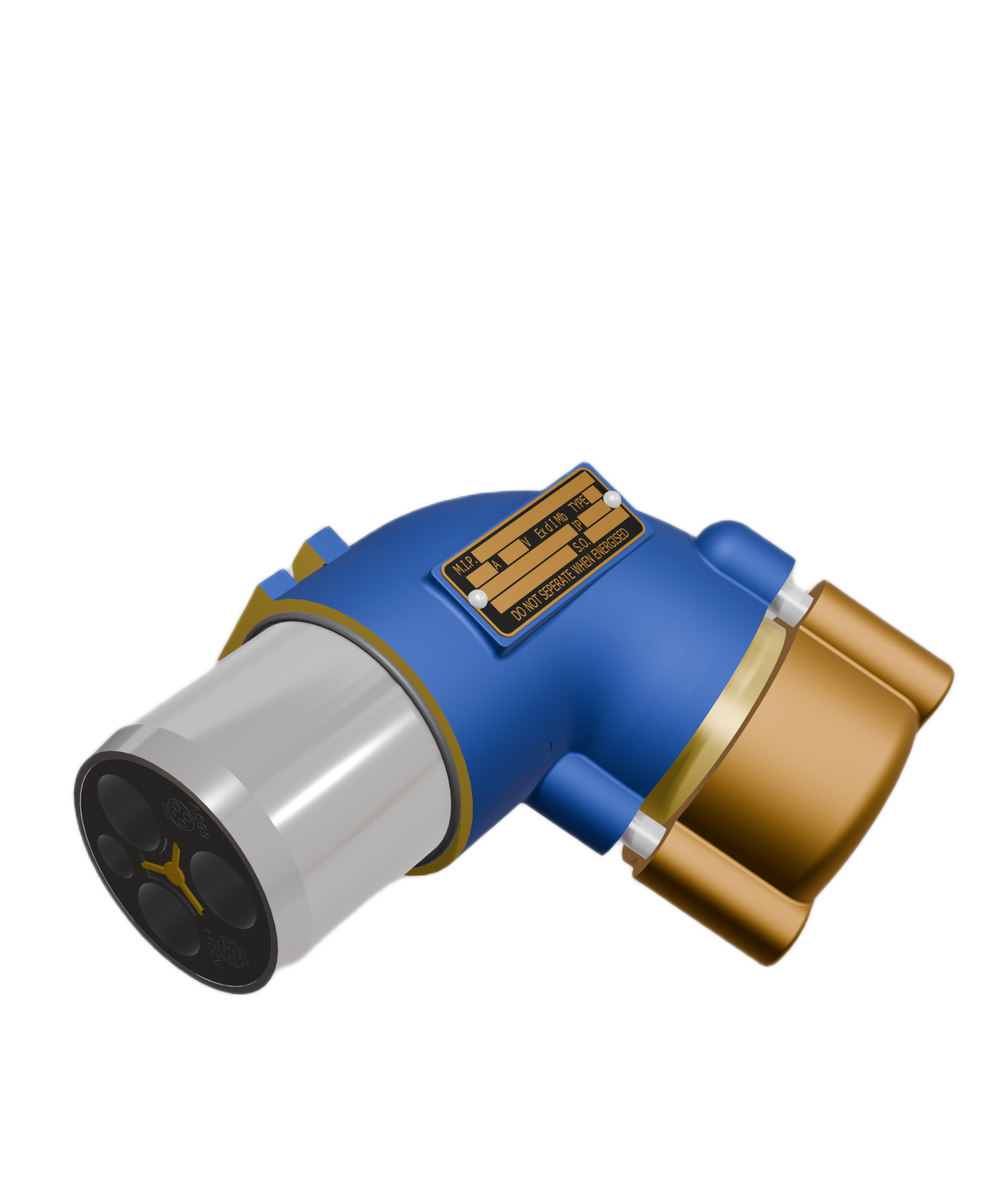

Restrained Cable Reel Plug (660V – 1100V) – 125 Amp Series

Product Details
Weight	6kg
Dimensions	L 215mm W 100mm H 165mm
Compliance	Explosion protected to AS/NZS1299 & IEC60079 Series
Materials	Manganese Bronze / Neoprene / Stainless Steel
IP Rating	IP66

Need help choosing the right product?

Our team is here to help.

Table 1

Part Number	Description	Colour
AF264RB	660V Restrained Cable Reel Plug	Orange
AF214RB	1100V Restrained Cable Reel Plug	Blue

NB: Plug supplied with Pilot Thimble

Phase Thimble – c/w screw AH009852 3/16″ x 1/2″ skt. head

Part Number	CSA	ID mm	Utilux Die No.
F-3851-0	10	5.0	38-57 Cu
F-3851-1	16	6.2	38-74 Cu
F-3851-2	25	8.0	38-92 Cu
F-3851-3	35	9.2	38-115 Cu
F-3851-4	50	10.2	38-115 Cu

NB: CSA is indicative only. Use ID for final selection

Neoprene Grommets

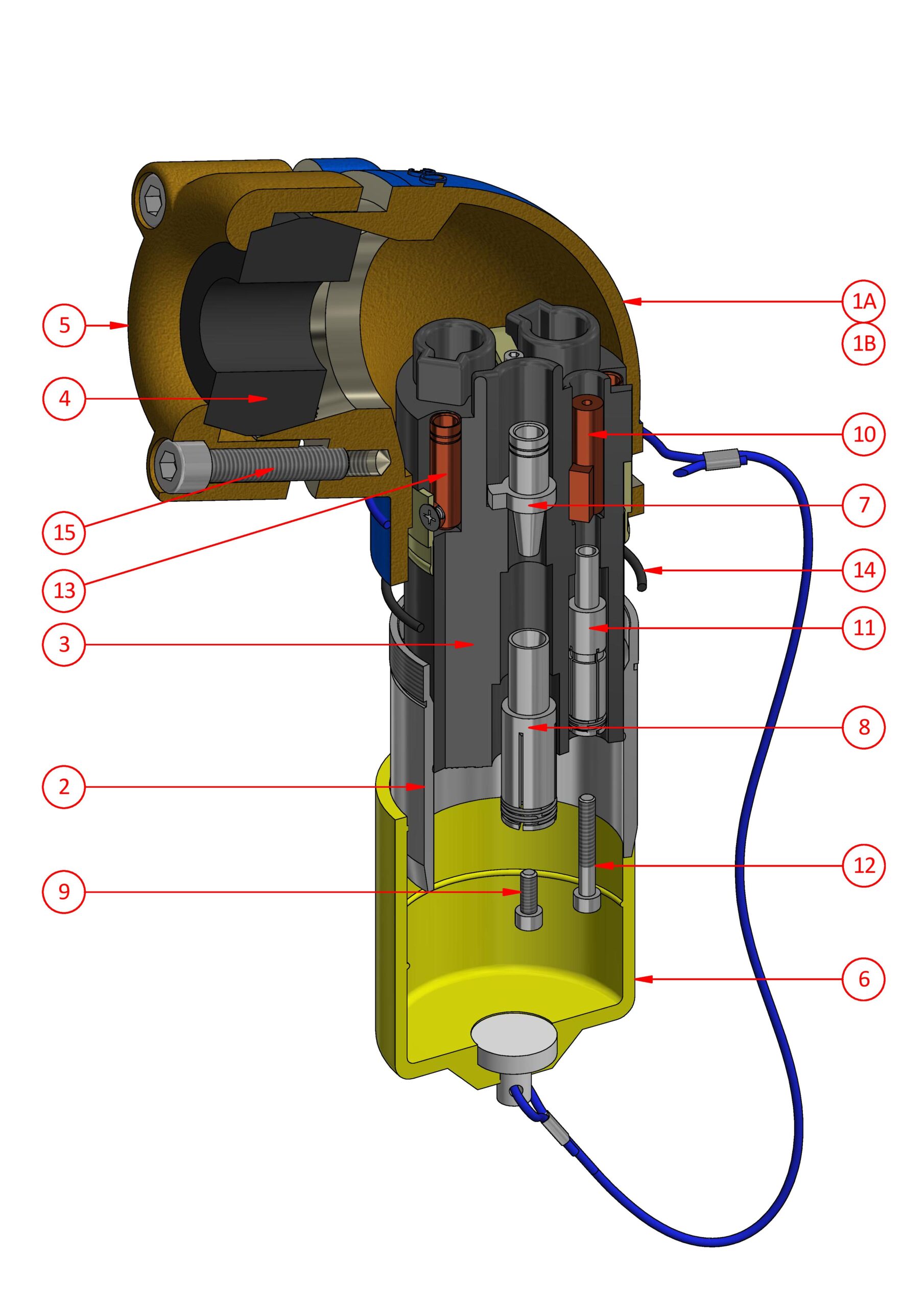

#	Part Number	Description
1A	F-3000B-264	660V Plug Body c/w items 1A, 5 & 15
1B	F-3000B-214	1100V Plug Body c/w items 1B, 5 & 15
2	4719	Earth Sleeve
3	F-3850-1	Interior c/w Earth Ring, Earth Thimbles, Strap & Screw
4	Neoprene Grommet	See Table 3
5	201-338-1B	Clamping Cap
6	F-274L	Protection Cap
7	Phase Thimble	See Table 2
8	F-3013	Phase Socket
9	AH009852	Screw 3/16" x 1/2" skt. head
10	F-3589-1	Pilot Thimble c/w screw AH009834 3/16" x 1 1/4" skt. head
11	F-3015	Pilot Socket
12	AH009834	Screw 3/16" x 1 1/4" skt. head
13	F-4667-2	Earth Thimble c/w screw AH151040 M4 x 8 csk. head
14	AI019003	O-ring ID 63.17 x sect. 2.62
15	AH151017	Screw M10 x 50 skt. head
