Receptacle Quick Release Gland & Bracket (660V – 1100V) – 150 Amp Series – AG164BQRRGB## – AG114BQRRGB##

Product Details
Weight	24kg
Dimensions	L 400mm W 360mm H 370mm
Compliance	Explosion protected to AS/NZS1299 & IEC60079 Series
Materials	Manganese Bronze / Brass / PTFE
IP Rating	IP66/68

Need help choosing the right product?

Our team is here to help.

Table 1

Part Number	Description	Colour
AG164BQR	660V Restrained Receptacle Quick Release	Orange
AG114BQR	1100V Restrained Receptacle Quick Release	Blue

NB: Receptacle Gland & Bracket supplied with Pilot Thimble

Phase Thimble – c/w screw AH151021 M4 x 40 skt. head

Part Number	CSA	ID mm	Utilux Die No.
F-4626	6	3.7	38-44 Cu
F-4626-0	16	5.5	38-63 Cu
F-4626-1	25	7.1	38-77 Cu
F-4626-2	35	8.4	38-92 Cu
F-4626-3	50	9.5	38-104 Cu
F-4626-4	70	11.2	38-115 Cu
F-4626-5	95	13.4	38-142 Cu

NB: CSA is indicative only. Use ID for final selection

Gland

Earth Thimble – c/w screw AH151037 M6 x 12 csk. head

Part Number	Cable Acceptance mm	ID mm	Utilux Die No.
F-4648S	10	4.7	38-57 Cu
F-4648-1S	16	5.5	38-63 Cu
F-4648-2S	25	7.1	38-77 Cu
F-4648-3S	35	8.4	38-92 Cu
F-4648-4S	50	10.0	Solder Only

NB: F-4648-2S supplied with Receptacle Gland & Bracket

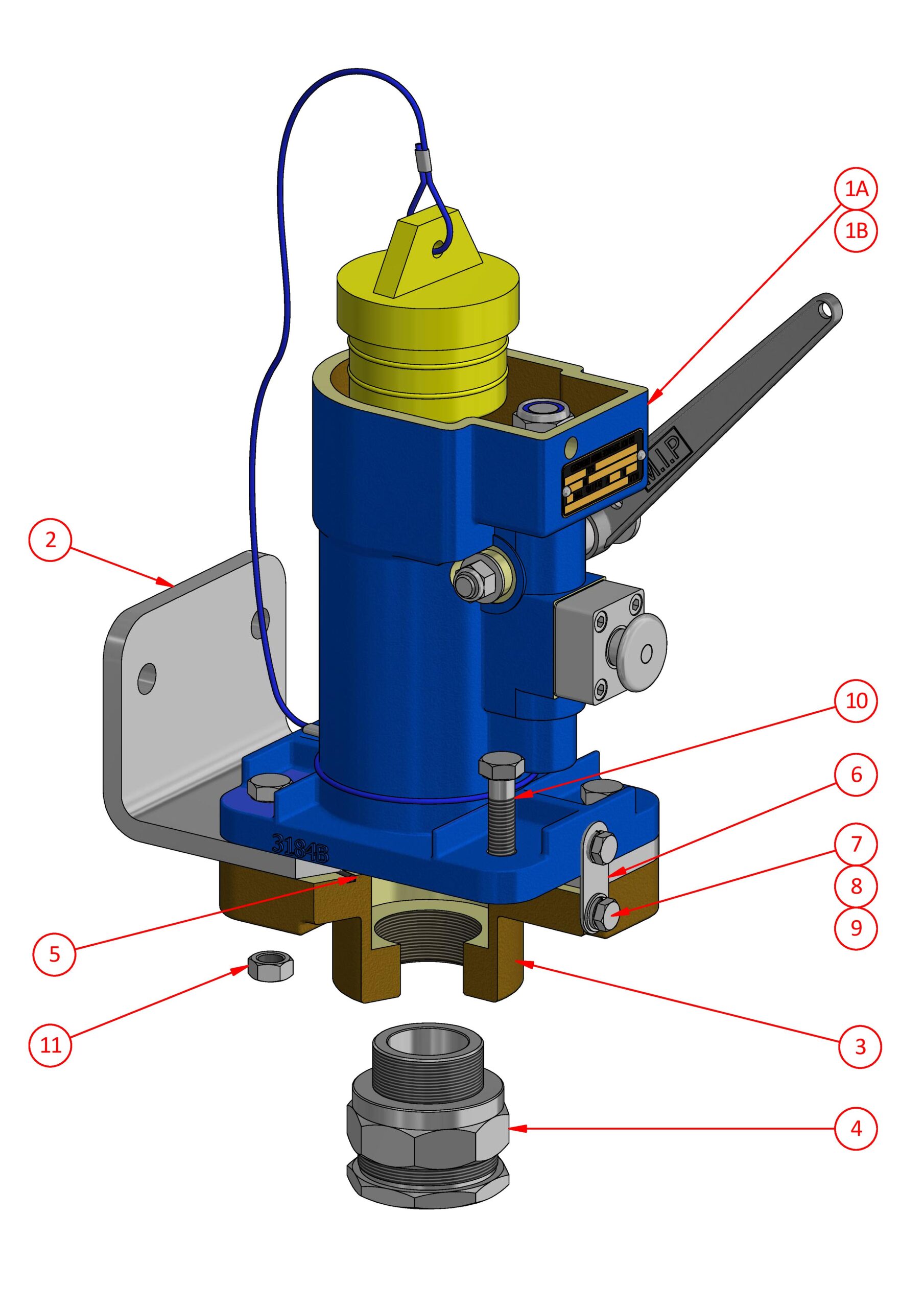

#	Part Number	Description
1A	AG164BQR	660V Restrained Receptacle Quick Release
1B	AG114BQR	1100V Restrained Receptacle Quick Release
2	AV1	Mounting Bracket
3	F-4629 range	Gland Adaptor (See F-4629 Page)
4	GWPM Range	Cable Gland (See Glands Catalogue)
5	AI019011	O-ring ID 91.67 x sect. 3.53
6	201-264-3	Earth Strap
7	AH113091	Screw M8 x 10 hex. head
8	AH009363	Spring Washer 5/16"
9	AH009277	Washer 5/16"
10	AH151038	Screw M12 x 60 hex. head
11	AH120012	Nut M12

NB: See AG164BQR – AG114BQR Page for Receptacle Spare Parts
