Receptacle Gland & Bracket (660V - 1100V) - 60 Amp Series AG664BRGB## - AG614BRGB##
Receptacle Gland & Bracket (660V - 1100V) - 60 Amp Series AG664BRGB## - AG614BRGB## - Image 2

Receptacle Gland & Bracket (660V – 1100V) – 60 Amp Series AG664BRGB## – AG614BRGB##

Order Procedure

  1. Select Complete Receptacle from Table 1
  2. Select Phase Thimble from Table 2 (3 Required)
  3. Select Gland from Table 3
  4. Add Part No. from Table 1 and Table 3 together to get Part No. required
Product Details
Weight12kg
DimensionsL 210mm W 210mm H 310mm
ComplianceExplosion protected to AS/NZS1299 & IEC60079 Series
MaterialsManganese Bronze / Brass / PTFE
IP RatingIP66/68
Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

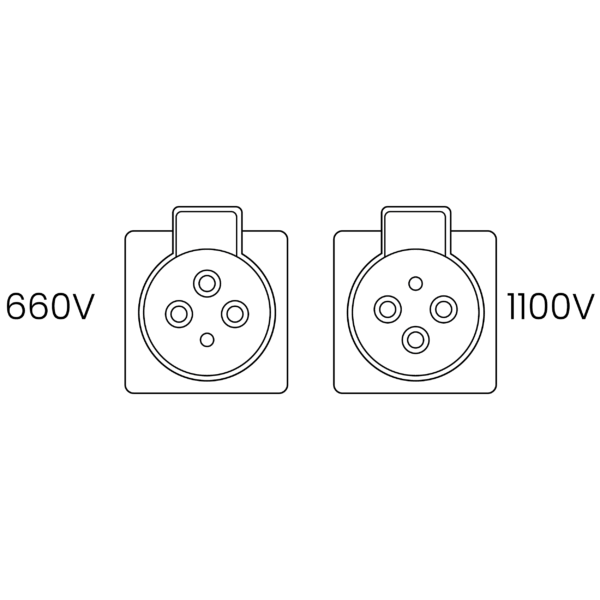

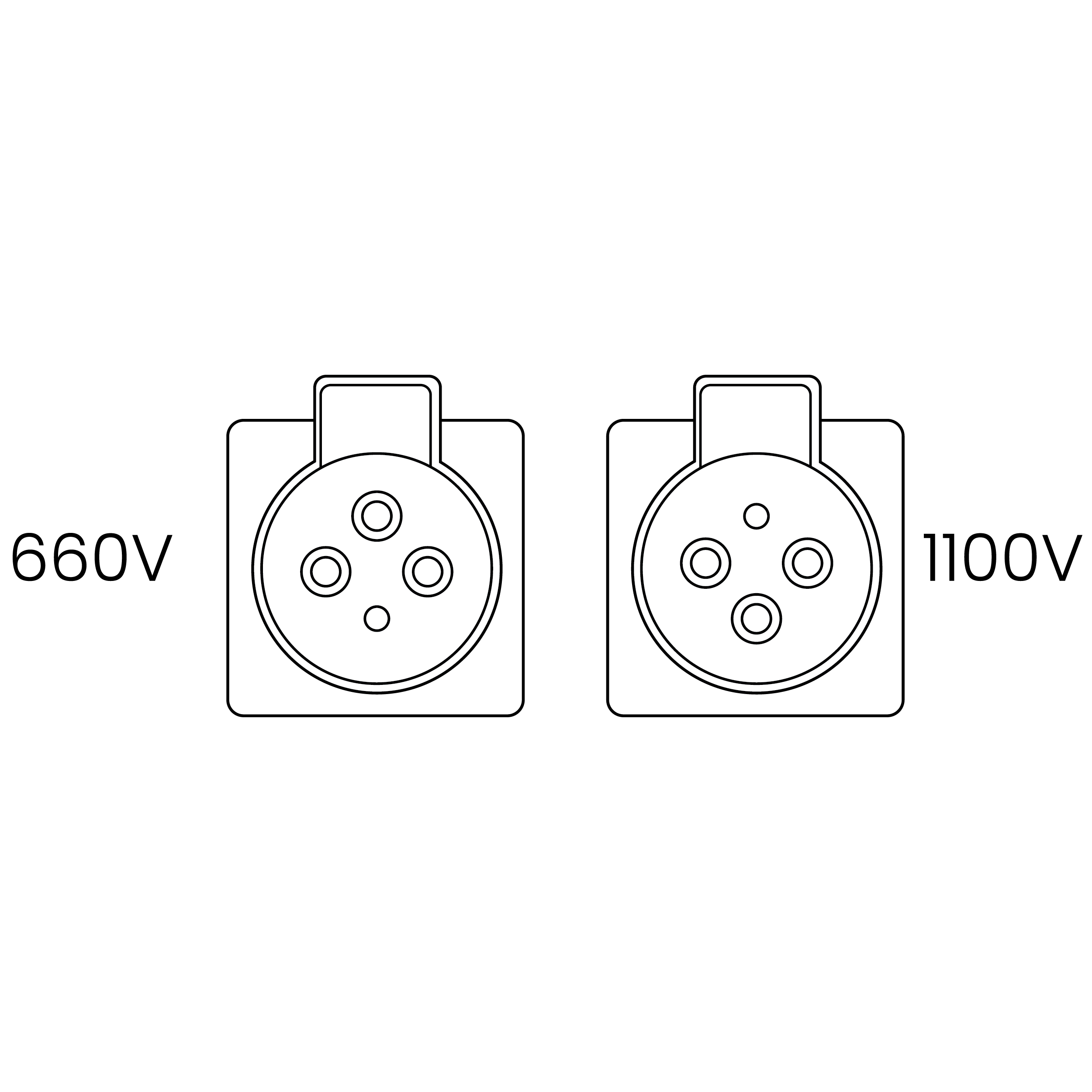

Table 1

Part Number Description Colour
AG664B 660V Restrained Receptacle Orange
AG614B 1100V Restrained Receptacle Blue
NB: Receptacle Gland & Bracket supplied with Pilot Thimble
Phase Thimble
Part Number CSA ID mm Utilux Die No.
4570 2.5 3.0 38-44 Cu
4570-1 6 3.7 38-44 Cu
4570-2 10 4.7 38-57 Cu
4570-3 16 5.5 38-63 Cu
NB: CSA is indicative only. Use ID for final selection
Gland
Part Number Cable Acceptance mm
RGB2 13.5-17.5
RGB2A 17.0-20.1
RGB3 19.5-23.8
RGB3A 22.5-27.0
RGB4 26.0-29.4
RGB4A 28.5-32.5
RGB5 31.0-36.5
RGB5A 35.0-40.5
RGB5B 39.5-43.8
RGB6 42.5-48.4
RGB6A 47.0-52.4
RGB6B 51.0-56.0

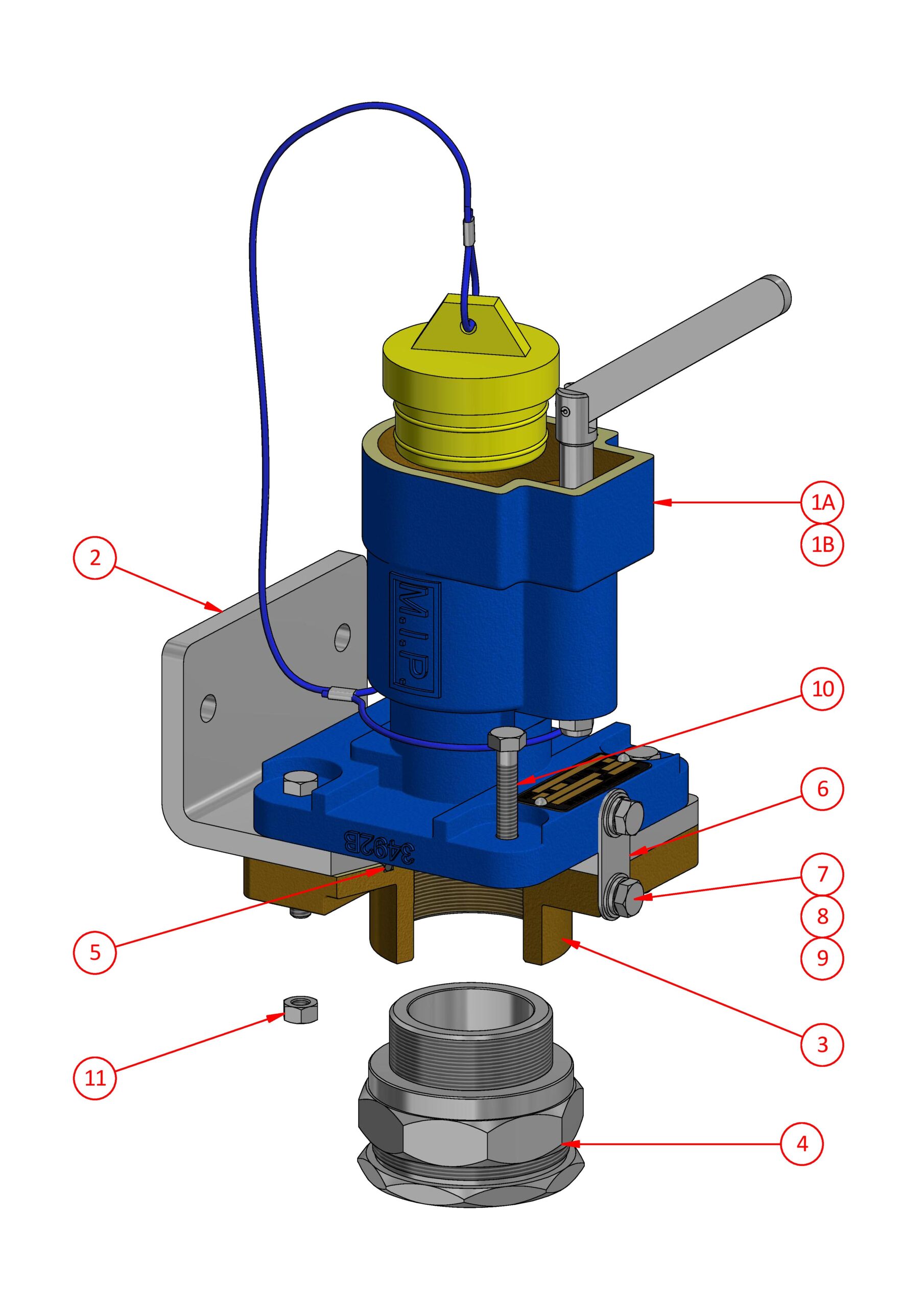

# Part Number Description
1A AG664B 660V Restrained Receptacle
1B AG614B 1100V Restrained Receptacle
2 AV6 Mounting Bracket
3 F-4575 range Gland Adaptor (See F-4575 Page)
4 See Cable Glands Catalogue
5 AI019006 O-ring ID 82.14 x sect. 3.53
6 Earth Strap
7 AH113091 Screw M8 x 10 hex. head
8 AH009363 Spring Washer 5/16"
9 AH009277 Washer 5/16"
10 AH113099 Screw M8 x 50 hex. head
11 AH120009 Nut M8
NB: See AG664B – AG614B Page for Receptacle Spare Parts
