| Product Details | |
|---|---|
| Weight | 33kg |
| Dimensions | L 390mm W 340mm H 340mm |
| Compliance | Explosion protected to AS/NZS1299 & IEC60079 Series |
| Materials | Manganese Bronze / Brass / PTFE |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|
| AV364B3 | 660V Restrained Receptacle Gland & Bracket | Orange |
| AV314B3 | 1100V Restrained Receptacle Gland & Bracket | Blue |
| Part Number | CSA | ID mm | Utilux Die No. |
|---|---|---|---|
| F-4606-1 | 35 | 8.4 | 38-92 Cu |
| F-4606-2 | 50 | 9.5 | 38-104 Cu |
| F-4606-3 | 70 | 11.2 | 38-115 Cu |
| F-4606-4 | 95 | 13.4 | 38-142 Cu |
| F-4606-5 | 120 | 15.5 | 38-165 Cu |
| F-4606-6 | 150 | 16.3 | 38-183 Cu |
| F-4606-7 | 185 | 18.4 | 38-200 Cu |
| F-4606-8 | 185 | 21.0 | Solder Only |
| Part Number | Cable Acceptance mm |
|---|---|
| 3054-25 | 22.0-25.0 |
| 3054-31 | 24.0-31.0 |
| 3054-35 | 30.0-35.0 |
| 3054-38 | 34.0-38.0 |
| 3054-41 | 37.0-41.0 |
| 3054-45 | 40.0-45.0 |
| 3054-47 | 44.0-47.0 |
| 3054-51 | 46.0-51.0 |
| 3054-545 | 50.0-54.0 |
| 3054-57 | 53.0-57.0 |
| 3054-60 | 56.0-60.0 |
| 3054-64 | 59.0-64.0 |
| 3054-67 | 63.0-67.0 |
| 3054-70 | 66.0-70.0 |
| 3054-73 | 69.0-73.0 |
| 3054-76 | 72.0-76.0 |

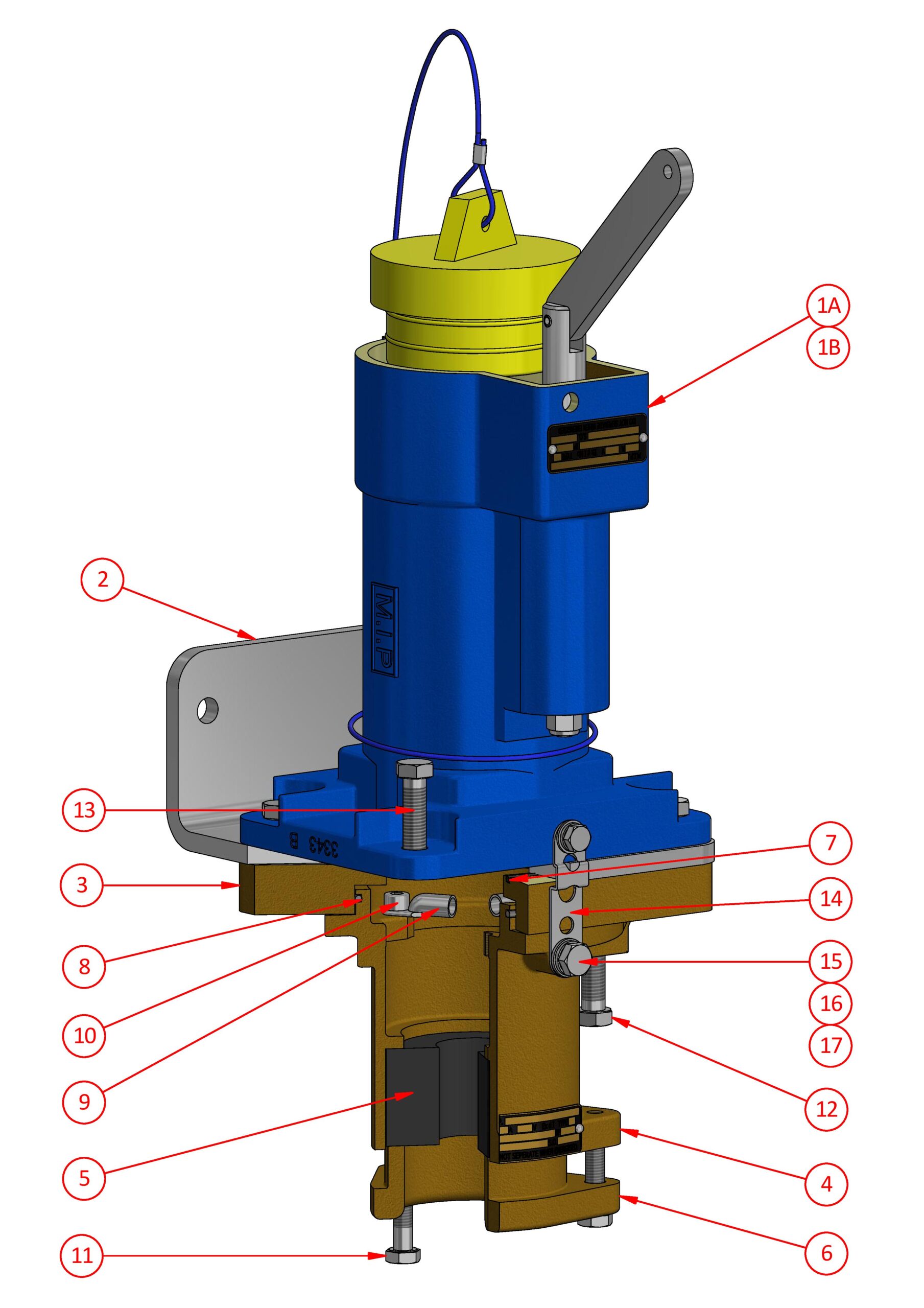

| # | Part Number | Description |
|---|---|---|
| 1A | AG364B | 660V Restrained Receptacle |
| 1B | AG314B | 1100V Restrained Receptacle |
| 2 | AV3 | Mounting Bracket |
| 3 | F-3370 | Spacer Plate c/w O-ring AI019042 |
| 4 | F-4088T | No. 3 TRS Cable Gland to suit 22.0-76.0mm O.D. Cable |
| 5 | See Table 3 | Neoprene Grommet |
| 6 | 3576B | Clamping Cap |
| 7 | AI019042 | O-ring ID 101.19 x sect. 3.53 |
| 8 | AI019010 | O-ring ID 120.24 x sect. 3.53 |
| 9 | AH017206 | Earth Lug |
| 10 | AH115093 | Screw M8 x 15 skt. head |
| 11 | AH113116S | Screw M10 x 50 hex. head |
| 12 | AH113134 | Screw M12 x 35 hex. head |
| 13 | AH113135 | Screw M12 x 50 hex. head |
| 14 | 201-264-1 | Earth Strap |
| 15 | AH113111 | Screw M10 x 16 hex. head |
| 16 | AH151011 | Spring Washer M10 |
| 17 | AH150011 | Washer M10 |
