| Product Details | |
|---|---|
| Weight | 26kg |
| Dimensions | L 400mm W 360mm H 370mm |
| Compliance | Explosion protected to AS/NZS1299 & IEC60079 Series |
| Materials | Manganese Bronze / Brass / PTFE |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|
| AV164B2 | 660V Restrained Receptacle Gland & Bracket | Orange |
| AV114B2 | 1100V Restrained Receptacle Gland & Bracket | Blue |
| Part Number | CSA | ID mm | Utilux Die No. |
|---|---|---|---|
| F-4626 | 6 | 3.7 | 38-44 Cu |
| F-4626-0 | 16 | 5.5 | 38-63 Cu |
| F-4626-1 | 25 | 7.1 | 38-77 Cu |
| F-4626-2 | 35 | 8.4 | 38-92 Cu |
| F-4626-3 | 50 | 9.5 | 38-104 Cu |
| F-4626-4 | 70 | 11.2 | 38-115 Cu |
| F-4626-5 | 95 | 13.4 | 38-142 Cu |
| Part Number | Cable Acceptance mm |
|---|---|
| 3137-25 | 21.0-25.0 |
| 3137-28 | 24.0-28.0 |
| 3137-32 | 27.0-32.0 |
| 3137-35 | 31.0-35.0 |
| 3137-38 | 34.0-38.0 |
| 3137-41 | 37.0-41.0 |
| 3137-44 | 40.0-44.0 |
| 3137-48 | 43.0-48.0 |
| 3137-51 | 47.0-51.0 |
| 3137-54 | 50.0-54.0 |
| 3137-57 | 53.0-57.0 |
| Part Number | Cable Acceptance mm | ID mm | Utilux Die No. |
|---|---|---|---|
| F-4648S | 10 | 4.7 | 38-57 Cu |
| F-4648-1S | 16 | 5.5 | 38-63 Cu |
| F-4648-2S | 25 | 7.1 | 38-77 Cu |
| F-4648-3S | 35 | 8.4 | 38-92 Cu |
| F-4648-4S | 50 | 10.0 | Solder Only |

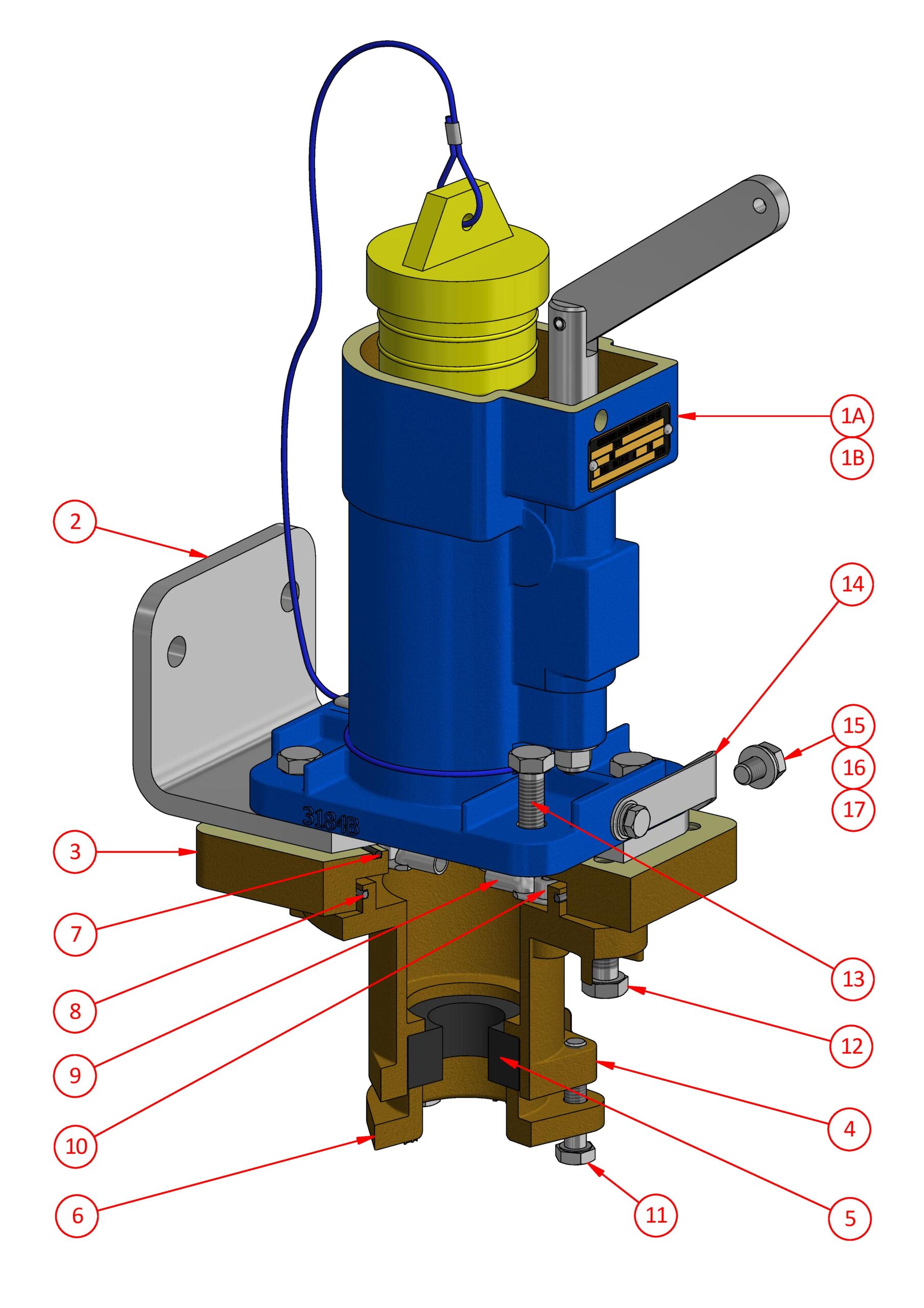

| # | Part Number | Description |
|---|---|---|
| 1A | AG164B | 660V Restrained Receptacle |
| 1B | AG114B | 1100V Restrained Receptacle |
| 2 | AV1 | Mounting Bracket |
| 3 | F-3370 | Spacer Plate c/w O-ring AI019042 |
| 4 | F-4087T | No. 2 TRS Cable Gland to suit 21.0-54.0mm O.D. Cable |
| 5 | See Table 3 | Neoprene Grommet |
| 6 | 3136B | Clamping Cap |
| 7 | AI019042 | O-ring ID 101.19 x sect. 3.53 |
| 8 | AI019010 | O-ring ID 120.24 x sect. 3.53 |
| 9 | AH017206 | Earth Lug |
| 10 | AH115111 | Screw M8 x 12 skt. head |
| 11 | AH113116S | Screw M10 x 50 hex. head |
| 12 | AH113134 | Screw M12 x 35 hex. head |
| 13 | AH113157 | Screw M12 x 40 hex. head |
| 14 | 201-264-2 | Earth Strap |
| 15 | AH113111 | Screw M10 x 16 hex. head |
| 16 | AH151011 | Spring Washer M10 |
| 17 | AH150011 | Washer M10 |
