Receptacle Gland & Bracket (660V – 1100V) – 150 Amp Series – AG164BRGB## – AG114BRGB##

Order Procedure

  1. Select complete Receptacle from Table 1
  2. Select Phase Thimble from Table 2 (3 Required)
  3. Select Gland from Table 3
  4. Add Part No. from Table 1 and Table 3 together to get Part No. required
Product Details
Weight23kg
DimensionsL 400mm W 360mm H 370mm
ComplianceExplosion protected to AS/NZS1299 & IEC60079 Series
MaterialsManganese Bronze / Brass / PTFE
IP RatingIP66/68
Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

Table 1

Part Number Description Colour
AG164B 660V Restrained Receptacle Orange
AG114B 1100V Restrained Receptacle Blue
NB: Receptacle Gland & Bracket supplied with Pilot Thimble
Phase Thimble – c/w screw AH151021 M4 x 40 skt. head
Part Number CSA ID mm Utilux Die No.
F-4626 6 3.7 38-44 Cu
F-4626-0 16 5.5 38-63 Cu
F-4626-1 25 7.1 38-77 Cu
F-4626-2 35 8.4 38-92 Cu
F-4626-3 50 9.5 38-104 Cu
F-4626-4 70 11.2 38-115 Cu
F-4626-5 95 13.4 38-142 Cu
NB: CSA is indicative only. Use ID for final selection
Gland
Part Number Cable Acceptance mm
RGB3 19.5-23.8
RGB3A 22.5-27.0
RGB4 26.0-29.4
RGB4A 28.5-32.5
RGB5 31.0-36.5
RGB5A 35.0-40.5
RGB5B 39.0-43.8
RGB6 42.5-48.4
RGB6A 47.0-52.4
RGB6B 51.0-56.0
Earth Thimble – c/w screw AH151037 M6 x 12 csk. head
Part Number Cable Acceptance mm ID mm Utilux Die No.
F-4648S 10 4.7 38-57 Cu
F-4648-1S 16 5.5 38-63 Cu
F-4648-2S 25 7.1 38-77 Cu
F-4648-3S 35 8.4 38-92 Cu
F-4648-4S 50 10.0 Solder Only
NB: F-4648-2S supplied with Receptacle Gland & Bracket

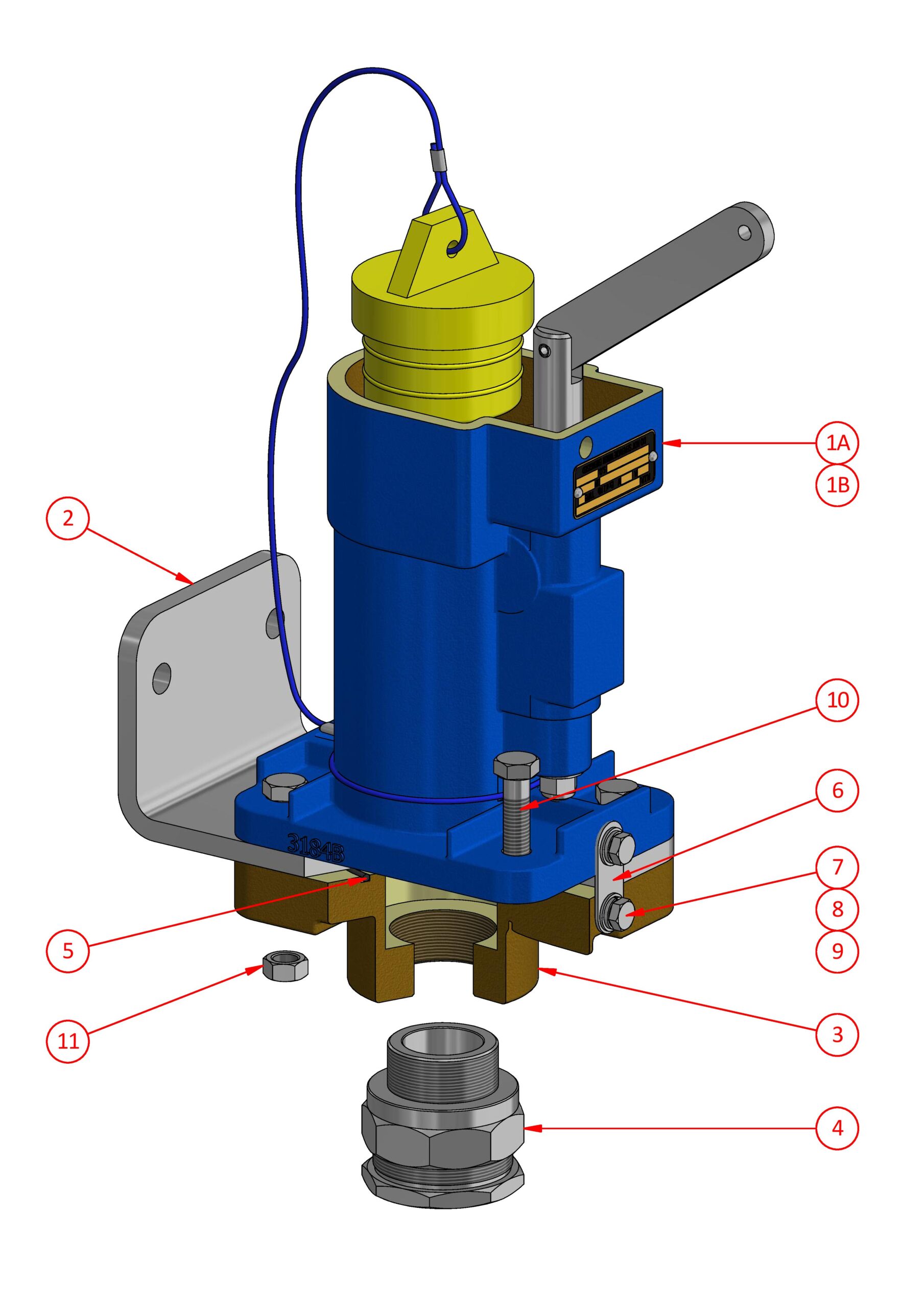

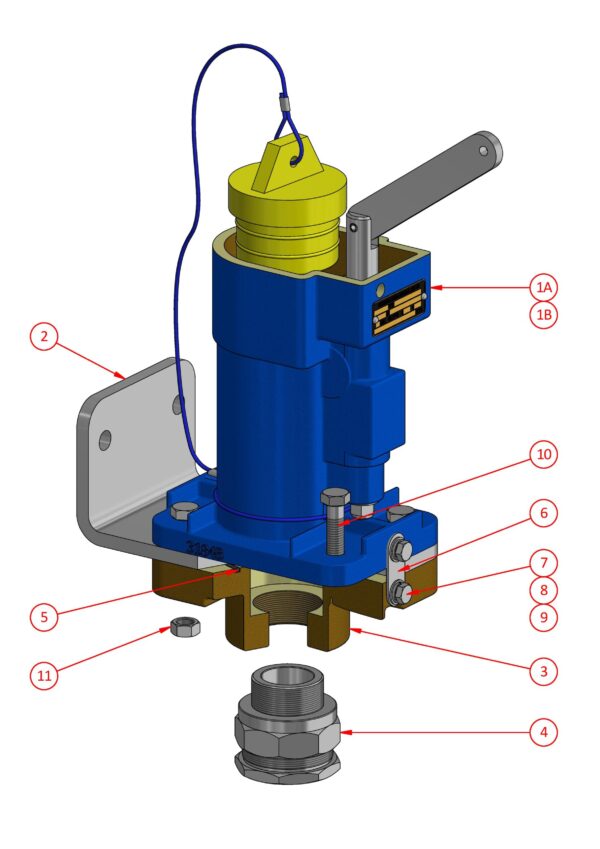

# Part Number Description
1A AG164B 660V Restrained Receptacle
1B AG114B 1100V Restrained Receptacle
2 AV1 Mounting Bracket
3 F-4629 range Gland Adaptor (See F-4629 Page)
4 GWPM Range Cable Gland (See Glands Catalogue)
5 AI019011 O-ring ID 91.67 x sect. 3.53
6 201-264-3 Earth Strap
7 AH113091 Screw M8 x 10 hex. head
8 AH009363 Spring Washer 5/16"
9 AH009277 Washer 5/16"
10 AH151038 Screw M12 x 60 hex. head
11 AH120012 Nut M12
NB: See AG164B – AG114B Page for Receptacle Spare Parts
