| Product Details | |
|---|---|
| Weight | 6kg |
| Dimensions | L 180mm W 140mm H 320mm |
| Compliance | Explosion protected to AS/NZS1299 & IEC60079 Series |
| Materials | Manganese Bronze / Brass / PTFE |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|
| AG664B | 660V Restrained Receptacle | Orange |
| AG614B | 1100V Restrained Receptacle | Blue |
| Part Number | CSA | ID mm | Utilux Die No. |
|---|---|---|---|
| 4570 | 2.5 | 3.0 | 38-44 Cu |
| 4570-1 | 6 | 3.7 | 38-44 Cu |
| 4570-2 | 10 | 4.7 | 38-57 Cu |
| 4570-3 | 16 | 5.5 | 38-63 Cu |
| 4570-4 | 25 | 7.1 | 38-77 Cu |

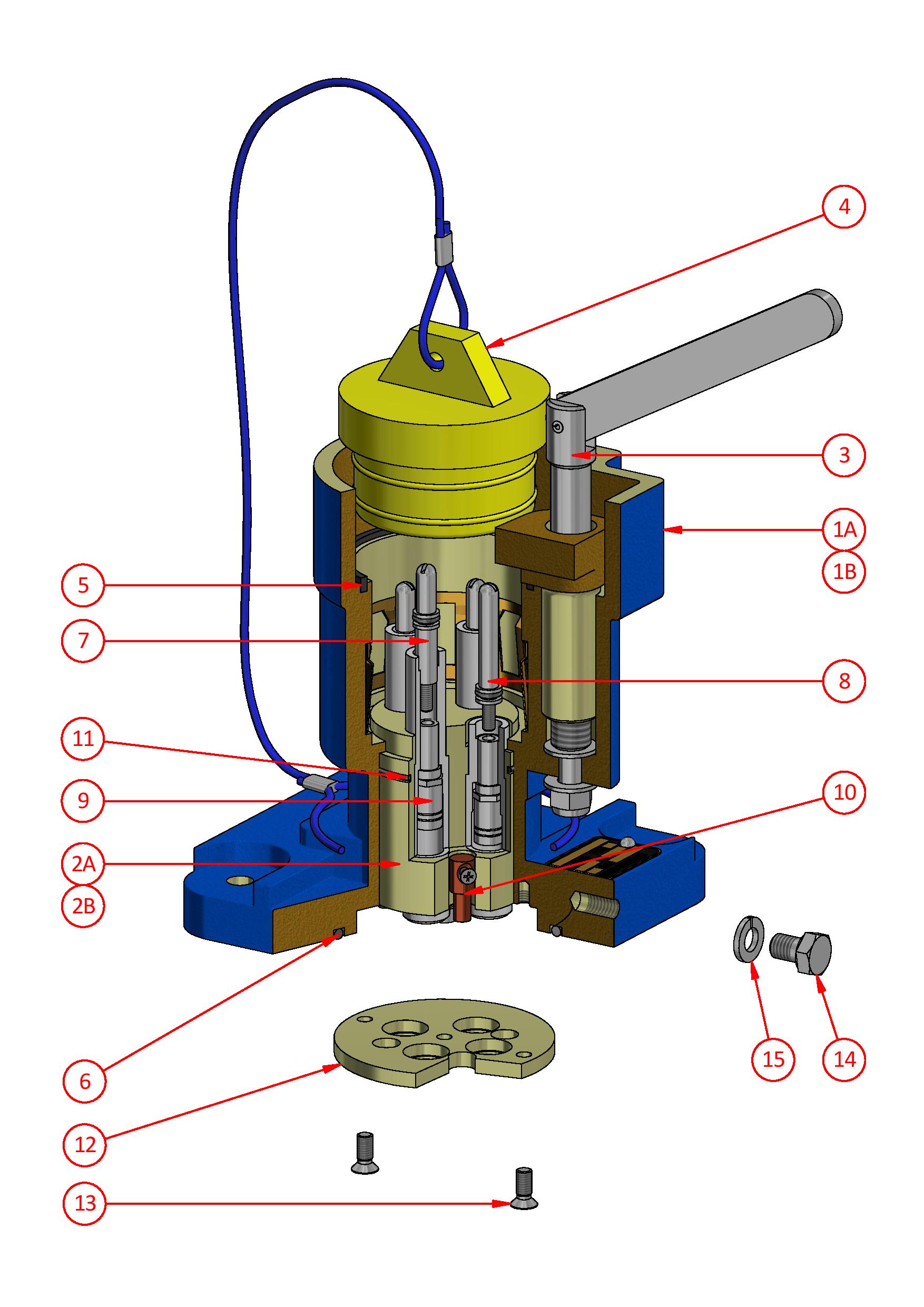

| # | Part Number | Description |
|---|---|---|
| 1A | F-3492-664 | 660V Receptacle Body c/w items 1A, 3, 5, 6, 14 & 15 |
| 1B | F-3492-614 | 1100V Receptacle Body c/w items 1B, 3, 5, 6, 14 & 15 |
| 2A | F-4564 | Interior c/w O-Ring, Earth Thimble, Retaining Plate & Screws |
| 2B | F-4564KIT | Interior Service Kit c/w O-Rings, Insulators, Retaining Plate & Screws |
| 3 | 3856 | Jacking Screw |
| 4 | F-309 | Sealing Plug |
| 5 | 4401-1 | Seal |
| 6 | AI019006 | O-ring ID 82.14 x sect. 3.53 |
| 7 | F-4566 | Phase Contact Pin c/w O-ring AI019007 |
| 8 | F-4569 | Pilot Contact Pin c/w O-ring AI019007 |
| 9 | See Table 2 | Phase or Pilot Thimble |
| 10 | F-4650 | Earth Thimble c/w screw AH151035 M3 x 10 csk. head |
| 11 | AI019008 | O-ring ID 47.35 x sect. 1.78 |
| 12 | 4571 | Interior Retaining Plate |
| 13 | AH151034 | Screw M5 x 12 csk. head |
| 14 | AH113091 | Screw M8 x 10 hex. head |
| 15 | AH009363 | Spring Washer 5/16" |
