Receptacle (660V - 3300V) - 300 Amp Series

Receptacle (660V – 3300V) – 300 Amp Series

Order Procedure

Select complete Receptacle from Table 1
Select Phase Thimble from Table 2 (3 Required)
Add Part No. from Table 1 & Options Table together to get Part No. required if an Actuator is needed.

NB: The Receptacle flange dimensions are (160 ± 3 mm × 203 ± 3 mm) which vary from the nominal size (152 × 203 mm) specified in AS/NZS 1299:2009. Refer to TRP-2-2 for installation instructions.

Product Details
Weight	19kg
Dimensions	L 220mm W 220mm H 330mm
Compliance	Explosion protected to AS/NZS1299 & IEC60079 Series
Materials	Manganese Bronze / Brass / PTFE
IP Rating	IP66/68

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Table 1

Part Number	Description	Colour
AG364B	660V Restrained Receptacle	Orange
AG314B	1100V Restrained Receptacle	Blue
AG334B	3300V Restrained Receptacle	Red

NB: Receptacle supplied with Pilot Thimble

Table 2

Phase Thimble – c/w screw AH151026 & O-ring AI019017

Part Number	CSA	ID mm	Utilux Die No.
F-4606-1	35	8.4	38-92 Cu
F-4606-2	50	9.5	38-104 Cu
F-4606-3	70	11.2	38-115 Cu
F-4606-4	95	13.4	38-142 Cu
F-4606-5	120	15.5	38-165 Cu
F-4606-6	150	16.3	38-183 Cu
F-4606-7	185	18.4	38-200 Cu
F-4606-8	185	21.0	Solder Only

NB: CSA is indicative only. Use ID for thimble selection

Table 3

Table 4

Options

Part Number	Description
A	Actuator

Example: AG364BA

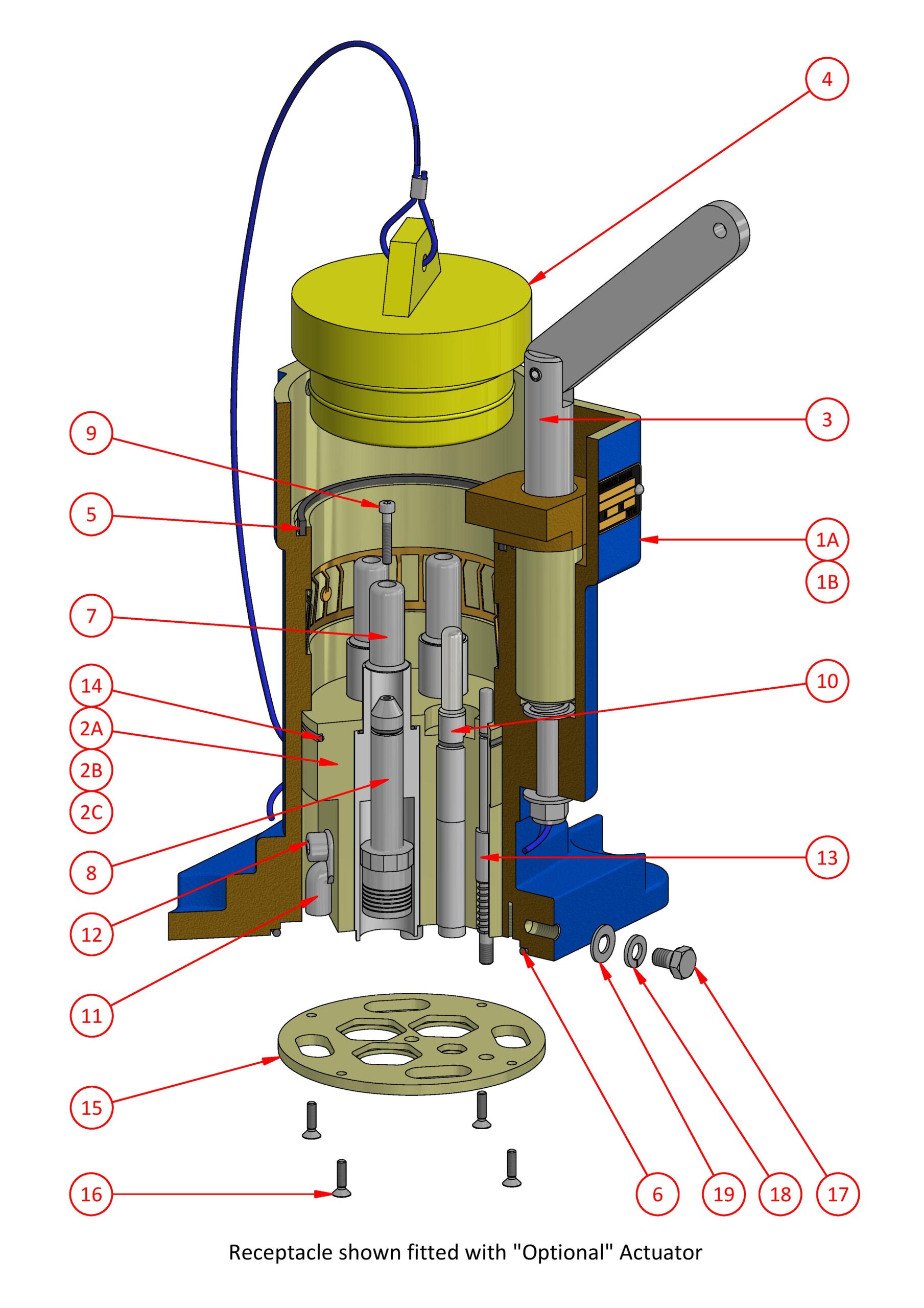

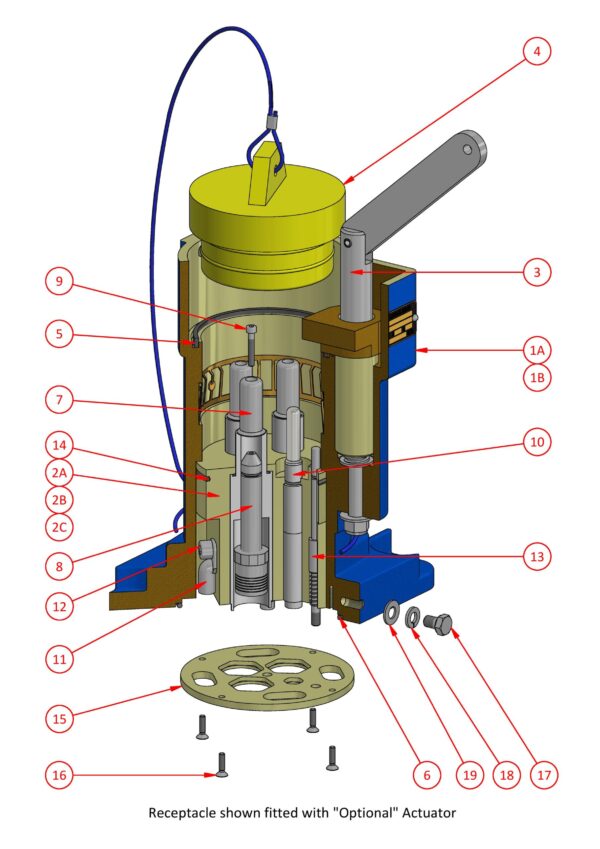

Spare Parts

#	Part Number	Description
1A	F-3343-364	660V Receptacle Body c/w items 1A, 3, 5, 6, 18, 19 & 20
1B	F-3343-314	1100V Receptacle Body c/w items 1B, 3 ,5, 6, 18, 19 & 20
1C	F-3343-334	3300V Receptacle Body c/w items 1, 3, 5, 6, 18, 19 & 20
2A	F-4602	(660V - 1100V) Interior c/w O-ring, Earth Lugs, Retaining Plate & Screws
2B	F-4602A	(660V - 1100V) Interior c/w O-ring, Actuator, Earth Lugs, Retaining Plate & Screws
2C	F-4602KIT(300A-4PIN)	(660V - 1100V) Interior Service Kit c/w O-rings, Insulators, Pilot Pin Assy, Retaining Plate & Screws
2D	F-4602-1	(3300V) Interior c/w O-ring, Earth Lugs, Retaining Plate & Screws
2E	F-4602-1A	(3300V) Interior c/w O-ring, Actuator, Earth Lugs, Retaining Plate & Screws
2F	F-4602-1KIT(300-425A-4PIN)	(3300V) Interior Service Kit c/w O-rings, Insulators, Pilot Pin Assy, Retaining Plate & Screws
3	3401B	Jacking Screw
4	F-311	Sealing Plug
5	4401-3	Seal
6	AI019010	O-ring ID 120.24 x sect. 3.53
7A	4607	Phase Pin (Set of 3) (660V - 1100V)
7B	4609	Phase Pin (Set of 3) (3300V)
8	Phase Thimble	See Table 2
9	AH151026	Screw M4 x 25 skt. head
10	F-853-1	Pilot Pin & Thimble Assembly c/w Insulator & O-ring
11	AH017206	Earth Lug
12	AH151027	Screw M8 x 12 skt. head
13	F-4618	Actuator c/w O-ring AI019051 & Spring 4619
14	AI019048	O-ring ID 94.92 x sect. 2.62
15	4612	Interior Retaining Plate
16	AH151022	Screw M4 x 16 csk. head
17	AH113091	Screw M8 x 10 hex. head
18	AH009363	Spring Washer 5/16"
19	AH009277	Washer 5/16"
