| Product Details | |
|---|---|
| Weight | 8.0kg |
| Dimensions | L 490mm W 150mm H 150mm |
| Compliance | Explosion protected to AS1299 & IEC60079 Series |
| Materials | Stainless Steel / Teflon / Silicone |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|

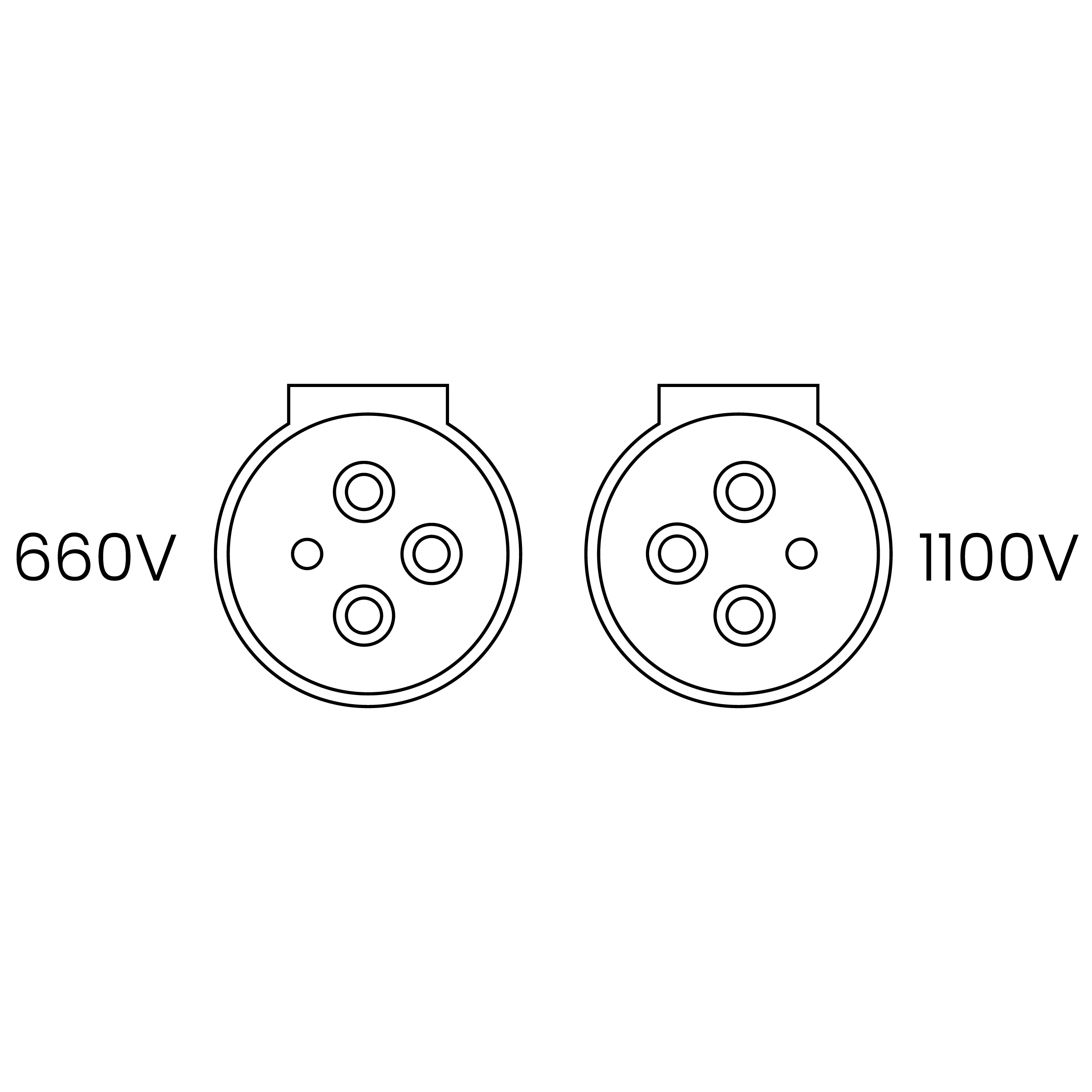

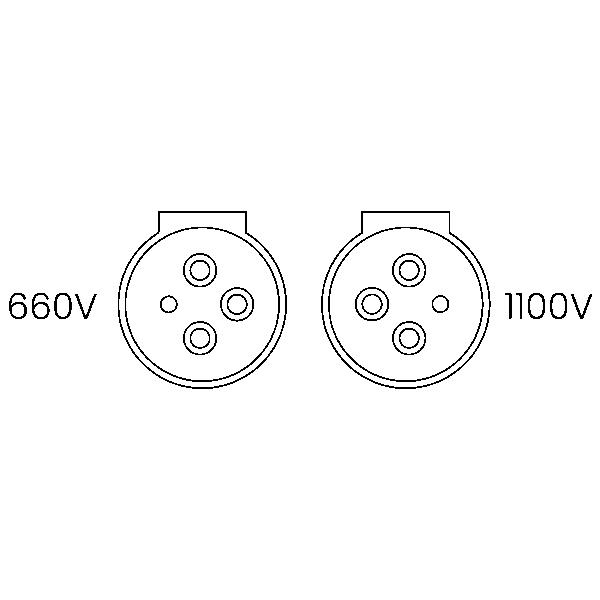

| AT464TS | 660V 4 Pin Phase Condition Indicator Plug Stainless Steel | Orange/ Silver |
| AT414TS | 1100V 4 Pin Phase Condition Indicator Plug Stainless Steel | Blue/Silver |
| AT434TS | 3300V 4 Pin Phase Condition Indicator Plug Stainless Steel | Red/Silver |
| AM461TSA | 660V 4 Pin Phase Condition Indicator Plug Rtx Stainless Steel | Orange/ Silver |
| AM411TSA | 1100V 4 Pin Phase Condition Indicator Plug Rtx Stainless Steel | Blue/Silver |
| AM431TSA | 3300V 4 Pin Phase Condition Indicator Plug Rtx Stainless Steel | Red/Silver |

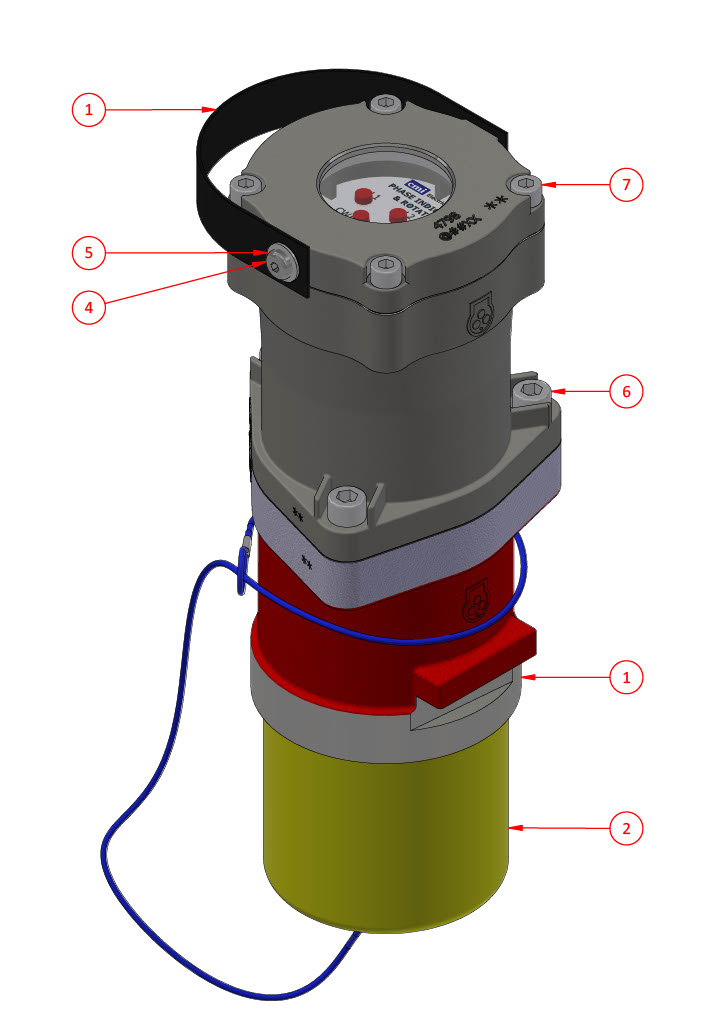

| # | Part Number | Description |
|---|---|---|
| 1A | 4779-1 | 30D/425A Nose Cone Stainless Steel |
| 1B | 4779-2 | 30D/425A Nose Cone With Slot Stainless Steel |
| 2 | F-264L | Dust Cap With Lead |
| 3 | F-AXDDD400 | Handle |
| 4 | AH117116 | M6 X 12 Button Head Screw |
| 5 | AH150014 | M6 Plain Washer |
| 6 | AH115149 | M10 X 40 Socket Head Cap Screw Zinc Plated |
| 7 | AH115094 | M8 X 35 Socket Head Cap Screw Zinc Plated |
