Phase Condition Indicator Plug 6 Pin – AT416TS – AT436TS / AM416TSA – AM436TSA / AM411TSB – AM431TSB

Product Details
Weight8.0kg
DimensionsL 490mm W 150mm H 150mm
ComplianceExplosion protected to AS1299 & IEC60079 Series
MaterialsStainless Steel / Teflon / Silicone
IP RatingIP66/68

Need help choosing the right product?

Our team is here to help.

Table 1

Part Number Description Colour
AT416TS 1100V 6 Pin Phase Condition Indicator Plug Stainless Steel Blue/Silver
AT436TS 3300V 6 Pin Phase Condition Indicator Plug Stainless Steel Red/Silver
AM416TSA 1100V 6 Pin Phase Condition Indicator Plug RTX Stainless Steel Blue/Silver
AM436TSA 3300V 6 Pin Phase Condition Indicator Plug RTX Stainless Steel Red/Silver
AM411TSB 1100V 4 Pin Dummy Plug Stainless Steel (Becker Module) Blue/SiIver
AM431TSB 3300V 4 Pin Dummy Plug Stainless Steel (Becker Module) Red/Silver

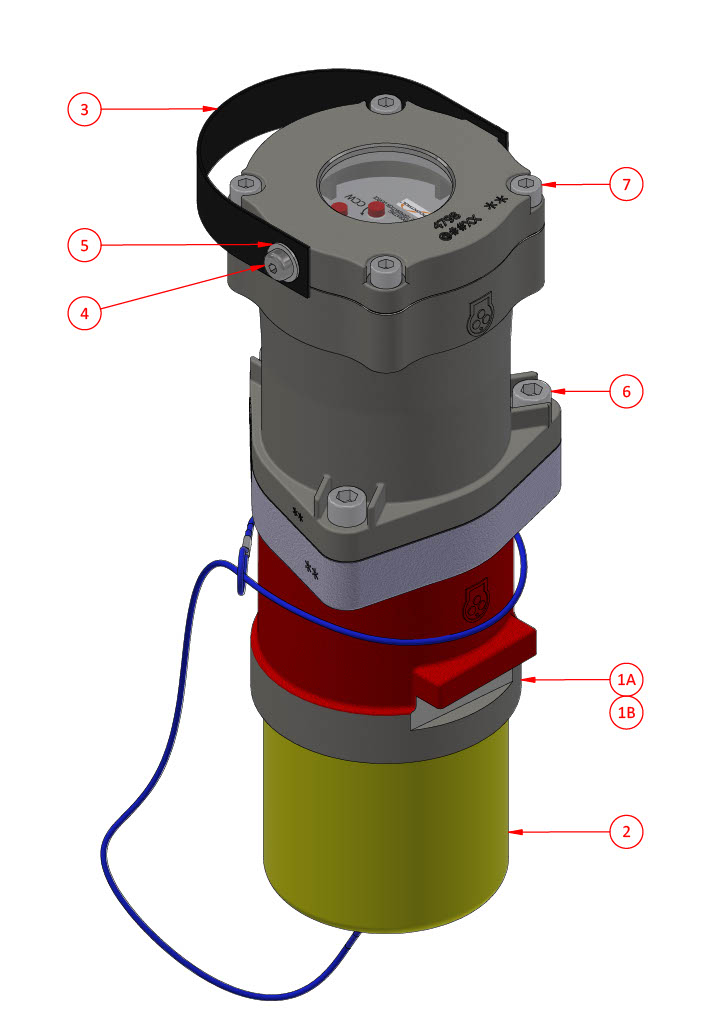

# Part Number Description
1 4779-2 300/ 425A Nose Cone With Slot Stainless Steel
2 F-264L Dust Cap With Lead
3 F-AX000400 Handle
4 AH117116 M6 X 12 Button Head Screw
5 AH150014 M6 Plain Washer
6 AH115149 M10 X 40 Socket Head Cap Screw Zinc Plated
7 AH115094 M8 X 35 Socket Head Cap Screw Zinc Plated
