Multicore Steel Braided Flexible Power & Control NBR Cable 90°C 0.6/1kV

Typical Uses

As power, control or signal cables on inland waterway and sea-going vessels. On conveyors, machine tools, cranes, earth moving equipment and other industrial applications where extra mechanical protection is required. Also suitable for wiring in hazardous locations (i.e. chemical plants).

Temperature Range: -20 to +90°C static
-20 to +90°C flexible

Maximum Service Temperature: 90°C

Rated Voltage: 0.6/1kV

Relevant Standards: AS/NZS 1125, AS/NZS 3808, IEC 60332-1, IEC 60092-350

Bending Radius: 8 times diameter after install
12 times diameter during install

The materials used in the manufacture of these cables are RoHS Compliant.

Download Product PDF

Need help choosing the right product?

Our team is here to help.

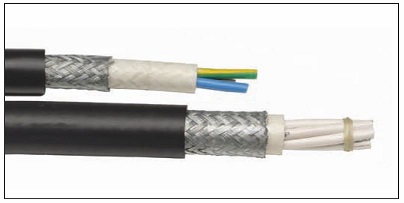

Cable Construction

Conductor: Fine strands of plain electrolytic copper wire for improved flexibility. Class 5.
Insulation: NBR Elastomer compound specially designed for resistance to migration and cold flexibility.
Inner sheathing: PVC
Silicate powder lubricant between cores and inner sheath to reduce friction.
Braiding: Galvanised steel wires for screening and mechanical protection. Total coverage 80%.
Outer sheathing: NBR Elastomer resistant to oil, petrol and chemicals as well as to abrasion.

UV stabilised and flame retardant.

Technical Data

Part Number	Size mm²	Nom. Stranding No./mm	Nom. O.D. mm	Approx. Cable Weight Kg/Km
HDSY03/1.5BK	3 x 1.5	48/0.20	12.8	220
HDSY04/1.5BK	4 x 1.5	48/0.20	13.8	261
HDSY07/1.5BK	7 x 1.5	48/0.20	16.0	330
HDSY03/2.5BK	3 x 2.5	80/0.20	14.0	260
HDSY04/2.5BK	4 x 2.5	80/0.20	15.1	295
