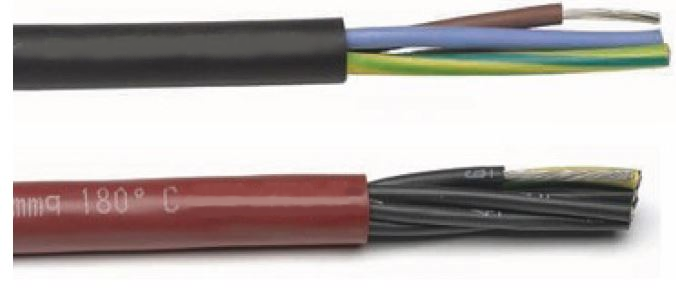

Multicore Silicone High Temp Cable LSZH 180°C 0.6/1.0KV

Multicore Silicone High Temp Cable LSZH 180°C 0.6/1.0KV

Typical Uses

Electric signs, spotlights, public lighting

  • Electric motor applications
  • Power supplies
  • Electrical appliances
  • Heavy industry
  • Medical areas
  • Railway and shipping construction
Temperature Range: -20 to +90°C static
-20 to +90°C flexible
Maximum Service Temperature: 90°C
Rated Voltage: 0.6/1kV
Relevant Standards: AS/NZS 1125, AS/NZS 3808, IEC 60332-1, IEC 60092-350
Maximum Bending Radius: For fixed installation 4 x cable diameter
For flexible installation 7.5 x cable diameter

The materials used in the manufacture of these cables are RoHS Compliant.

Properties

Resistant to:

  • High molecular oils
  • Animal and vegetable fats
  • Alcohols
  • Diluted acids
  • Low Smoke, Zero Halogen
Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

Cable Construction

  1. Conductor: Fine strands of plain electrolytic copper wire for improved flexibility. Class 5.
  2. Insulation: NBR Elastomer compound specially designed for resistance to migration and cold flexibility.
  3. Inner sheathing: PVC Silicate powder lubricant between cores and inner sheath to reduce friction.
  4. Braiding: Galvanised steel wires for screening and mechanical protection. Total coverage 80%.
  5. Outer sheathing: NBR Elastomer resistant to oil, petrol and chemicals as well as to abrasion.

UV stabilised and flame retardant.

Technical Data

Part Number Size mm² Nom. Stranding No./mm Nom. O.D. mm Approx. Cable Weight Kg/Km
SIHF2/1.0BN 2 x 1.0 32/0.20 6.6 76
SIHF3G0.75BN 3 x 0.75 24/0.20 6.8 76
SIHF3G1.0BN 3 x 1.0 32/0.20 7.4 93
SIHF3G1.5BN 3 x 1.5 30/0.25 8.0 117
SIHF3G2.5BN 3 x 2.5 50/0.25 9.7 179
SIHF4G0.75BN 4 x 0.75 24/0.20 7.8 101
SIHF4G1.0BN 4 x 1.0 32/0.20 8.1 113
SIHF4G1.5BN 4 x 1.5 30/0.25 8.8 145
SIHF4G2.5BN 4 x 2.5 50/0.25 10.6 222
SIHF4G4.0BN 4 x 4.0 56/0.30 13.2 346
SIHF4G6.0BN 4 x 6.0 84/0.30 15.6 497
SIHF5G1.0BN 5 x 1.0 32/0.20 8.8 136
SIHF5G1.5BN 5 x 1.5 30/0.25 9.6 175
SIHF5G2.5BN 5 x 2.5 50/0.25 11.6 268
SIHF7G0.75BN 7 x 0.75 24/0.20 9.2 148
SIHF7G1.5BN 7 x 1.5 30/0.25 10.4 220
SIHF12G1.5BN 12 x 1.5 30/0.25 14.6 413
SIHF19G1.5BN 19 x 1.5 30/0.25 17.0 591
