Multicore Screened XLPE/NBR Cable VSD 90°C 0.6/1kV

Multicore Screened XLPE/NBR Cable VSD 90°C 0.6/1kV

Typical Uses

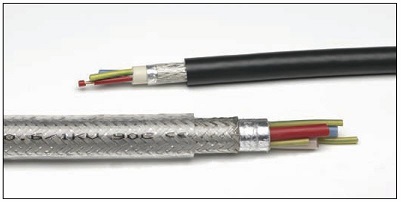

Aflex/EMV cables have been designed for connection of AC Variable speed drives and incorporates an aluminium/mylar tape plus a tinned copper braid screening.

6mm² and above have 3 split earth cores for optinum performance against low and high frequencies (RFI) and electromagnetic (EMI) so that RFI/EMI may not react with other devices outside the plant.

The materials used in the manufacture of these cables are RoHS Compliant.

Temperature Range: -30 to +90°C
Maximum Conductor Temperature: 90°C
Rated Voltage: 0.6/1kV
Current Rating: As per Table 14 of AS/NZS 3008
Sheath Colour: Black or Clear
Relevant Standards: AS 5000.1, IEC 60332-1, IEC 60228
Bending Radius: 8 times diameter after install, 12 times diameter during install

Core Colour

2&E Red, Black, Green/Yellow
3&E Red, White, Blue, Green/Yellow

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

Cable Construction

  1. Conductors:
    Conductors extra fine annealed copper wires. Class 5
  2. Insulation:
    XLPE 90°C
  3. Screening:
    Aluminium/Myler tape plus tinned copper braid.
    Minimum Braid Coverage 80%
    Aluminium/Mylar Coverage 100%
  4. Sheath:
    Black Sheath 90°C flexible NBR Elastomer. Clear sheath 90°C flexible PVC, all resistant to most oils,acids & solvents.

UV stabilised and flame retardant.

Technical Data

Part Number Power Cores mm² Earth Cores mm² N.O.D Under Sreeen Nom. O.D. mm Nom. Amps 40°C Spaced Approx. Cable Weight Kg/Km
HDXCY03/1.5BK 2 x 1.5 1 x 1.5 7.9 11.4 24 155
HDXCY03/2.5BK 2 x 2.5 1 x 2.5 8.7 12.2 34 195
HDXCY04/1.5BK 3 x 1.5 1 x 1.5 8.7 12.2 20 195
HDXCY04/2.5BK 3 x 2.5 1 x 2.5 9.8 13.3 28 245
HDXCY04/4.0BK 3 x 4 1 x 4 11.3 14.8 38 350
HDXCY04/6.0BK 3 x 6 3 x 1.5 13.9 17.6 48 445
HDXCY03/1.5CLR 2 x 1.5 1 x 1.5 7.9 11.4 24 155
HDXCY03/2.5CLR 2 x 2.5 1 x 2.5 8.7 12.2 34 195
HDXCY04/1.5CLR 3 x 1.5 1 x 1.5 8.7 12.2 20 195
HDXCY04/2.5CLR 3 x 2.5 1 x 2.5 9.6 13.3 28 245
HDXCY04/4.0CLR 3 x 4 1 x 4 11.3 14.8 38 350
HDXCY04/6.0CLR 3 x 6 3 x 1.5 14.1 17.8 48 445
HDXCY04/10CLR 3 x 10 3 x 1.5 15.0 18.9 66 675
HDXCY04/16CLR 3 x 16 3 x 2.5 17.0 21.5 88 955
HDXCY04/25CLR 3 x 25 3 x 4 21.8 26.3 119 1455
HDXCY04/35CLR 3 x 35 3 x 6 24.8 29.3 147 2200
