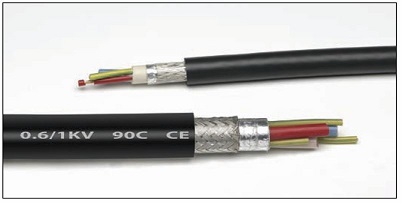

Aflex/EMV cables have been designed for connection of AC Variable speed drives and incorporates an aluminium/mylar tape plus a tinned copper braid & split earth cores for optimum screening performance of low and high frequencies (RFI) and electromagnetic (EMI) so that RFI/EMI may not react with other devices outside the plant.
Cables with EPR/CPE can all be used as submersible flexibles to 100Mts depth.
The materials used in the manufacture of these cables are RoHS Compliant.
3&E Red, White, Blue & Green/Yellow
4&E Red, White, Blue, Black, Green/Yellow
Need help choosing the right product?
Our team is here to help.
UV stabilised and flame retardant.
| Part Number | Power Cores mm² | Earth Cores mm² | N.O.D Under Sreeen | Nom. O.D. mm | Nom. Amps 40°C Spaced | Approx. Cable Weight Kg/Km |
|---|---|---|---|---|---|---|
| HDXCY04/10BK | 3 x 10 | 3 x 1.5 | 18.1 | 24.6 | 66 | 675 |
| HDXCY04/16BK | 3 x 16 | 3 x 2.5 | 20.4 | 26.2 | 88 | 955 |
| HDXCY04/25BK | 3 x 25 | 3 x 4 | 24.6 | 30.0 | 119 | 1455 |
| HDXCY04/35BK | 3 x 35 | 3 x 6 | 28.4 | 33.0 | 147 | 2200 |
| HDXCY04/50BK | 3 x 50 | 3 x 10 | 33.6 | 38.9 | 180 | 3210 |
| HDXCY04/70BK | 3 x 70 | 3 x 10 | 36.4 | 42.1 | 229 | 3950 |
| HDXCY04/95BK | 3 x 95 | 3 x 16 | 42.7 | 48.8 | 283 | 5126 |
| HDXCY04/120BK | 3 x 120 | 3 x 16 | 46.6 | 52.9 | 330 | 5925 |
| HDXCY04/150BK | 3 x 150 | 3 x 25 | 52.6 | 58.8 | 377 | 7146 |
| HDXCY04/185BK | 3 x 185 | 3 x 25 | 56.8 | 62.1 | 436 | 867.5 |
| HDXCY04/240BK | 3 x 240 | 3 x 35 | 63.7 | 71.1 | 511 | 10800 |
| HDXCY04/300BK | 3 x 300 | 3 x 35 | 70.4 | 79.6 | 591 | 11680 |
| HDXCY05/2.5BK | 4 x 2.5 | 1 x 2.5 | 10.5 | 20.0 | 28 | 533 |
| HDXCY05/4.0BK | 4 x 4 | 1 x 4 | 16.2 | 22.4 | 38 | 728 |
| HDXCY05/6.0BK | 4 x 6 | 1 x 6 | 17.8 | 24.0 | 48 | 952 |
| HDXCY05/10BK | 4 x 10 | 1 x 10 | 22.0 | 28.2 | 66 | 1670 |
